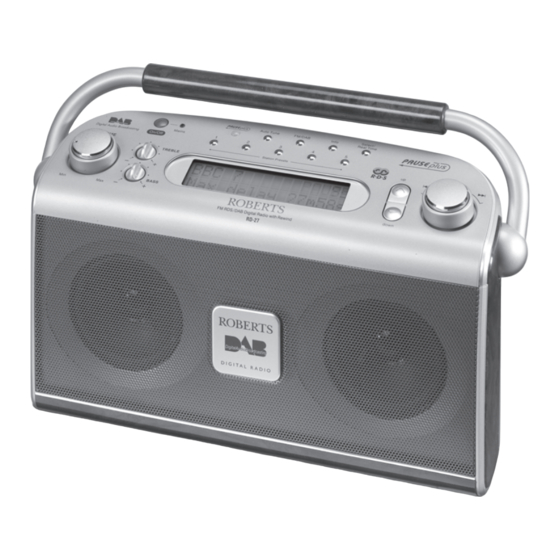

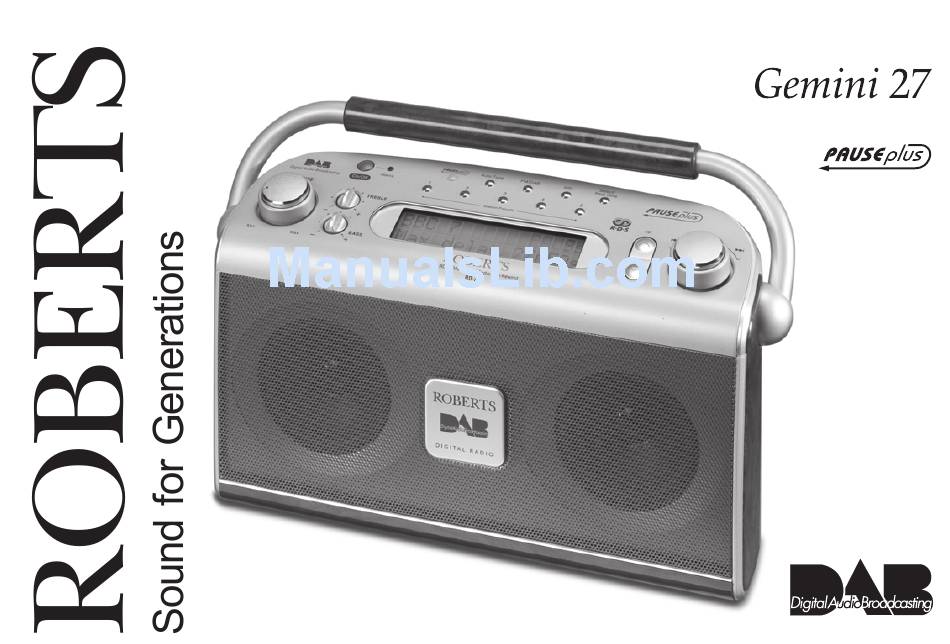

- Page 1 RD-27 FM RDS/DAB digital radio with Please read this manual before use...
-
Page 2: Table Of Contents
Contents Controls ................2 General ................18 Battery operation ..............3 Specifications ..............18 Mains operation ..............3 Circuit features ..............18 Operating your radio - DAB ..........4 Mains Supply ..............19 Selecting a station - DAB ..........5 Guarantee ................ -
Page 3: Controls
Controls (Top) 1. Telescopic aerial (on rear) 7. Line out socket (on rear) 13. Tuning up button 2. On/Off button 8. Auto Tune button 14. Tuning down button 3. Mains LED indicator 9. FM/DAB button 15. Liquid crystal display (LCD) 4. -
Page 4: Battery Operation
4. If the radio is not to be used for any extended period of time it is recommended that the batteries are removed from the radio. We would recommend for economy that the RD-27 is used on the mains whenever possible with battery operation for occasional or stand-by use only. -
Page 5: Operating Your Radio - Dab
Operating your radio - DAB 1. Carefully extend the telescopic aerial. 2. Press the On/Off button to switch on your radio. The display will show "Roberts DAB digital radio" for a few seconds. 3. If this is the first time the radio is used a quick scan of UK Band III DAB channels will be carried out. -
Page 6: Selecting A Station - Dab
Selecting a station - DAB 1. The top line of the display shows the name of the station currently selected. 2. Rotate the Tuning control or press the Up or Down buttons to scroll through the list of available stations. 3. -
Page 7: Secondary Services - Dab
Secondary services - DAB 1. Certain radio stations have one or more secondary services associ- ated with them. If a station has a secondary service associated with it the display will show ">" next to the station name on the station list. The secondary service will then appear immediately after the primary service as you turn the tuning control. -
Page 8: Finding New Stations - Dab
Finding new stations - DAB As time passes new stations may become available. To find new stations proceed as follows:- 1. Press and release the Auto Tune button, the display will show Autotune Quick scan. Your radio will perform a scan of the UK DAB frequencies. -
Page 9: Manual Tuning - Dab
Manual Tuning - DAB Manual tuning allows you to tune directly to the various Band III DAB channels. UK DAB stations are currently located in the range 11B to 12D. 1. Press and hold down the Select/real time button until the display shows Manual tune. -
Page 10: Using Your Radio's Pause Plus Feature
Using your radio's Pause Plus feature How many times has your favourite radio station been interrupted by that phone call from a double glazing firm or someone selling that must have item? Sound familiar? Now with a single press of the button you can put your favourite station on hold while you answer that important call. - Page 11 Pause Plus continued 1. As soon as you switch on your radio the feature is working silently in the background so, say for example, you want to hear a news item again press the twice and rotate the tuning control anti-clockwise to scroll back to the item you wish to listen.
-
Page 12: Operating Your Radio - Fm
Operating your radio - FM 1. Carefully extend the telescopic aerial. 2. Press the On/Off button to switch on your radio. The display will show "Roberts DAB digital radio" for a few seconds. 3. Press the FM/DAB button to select the FM band. 4. -
Page 13: Manual Tuning - Fm
Manual tuning - FM 1. Press the On/Off button to switch on your radio. 2. Press the FM/DAB button to select the FM band. Fully extend the Telescopic aerial. 3. Rotate the Tuning control or press the Up or Down buttons to tune to a station. -
Page 14: Display Modes - Fm
Display modes - FM On FM the bottom line of the display can be set to any of the following modes:- 1. Press the Info button to cycle through the various modes. a. Scrolling text Displays scrolling text messages such as artist/track name, phone in number etc. -
Page 15: Presetting Stations - Dab And Fm
Presetting stations - DAB and FM There are 5 memory presets for each of the 2 wavebands. 1. Press the On/Off button to switch on the radio. 2. Tune to the required station as previously described. 3. Press and hold down the required Preset button until the display shows e.g. -
Page 16: Recalling A Preset Station - Dab And Fm
Recalling a preset station - DAB and FM 1. Press the On/Off button to switch on the radio. 2. Select the required waveband by pressing the FM/DAB button. 3. Momentarily press the required Preset button, your radio will tune to the station stored in preset memory. -
Page 17: System Reset
System reset If your radio fails to operate correctly, or some digits on the display are missing or incomplete carry out the following procedure. 1. Switch off your radio 2. Switch on your radio - before the screen shows Roberts DAB digital radio, press and hold down the Select/real time button until the display shows System Reset. -
Page 18: Headphone Socket
Headphone socket A 3.5mm Headphone Socket located on the rear of your radio is provided for use with either headphones or an earpiece. Inserting a plug automatically mutes the internal loudspeaker. IMPORTANT: Excessive sound pressure from earphones and head- phones can cause hearing loss. Line out socket A 3.5mm Line out socket located on the rear of your radio is provided for connecting the audio signal to an external amplifier. -
Page 19: General
General • No objects filled with liquids such as vases, shall be placed on the radio. Do not allow this radio to be exposed to water, steam or sand. Do not • It is recommended to operate the product such that there is a minimum leave your radio where excessive heat could cause damage such as in distance (10cm recommended) to adjacent objects in order to a parked car where the heat from the sun can build up even though the... -
Page 20: Mains Supply
Mains supply The RD-27 will operate from a supply of AC 230 volts, 50Hz only. The wire coloured BLUE must be connected to the terminal marked N or coloured BLACK. DO NOT cut off the mains plug from this equipment. If the plug... -
Page 21: Guarantee
In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown on the rear of this manual. - Page 22 ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline :- 020 8758 0338 (Mon-Fri during office hours) Website: http://www.robertsradio.co.uk Issue 3...
