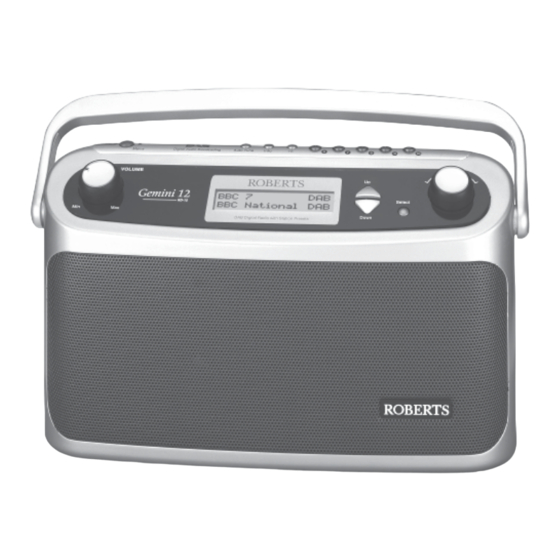

Controls (Top) 1. On/Off button 7. Telescopic aerial (on rear) 13. Tuning up button 2. Mains LED indicator 8. Line out socket (on rear) 14. Liquid crystal display (LCD) 3. Auto Tune button 9. Headphone socket (on end) 15. Volume control 4.
4. If the radio is not to be used for any extended period of time it is recommended that the batteries are removed from the radio. We would recommend for economy that the RD-12 is used on the mains whenever possible with battery operation for occasional or stand-by use only.
Operating your radio 1. Fully extend the telescopic aerial 2. Press the On/Off button to switch on your radio. The display will show "Roberts DAB digital radio" for a few seconds. 3. If this is the first time the radio is used a quick scan of UK Band III DAB channels will be carried out.
Selecting a station 1. The top line of the display shows the name of the station currently selected. 2. Rotate the Tuning control or press the Up or Down buttons to scroll through the list of available stations. 3. Press and release the Select button to select the station. The display may show "Tuning"...
Secondary services 1. Certain radio stations have one or more secondary services asso- ciated with them. If a station has a secondary service associated with it the display will show ">" next to the station name on the station list. The secondary service will then appear immediately after the primary service as you turn the tuning control.
Finding new stations As time passes new stations may become available. To find new stations proceed as follows:- 1. Press and release the Auto Tune button, the display will show Autotune Quick scan. Your radio will perform a scan of the UK DAB frequencies.
Manual Tuning Manual tuning allows you to tune directly to the various Band III DAB channels. UK DAB stations are currently located in the range 11B to 12D. 1. Press and hold down the Select button until the display shows Manual tune.
Presetting stations There are 10 memory presets. 1. Press the On/Off button switch on the radio. 2. Tune to the required station as previously described. 3. Press and hold down the required Preset button until the display shows e.g. Preset 1 stored. The station will be stored under the chosen preset button.
Recalling a preset station 1. Press the On/Off button to switch on the radio.. 2. Momentarily press the required Preset button, your radio will tune to the station stored in preset memory. 3. Presets 6 to 10 are obtained by pressing +5 and Preset button 1 to 5.
System reset If your radio fails to operate correctly, or some digits on the display are missing or incomplete carry out the following procedure. 1. Switch off your radio 2. Switch on your radio - as soon as the screen shows Roberts DAB digital radio press and hold down the Select button until the display shows System Reset.
Headphone socket A 3.5mm Headphone Socket located on the right-hand end of you radio is provided for use with either headphones or an earpiece. Inserting a plug automatically mutes the internal loudspeaker. Line out socket A 3.5mm Line out socket located on the rear of you radio is provided for connecting the audio signal to an external amplifier.
General Do not allow this radio to be exposed to water, steam or sand. Do not leave your radio where excessive heat could cause damage such as in a parked car where the heat from the sun can build up even though the outside temperature may not seem too high.
Mains supply The RD-12 will operate from a supply of AC 230 volts, 50Hz only. The wire coloured BLUE must be connected to the terminal marked N or coloured BLACK. DO NOT cut off the mains plug from this equipment. If the plug...
In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown below. ROBERTS RADIO TECHNICAL SERVICES...
