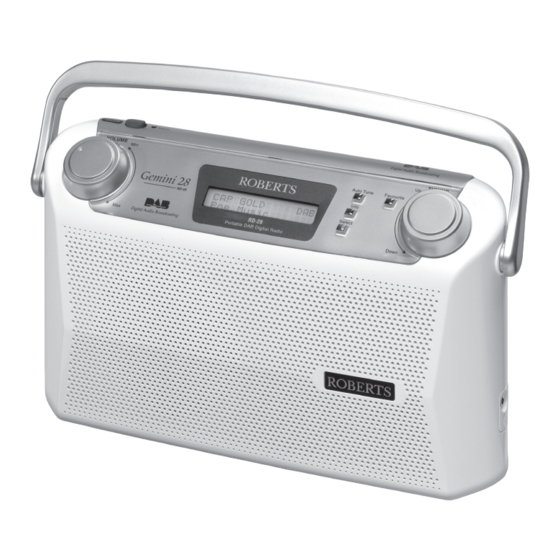

Roberts Gemini 28 RD-28 User Manual

Roberts Gemini 28 RD-28 User Manual

Roberts radio dab digital radio user manual

Advertisement

RD-28
DAB digital radio
Please read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gemini 28 RD-28 and is the answer not in the manual?

Questions and answers

Summary of Contents for Roberts Gemini 28 RD-28

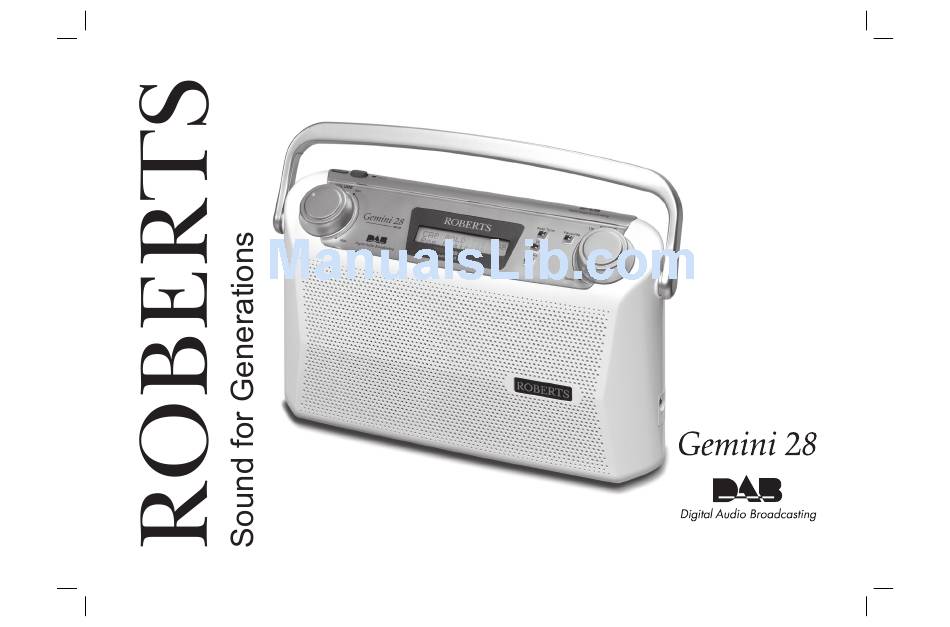

  • Page 1 RD-28 DAB digital radio Please read this manual before use...
  • Page 2: Table Of Contents

    Contents Controls ...2 Battery operation ...3 Mains operation ...3 Operating your radio ...4 Selecting a station ...5 Secondary services ...6 Display modes ...6 Finding new stations ...7 Autoselect ...7 Manual tuning ...8 Signal strength display ...8 Favourite button ...9 Recalling your favourite station ...9 System reset ...10...
  • Page 3: Controls

    Controls (Top) 1. On/Off button 2. Mains LED indicator 3. Line out socket (on rear) 4. Telescopic aerial (on rear) 5. Headphone socket (on end) 6. Tuning control If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) 7.
  • Page 4: Battery Operation

    3. Reduced power, distortion and a ‘stuttering’ sound are all signs that the batteries may need replacing. 4. If the radio is not to be used for any extended period of time it is recommended that the batteries are removed from the radio.
  • Page 5: Operating Your Radio

    2. Press the On/Off button to switch on your radio. The display will show Roberts DAB digital radio for a few seconds. 3. If this is the fi rst time the radio is used a quick scan of UK Band III DAB channels will be carried out. The display will show Autotune Quick scan.
  • Page 6: Selecting A Station

    Tuning while your radio fi nds the new station. 4. Adjust the Volume control to the required setting. Note: If after selecting a station the display shows Not Available it may be necessary to relocate your radio to a position giving better reception.
  • Page 7: Secondary Services

    Secondary services 1. Certain radio stations have one or more secondary services associ- ated with them. If a station has a secondary service associated with it the display will show > next to the station name on the station list.
  • Page 8: Finding New Stations

    1. Press and release the Auto Tune button, the display will show Autotune Quick scan. Your radio will perform a scan of the UK DAB frequencies. As new stations are found the station counter on the right-hand side of the display will increase and stations will be added to the list.
  • Page 9: Manual Tuning

    1. Repeatedly press and release the Info button until the lower line of the display shows signal strength. 2. Position your radio and angle the telescopic aerial for best reception using the signal strength display as a guide. Move your radio around and position so as to give maximum number of black rectangles on signal strength display.
  • Page 10: Favourite Button

    Favourite button Your radio is fi tted with a button which when pressed will automatically tune to your favourite station. This will allow you to store a total of one station from the DAB waveband. 1. To setup your favourite station, tune into the required station.
  • Page 11: System Reset

    System reset If your radio fails to operate correctly, or some digits on the display are missing or incomplete carry out the following procedure. 1. Switch off your radio 2. Switch on your radio - before the screen shows Roberts DAB digital radio press and hold down the Select button until the display shows System Reset.
  • Page 12: Headphone Socket

    Line out socket A 3.5mm Line out socket located on the rear of your radio is provided for connecting the audio signal to an external amplifi er. Inserting a line out audio cable will not mute the internal loudspeaker. Set the volume control to minimum if desired.
  • Page 13: General

    General Do not allow this radio to be exposed to dripping or splashing water, steam or sand. Do not leave your radio where excessive heat could cause damage such as in a parked car where the heat from the sun can build up even though the outside temperature may not seem too high.
  • Page 14: Mains Supply

    When replacing the fuse only a 3A ASTA approved to BS1362 type should be used and be sure to re-fi t the fuse cover. IF IN DOUBT - CONSULT A QUALIFIED ELECTRICIAN. Replacement fuse holders are available from Roberts Radio Technical Services at the address shown on the rear of this manual.
  • Page 15: Guarantee

    In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown on the rear of this manual.
  • Page 16 ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline :- 020 8758 0338 (Mon-Fri during offi ce hours) Website: http://www.robertsradio.co.uk Issue 2...
