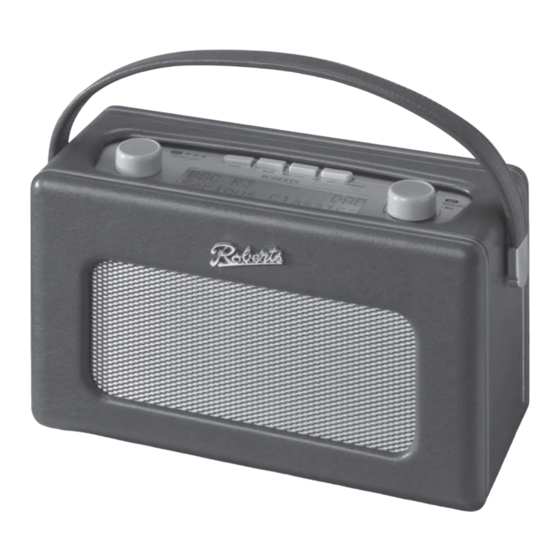

Roberts RD-10 Manual

Fm rds/dab digital radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

RD-10
FM RDS/DAB digital radio
Please read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roberts RD-10

Summary of Contents for Roberts RD-10

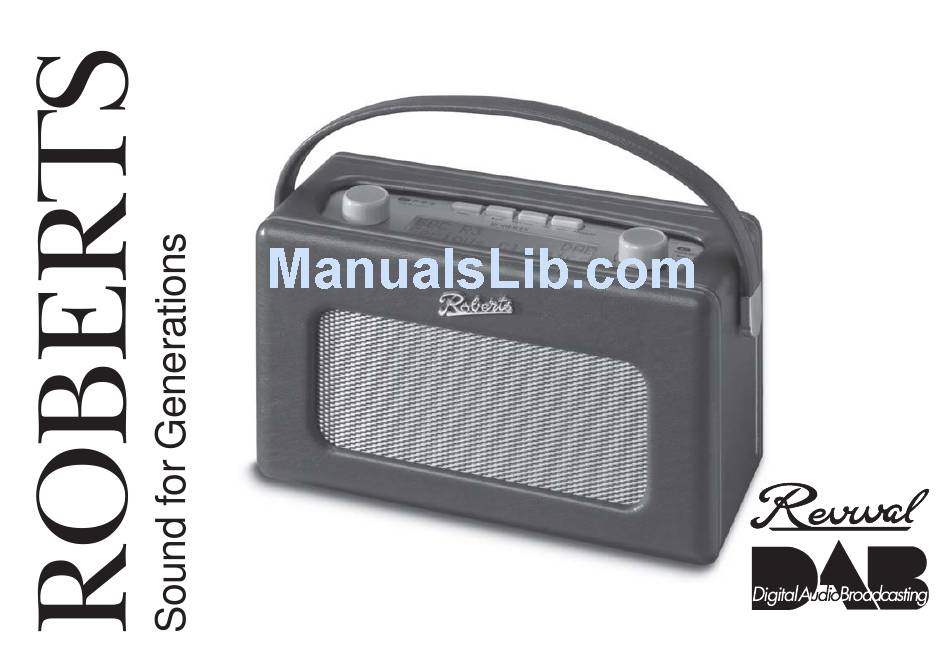

  • Page 1 RD-10 FM RDS/DAB digital radio Please read this manual before use...

  • Page 2: Table Of Contents

    Contents Controls ................2-3 Guarantee ................ 18 Battery operation ............... 4 Mains operation ..............4 Operating your radio - DAB ..........5 Selecting a station - DAB ..........6 Secondary services - DAB ..........7 Display modes - DAB ............7 Finding new stations - DAB ..........

  • Page 3: Controls

    Controls (Top) 1. Volume control 6. Info button 2. Headphone socket 7. Telescopic aerial 3. Power button 8. Tuning control 4. FM/DAB button 9. LCD display 5. Auto Tune button If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)
  • Page 4 Controls (Rear) 10. DC in socket 11. Line output socket...

  • Page 5: Battery Operation

    4. If the radio is not to be used for any extended period of time it is recommended that the batteries are removed from the radio. We would recommend for economy that the RD-10 is used via the AC adaptor whenever possible with battery operation for occasional or stand-by use only.

  • Page 6: Operating Your Radio - Dab

    Operating your radio - DAB 1. Carefully extend the telescopic aerial. 2. Press the On/Off button to switch on your radio. The display will show "Roberts DAB digital radio" for a few seconds. 3. If this is the first time the radio is used a quick scan of UK Band III DAB channels will be carried out.

  • Page 7: Selecting A Station - Dab

    Selecting a station - DAB 1. The top line of the display shows the name of the station currently selected. 2. Rotate the Tuning control to scroll through the list of available stations. Stop rotating the Tuning control when you find the station that you wish to hear.

  • Page 8: Secondary Services - Dab

    Secondary services - DAB 1. Certain radio stations have one or more secondary services associated with them. If a station has a secondary service associated with it the display will show ">" next to the station name on the station list. The secondary service will then appear immediately after the primary service as you rotate the tuning control clockwise.

  • Page 9: Finding New Stations - Dab

    Finding new stations - DAB As time passes new stations may become available. To find new stations proceed as follows:- 1. Press and release the AutoTune button, the display will show "Autotune Quick Scan". Your radio will perform a scan of the UK DAB frequencies.

  • Page 10: Manual Tuning - Dab

    Manual Tuning - DAB Manual tuning allows you to tune directly to the various DAB Band III channels. UK DAB stations located in the range 11B to 12D. 1. Press and hold in the Tuning control until the display shows "Manual tune".

  • Page 11: Operating Your Radio - Fm

    Operating your radio - FM 1. Carefully extend the telescopic aerial. 2. Press the On/Off button to switch on your radio. The display will show "Roberts DAB digital radio" for a few seconds. 3. Press the Band button to select the FM band. 4.

  • Page 12: Manual Tuning - Fm

    Manual tuning - FM 1. Press the On/Off button to switch on your radio. 2. Press the Band button to select the FM band. Fully extend the Telescopic aerial . 3. Rotate the Tuning control to tune to a station. The frequency will change in steps of 50kHz.

  • Page 13: Display Modes - Fm

    Display modes - FM On FM the bottom line of the display can be set to any of the following modes:- 1. Press the Info button to cycle through the various modes. a. Scrolling text Displays scrolling text messages such as artist/track name, phone in number etc.

  • Page 14: System Reset

    System reset If your radio fails to operate correctly, or some digits on the display are missing or incomplete carry out the following procedure. 1. Switch off your radio. 2. Switch on your radio - as soon as the screen shows "Roberts DAB digital radio"...

  • Page 15: Headphone Socket

    Headphone socket A 3.5mm Headphone Socket located on the top left hand corner of your radio is provided for use with either headphones or an earpiece. Inserting a plug automatically mutes the internal loudspeaker. Display backlight 1. The display backlight will be switched on for approximately 12 seconds when any button is pressed.

  • Page 16: General

    General Do not allow this radio to be exposed to water, steam or sand. Do not leave your radio where excessive heat could cause damage such as in a parked car where the heat from the sun can build up even though the outside temperature may not seem too high.

  • Page 17: Notes

    Notes If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)
  • Page 18 Notes...
  • Page 19 In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown on the rear of this manual.
  • Page 20 ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline :- 020 8758 0338 (Mon-Fri during office hours) Issue 1...
