CRD-9
FM RDS/DAB digital clock radio
Please read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRD-9 and is the answer not in the manual?

Questions and answers

Dominic brown
June 18, 2025

How to retune Gemini 9 bad radio

0

Related Manuals for Roberts CRD-9

Summary of Contents for Roberts CRD-9

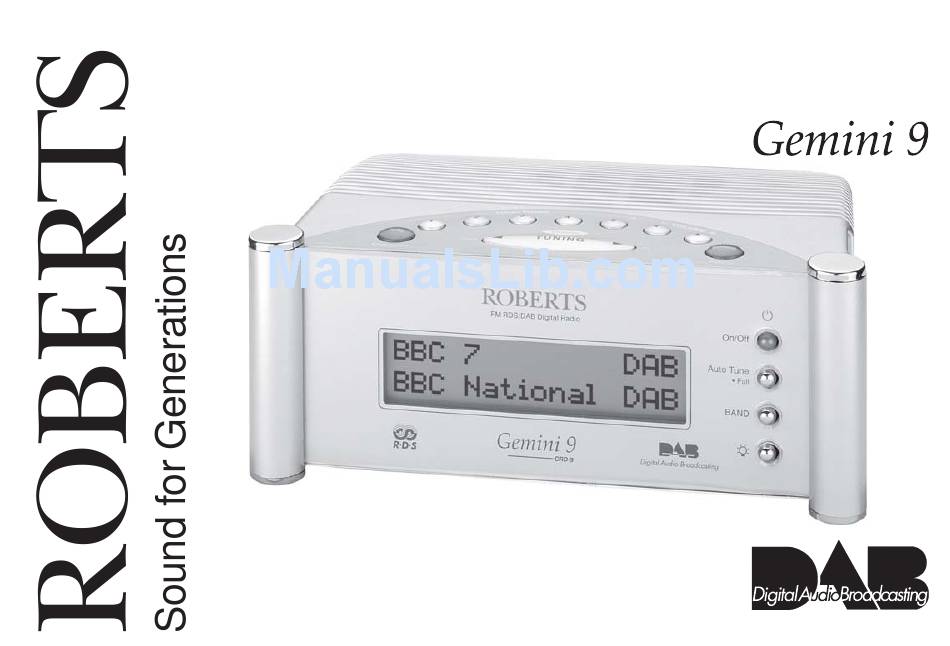

  • Page 1 CRD-9 FM RDS/DAB digital clock radio Please read this manual before use...

  • Page 2: Table Of Contents

    Contents Controls ................2-3 Sleep timer ..............18 Battery operation ............... 4 Headphone socket ............19 Mains operation ..............4 Display backlight ............. 19 Operating your radio - DAB ..........5 Aerials ................20 Selecting a station - DAB ..........6 Specifications ..............

  • Page 3: Controls

    Controls (Front) 1. StandBy button 2. Autotune button 3. Waveband button 4. Light button If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)
  • Page 4 Controls (Top) 5. Telescopic aerial 6. Headphone socket 7. Select button 8. Volume up/down buttons 9. Tuning up/down buttons 10. Preset buttons 11. Info button...

  • Page 5: Battery Operation

    Mains operation 1. Place the unit on a flat surface. Plug the mains lead into a wall socket and switch on the wall socket. 2. The display will show "Roberts DAB digital radio" for a few seconds before returning to clock display. 3.

  • Page 6: Operating Your Radio - Dab

    Operating your radio - DAB 1. Fully extend the telescopic aerial. 2. Press the StandBy button to switch on your radio. 3. If this is the first time the radio is used a quick scan of UK Band III DAB channels will be carried out. The display will show "Autotune Quick scan".

  • Page 7: Selecting A Station - Dab

    Selecting a station - DAB 1. The top line of the display shows the name of the station currently selected. 2. Press the Tuning up or down buttons to step through the list of available stations. 3. Press and release the Select button to select the station. The display may show "Tuning"...

  • Page 8: Secondary Services - Dab

    Secondary services - DAB 1. Certain radio stations have one or more secondary services associated with them. If a station has a secondary service associated with it the display will show ">" next to the station name on the station list.

  • Page 9: Finding New Stations - Dab

    Finding new stations - DAB As time passes new stations may become available. To find new stations proceed as follows:- 1. Press and release the AutoTune button, the display will show "Autotune Quick Scan". Your radio will perform a scan of the UK DAB frequencies.

  • Page 10: Manual Tuning - Dab

    Manual Tuning - DAB Manual tuning allows you to tune directly to the various DAB Band III channels. UK DAB stations located in the range 11B to 12D. 1. Press and hold in the Select button until the display shows "Manual tune".

  • Page 11: Operating Your Radio - Fm

    Operating your radio - FM 1. Fully extend the telescopic aerial. 2. Press the StandBy button to switch on your radio. The display will show "Roberts DAB digital radio" for a few seconds. 3. Press the Band button to select the FM band. 4.

  • Page 12: Manual Tuning - Fm

    Manual tuning - FM 1. Press the StandBy button to switch on your radio. 2. Press the FM/DAB button to select the FM band. Fully extend the Telescopic aerial . 3. Press the Tuning up or down buttons to tune to a station. The frequency will change in steps of 50kHz.

  • Page 13: Display Modes - Fm

    Display modes - FM On FM the bottom line of the display can be set to any of the following modes:- 1. Press the Info button to cycle through the various modes. a. Scrolling text Displays scrolling text messages such as artist/track name, phone in number etc.

  • Page 14: Presetting Stations - Fm

    Presetting stations - DAB and FM There are 5 memory presets for each of the 2 wavebands. 1. Press the StandBy button switch on the radio. 2. Tune to the required station as previously described. 3. Press and hold down the required Preset button until the display shows e.g.

  • Page 15: System Reset

    System reset f your radio fails to operate correctly, or some digits on the display are missing or incomplete carry out the following procedure. 1. Press and hold in the Info button until the display shows the software version. 2. Press the Info button twice the display will show System reset. 3.

  • Page 16: Setting The Alarm Time

    Setting the alarm time 1. Repeatedly press and release the Info button until the display shows Alarm Status. 2. Press the Select button the display will show Alarm Time Set. The minutes digits will begin to flash in the display. Set the required minute using the Tuning Up/Down buttons.

  • Page 17: Selecting Alarm Type

    Selecting alarm type Your clock radio can be set so as to wake you to either radio or beep type alarm. 1. Repeatedly press and release the Info button until the display shows Alarm Status. 2. Press either the Tuning Up or Down buttons to enter alarm type setting.

  • Page 18: Cancelling Alarms

    Cancelling alarms 1. Whilst an alarm is sounding it can be cancelled for 24hours by pressing the Standby button. 2. To permanently cancel an alarm proceed as follows:- 3. Repeatedly press and release the Info button until the display shows Alarm Status. 4.

  • Page 19: Sleep Timer

    Sleep timer The sleep timer can only be set when the power (Standby) is on. 1. Repeatedly press and release the Info button until the display shows Sleep Status. Press the Select button to select Sleep On. 3. Select the required sleep time (1- 99 minutes) using the Tuning Up or Down buttons.

  • Page 20: Headphone Socket

    Headphone socket A 3.5mm Headphone Socket located on the right-hand end of your radio is provided for use with either headphones or an earpiece. Inserting a plug automatically mutes the internal loudspeaker. Display backlight 1. The display backlight has eight levels including off and can be set by repeatedly pressing and releasing the Light button.

  • Page 21: Aerials

    Aerials As supplied your clock radio is fitted with a telescopic aerial. Should this prove inconvenient a separate wire aerial can be fitted in place of the telescopic aerial. A spanner is provided to allow removal of the telescopic aerial. The wire aerial can then be plugged in place of the telescopic aerial.

  • Page 22: General

    IF IN DOUBT - CONSULT A QUALIFIED ELECTRICIAN. obtained than on the FM band. Mains supply The CRD-9 will operate from a supply of AC 230volts, 50Hz only. For your convenience this product is supplied with a plug which is fitted with a fuse of the appropriate rating.

  • Page 23: Guarantee

    In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown on the rear of this manual.
  • Page 24 ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline :- 020 8758 0338 (Mon-Fri during office hours) Issue 1...
