Roberts CRD-26 Manual

Dab digital clock radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

CRD-26
DAB digital clock radio
Please read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRD-26 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roberts CRD-26

Summary of Contents for Roberts CRD-26

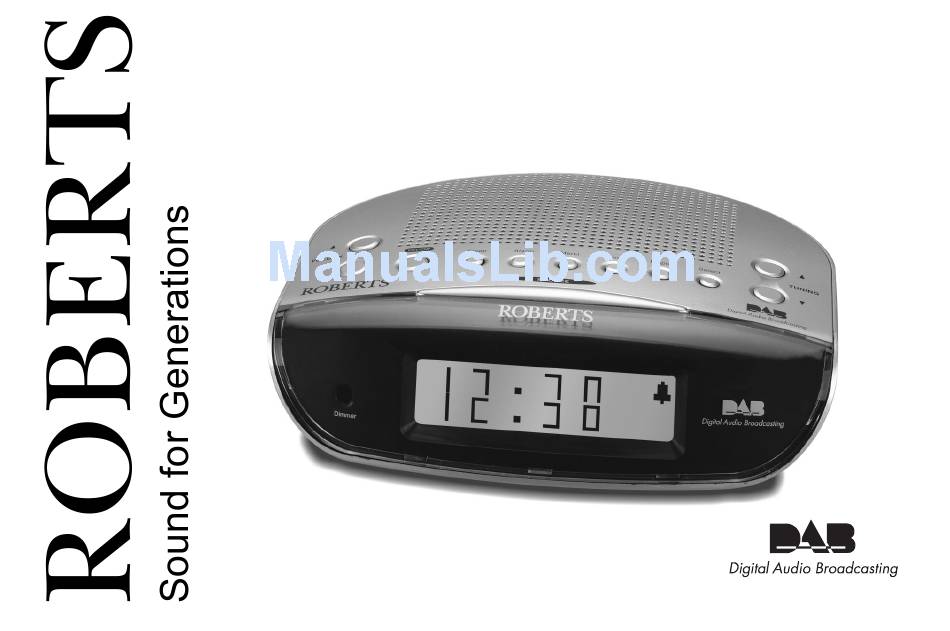

  • Page 1 CRD-26 DAB digital clock radio Please read this manual before use...

  • Page 2: Table Of Contents

    Contents Controls ................2-3 Alphanumeric station order ..........17 Using the clock radio for the fi rst time .........4 Active station order ............18 Operating your clock radio ..........5 Trim stations ..............18 Selecting a station ...............6 Transfer favourites to presets ..........18 Secondary services .............6 Dynamic range control (DRC) settings ......19 Display modes ..............7 System reset ..............20...

  • Page 3: Controls

    Controls (Top) 1. Volume Up button 5. Alarm button 9. Display button 2. Volume Down button 6. Snooze button 10. Select button 3. On/off button 7. Menu button 11. Tuning Down button 4. Sleep button 8. Preset button 12. Tuning Up button If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)
  • Page 4 Controls (Front) 13. Auto Dimmer 14. LCD display Controls (Rear) 15. DAB wire aerial 16. Line out socket 17. Headphone socket 18. DC jack socket...

  • Page 5: Using The Clock Radio For The Fi Rst Time

    Using the clock radio for the fi rst time Your clock radio is supplied with a Mains Adaptor. 1. Place your clock radio on a fl at surface. 2. Insert the adaptor plug into the DC socket located on the rear of your clock radio.

  • Page 6: Operating Your Clock Radio

    Operating your clock radio 1. Press the On/off button to switch on your clock radio. The display will show "Now tuning" for a few seconds. 2. If the clock radio has been used before, the last used station will be selected.

  • Page 7: Selecting A Station

    Selecting a station 1. The top line of the display shows the name of the station currently selected. 2. Press the Tuning up or down buttons to step through the list of available stations. 3. Press and release the Select button to select the station. The display may show "Now tuning"...

  • Page 8: Display Modes

    Display modes Your radio has seven display modes:- 1. Press the Display button to cycle through the various modes. a. Scrolling text Displays scrolling text messages such as artist/track name, phone in number, etc. b. Programme type Displays type of station being listened to e.g.

  • Page 9: Finding New Stations

    Finding new stations As time passes new stations may become available. To fi nd new stations proceed as follows:- 1. Press and release the Menu button and press the Tuning up or down buttons until "Autoscan UK" shows on the display. 2.

  • Page 10: Manual Tuning

    Manual Tuning Manual tuning allows you to tune and add the various DAB Band III channels to your station list. UK DAB stations located in the range 11B to 12D. This function can be used to assist the positioning of the an- tenna or your clock radio to obtain the optimum reception for a specifi...

  • Page 11: Presetting Stations

    Presetting stations There are 10 memory presets available. 1. Press the On/off button to switch on the clock radio. 2. Tune to the required station as previously described. 3. Press the Preset button, the display will show "Empty preset 1" if there are no presets stored.

  • Page 12: Recalling A Preset Station

    Recalling a preset station 1. Press the On/off button to switch on the radio. 2. Press the Preset button. 3. Use the Tuning up or down buttons to select the desired preset number and press the Select button. Your clock radio will tune to the station stored in the preset memory.
  • Page 13 4. Press the Tuning up or down buttons to select the desired alarm 1-4. 5. Press the Select button to enter the alarm hour. The display will show the current time in 24 hour format. The hour digit will be selected. Note: Alarm times are set using 24Hr format e.g.
  • Page 14 11. If selecting the alarm to once you will need to set the year, month and day options as described below. 12. Press the Select button to enter the alarm year option. 12,14 13. Press the Tuning up or down buttons to select the correct year. 14.

  • Page 15: Switch Alarm On Or Off

    Switching alarm/s on or off 1. To activate the alarm/s press the Alarm button and enter the alarm setup menu. The display will show "Set alarm". 2. Press the Tuning up or down buttons until "alarm On/off" shows on the display. 3.

  • Page 16: Cancelling Alarms

    Cancelling alarms Whilst an alarm is sounding it can be cancelled for 24 hours by pressing the Alarm button. Snooze function When the radio or beep alarm sounds, pressing the Snooze button will silence the alarm for the selected number of minutes. The Snooze setting can be adjusted between 5 and 20 minutes in 5 minute increments.

  • Page 17: Sleep Function

    Sleep function Your clock radio can be set to turn off after a preset time has elapsed. The sleep setting can be adjusted between 5 and 90 minutes in 5 minute increments. 1. To set the sleep to the desired sleep time, press the Sleep button to enter the sleep setup.

  • Page 18: Station Order

    Station order This function enables you to choose how the stations are arranged when selecting a station. There are 5 options available favourite station, alpha- numeric, active stations, trim stations and preset stations. Note: Your clock radio default station order is numeric-alpha order. 1.

  • Page 19: Active Station Order

    Active station When this setting is switched on the display will show only those that a signal can be found for. Trim stations Some DAB services may stop broadcasting or you may not be able to receive a station. Trim stations will delete the DAB stations from your station list that can no longer be received.

  • Page 20: Dynamic Range Control (Drc) Settings

    Dynamic Range Control (DRC) settings DRC can make quieter sounds easier to hear when your radio is used in a noisy environment. 1. Press the On/Off button to switch on your clock radio. 2. Press the Menu button to enter the menu setup. 3.

  • Page 21: System Reset

    System reset If your radio fails to operate correctly, or some digits on the display are missing or incomplete carry out the following procedure. 1. Press and hold in the Menu button until the display shows "Press SELECT to confi rm reset..." 2.

  • Page 22: Clock Display

    Clock display When in Standby your clock radio has two display modes, time or time and date combined. 1. If your clock radio is switched on, press the On/off button to switch your clock radio to the standby mode. 2. To toggle between the two display modes press the Display button.

  • Page 23: Headphone Socket

    Headphone socket A 3.5mm Headphone Socket located on the rear of your clock radio is provided for use with either headphones or an earpiece. Inserting a plug automatically mutes the internal loudspeaker. Line out socket A 3.5mm Line out socket located on the rear of your clock radio is pro- vided for connecting the audio signal to an external amplifi...

  • Page 24: Specifi Cations

    Specifi cations Circuit Features Power Requirements Loudspeaker 1 x 66mm AC Adaptor AC 230 volts, 50Hz only Output Power 1W into 8 ohms Frequency Coverage 174.928 - 239.200MHz Headphone socket 3.5mm dia Line out socket 3.5mm dia Aerial System Wire aerial The Company reserves the right to amend the specifi...

  • Page 25: General

    General Do not allow this clock radio to be exposed to water, steam or sand. Do not leave your radio where excessive heat could cause damage such as in a parked car where the heat from the sun can build up even though the outside temperature may not seem too high.

  • Page 26: Notes

    Notes...

  • Page 27: Guarantee

    In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown on the rear of this manual.
  • Page 28 ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline :- 020 8758 0338 (Mon-Fri during offi ce hours) Issue 1 Website: http://www.robertsradio.co.uk...

Table of Contents
