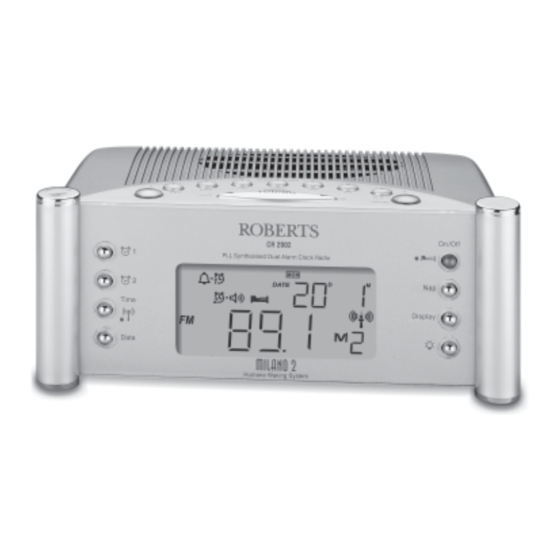

Roberts CR2002 User Manual

Roberts CR2002 User Manual

3 band auto set pll synthesised clock radio

Advertisement

CR2002
3 band Auto set PLL
Synthesised Clock Radio
Please read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR2002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Roberts CR2002

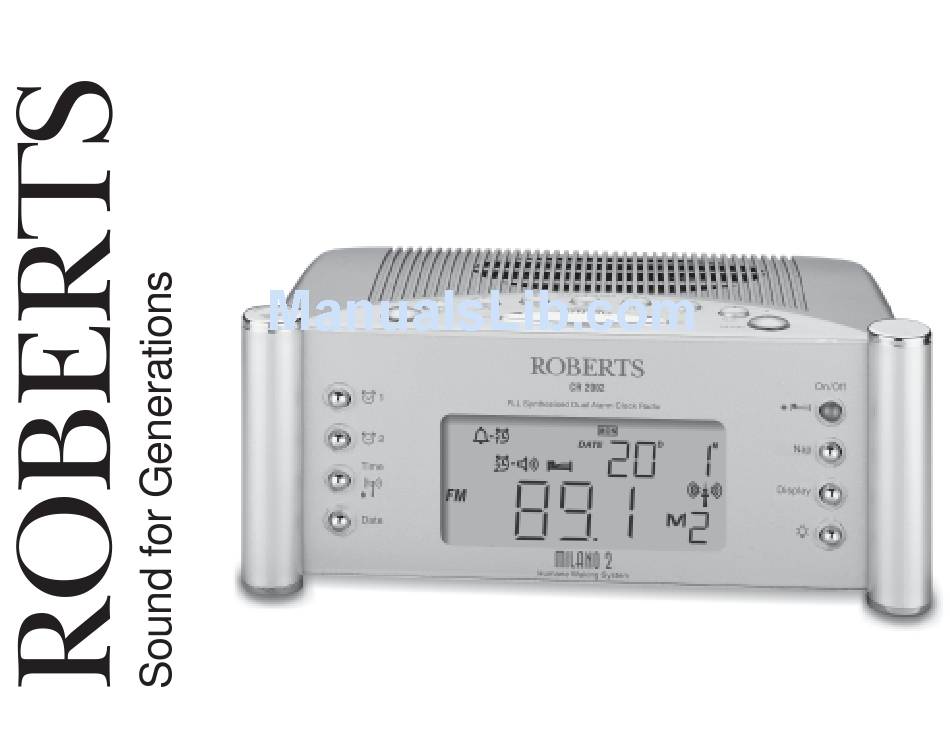

  • Page 1 CR2002 3 band Auto set PLL Synthesised Clock Radio Please read this manual before use...
  • Page 2: Table Of Contents

    Contents Controls ...2-4 Display ... 5 Automatic clock setting ... 6 MSF radio signal ... 7 Manual clock setting ... 8 Setting the date ... 9 Operating the radio ... 10 Scan tuning ... 10 Manual tuning ... 11 Presetting stations ... 12 Recalling a preset station ...
  • Page 3 Controls (Top) If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) 1. Time/Date and Alarm set button 2. Preset memories and Alarm days buttons 3. Tuning Up/Down and Snooze button 4. Waveband and Alarm mode button 5.
  • Page 4 Controls (Front) 6. Date button 7. Time button 8. Alarm 2 button 9. Alarm 1 button 10. Headphone socket (on end) 11. Volume control (on end) 12. On/Off and sleep button 13. Nap button 14. Display button 15. Light button 16.
  • Page 5: Controls

    Controls (Base) If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) 15. Time zone switch 16. Reset button 17. Alarm sound level control (buzzer alarm only)
  • Page 6: Display

    Display A. Waveband and clock AM/PM display B. Time set indicator C. Summer time indicator D. Alarm indicators E. Sleep indicator F. Nap indicator G. Date indicator H. Day of week indicators I. Month, date, year and alarm time indicators J.
  • Page 7: Automatic Clock Setting

    The MSF signal level will also be shown in the display. 2. If the display shows less than L: 7 rotate your clock radio so as to improve reception (L: 9 is strongest signal) 3. If the signal reception still cannot be improved it may be necessary to remove the Time capsule located on the rear of you clock radio and place in a position of more favourable reception.
  • Page 8: Msf Radio Signal

    Recorded information on transmitter status can be obtained on 020 8943 6493. Your clock radio will need to be set manually if the transmitter is closed down when your clock radio is first connected to the mains. At all other times if the transmitter closes down your clock radio will continue to run on its own highly accurate internal quartz crystal time base.
  • Page 9: Manual Clock Setting

    Manual clock setting (only if automatic setting fails) 1. Press the Time button, display will flash 2. Press the Set button, the hour digits will flash in the display. 3. Press the up or down button to adjust the hours. The LCD clock uses a 12 hour display with a AM/PM indicators.
  • Page 10: Setting The Date

    Setting the date (only if automatic setting fails) 1. Press the Date button, DATE will flash in the LCD display. 2. Press the Set button, Year will flash in the LCD display. 3. Press the up or down button to adjust the year. 4.
  • Page 11: Operating The Radio

    2. Select the required waveband by repeatedly pressing the Band button. On the FM waveband fully extend the Wire aerial located on the rear of your clock radio - for MW and LW rotate your clock radio for best reception.
  • Page 12: Manual Tuning

    2. Select the required waveband by repeatedly pressing the Band button. On the FM waveband fully extend the Wire aerial located on the rear of your clock radio - for MW and LW rotate your clock radio for best reception.
  • Page 13: Presetting Stations

    Presetting stations There are 7 memory presets for each of the 3 wavebands. 1. Press the On/Off button to switch on the radio. 2. Tune to the required station using one of the methods previously described. 3. Press and hold down the required Preset button until the radio beeps (greater than 2 seconds) The preset number will appear in the display and the station will be stored under the chosen preset button.
  • Page 14: Recalling A Preset Station

    Recalling a preset station 1. Press the On/Off button to turn on the radio. 2. Select the required waveband by repeatedly pressing the Band button. 3. Momentarily press the required Preset button, the preset number and station frequency will appear in the display.
  • Page 15: Alarms

    Alarms Your clock radio is equipped with two alarms which can be operated independently of each other. Each of the alarms can be set so that you wake to either the radio or buzzer alarms. The alarms can be set with the radio switched On or Off.
  • Page 16 Press and hold down the Alarm 1 or Alarm 2 buttons until a beep sound is heard. 10. Press the On/Off button to switch off the radio. 11. Your clock radio will switch on at the preset alarm time tuned to the station selected in step 9.
  • Page 17: Setting Alarms To Wake To Buzzer

    Setting alarms to wake to buzzer A beep tone will sound when using the buzzer alarm. The alarm beep will increase in volume every 15 seconds for one minute followed by one minutes silence before repeating the cycle. The buzzer alarm will sound for one hour unless turned off by pressing the On/Off button.
  • Page 18: Snooze Function

    Setting alarms to wake to buzzer (continued) 6. Press the Day of week buttons to select required days of week on which the alarm will sound. Display will shows day of week on which alarm will sound e.g. 7. Repeatedly press and release Mode button until the buzzer alarm symbol appears in the display.
  • Page 19: Cancelling Alarms

    1. With the aid of a small screwdriver the alarm sound level on both radio and buzzer alarms can be adjusted using the Alarm sound level control located on the underside of your clock radio. Nap timer 1. The Nap timer is a short term alarm which can be set for a delay of 10-120 minutes in 10 minute steps.
  • Page 20: Sleep Timer

    Sleep timer The sleep timer will automatically switch off your clock radio after a preset time has elapsed. The sleep time is adjustable from 15-120 minutes in 15 minute steps. 1. Press and continue to hold down the will cycle through the available sleep times. Release the button when the required sleep time appears in the display.
  • Page 21: Time Zone Switch

    The Time zone switch is used to provide offsets of -1 to + 2 hours relative to GMT (UTC). This facility would only be used if your clock radio is used in another country that is within range of the UK time signal transmitter e.g. France where the time is GMT (UTC) +1.
  • Page 22: Troubleshooting

    1. If the time does not set automatically it may be necessary to rotate your clock radio to a position giving better reception of the MSF signal. 2. It is recommended that your clock radio is placed as far away as possible from any sources of interference such as computers or televisions, etc.
  • Page 23: Mains Supply

    MW or LW bands. Mains supply The CR2002 will operate from a supply of AC 230volts, 50Hz For your convenience this product is supplied with a plug which is fitted with a fuse of the appropriate rating. If the plug supplied is not suitable for your socket outlet, it should be removed by unscrewing the plug top, the terminal screws and removing the cable.
  • Page 24: Guarantee

    In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown below. Issue 1 Guarantee 1.
