Hydraulic Press Parts List
Models HP-5A/15A/35A

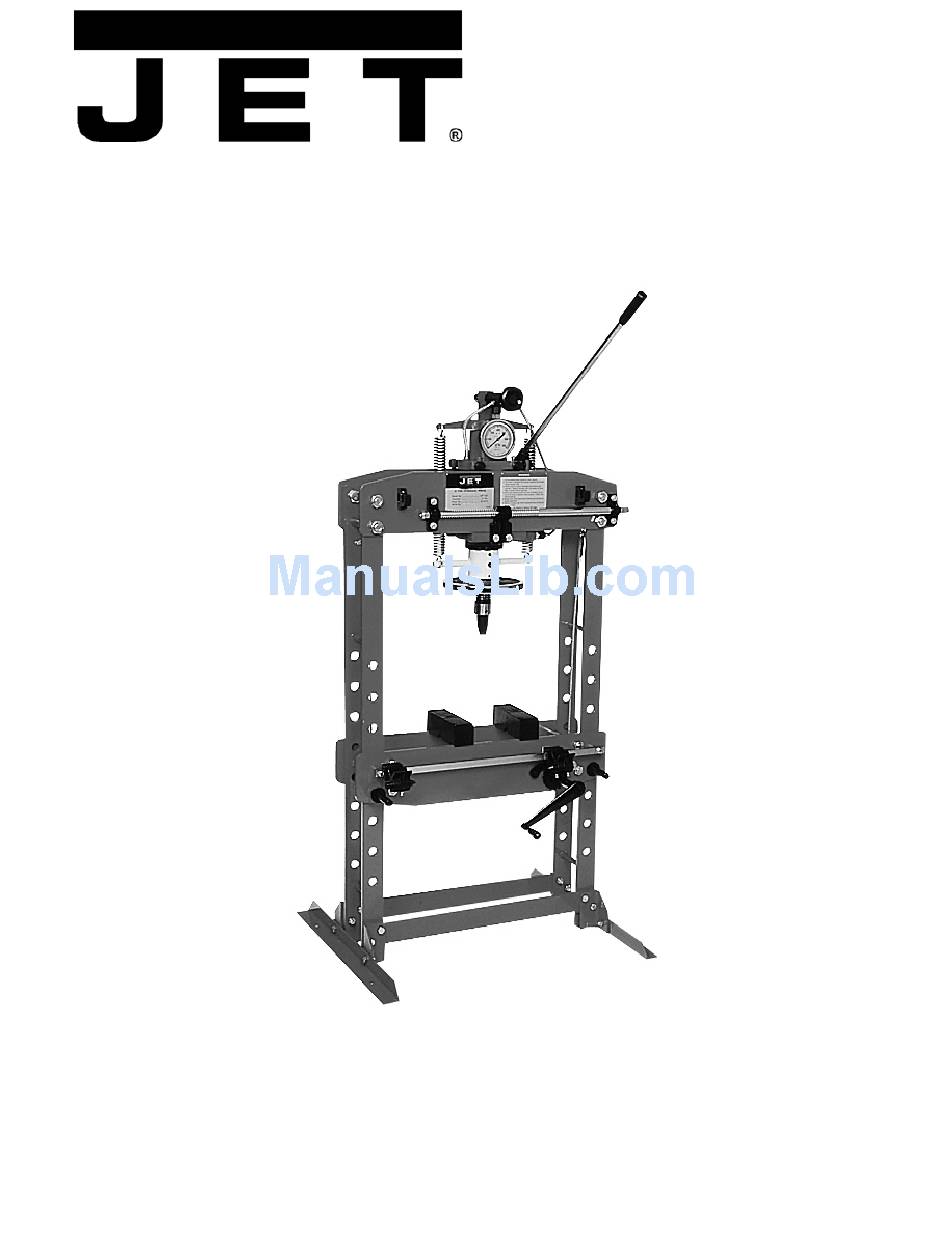

Model HP-15A shown
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-331406
Ph.: 800-274-6848
Revision B 12/09
www.waltermeier.com
Copyright © 2009 Walter Meier (Manufacturing) Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP-5A and is the answer not in the manual?

Questions and answers

Summary of Contents for Jet HP-5A

  • Page 1 Hydraulic Press Parts List Models HP-5A/15A/35A Model HP-15A shown WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-331406 Ph.: 800-274-6848 Revision B 12/09 www.waltermeier.com Copyright © 2009 Walter Meier (Manufacturing) Inc.
  • Page 2: Warranty And Service

    Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with your local Walter Meier distributor, or visit waltermeier.com. WARRANTY JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW = Woodworking). WHAT IS COVERED? This warranty covers any defects in workmanship or materials subject to the exceptions stated below.
  • Page 3: Table Of Contents

    Replacement Parts ..........................5 HP-5A Head Assembly ........................6 HP-5A Head Assembly – Parts List....................7 HP-5A Frame Assembly........................8 HP-5A Frame Assembly – Parts List ....................9 HP-15A Head Assembly ........................ 10 HP-15A Head Assembly – Parts List ....................11 HP-15A Frame Assembly....................... 13 HP-15A Frame Assembly –...
  • Page 4: Warning

    Warning 1. Read and understand all safety warnings. 2. Replace the warning labels if they become obscured or removed. 3. This press is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with the proper and safe operation of an hydraulic press, do not use until proper training and knowledge has been obtained 4.
  • Page 5: Specifications

    Assembly 1. Bolt the stand feet to the stand frame with the enclosed hardware. 2. Replace the hex filler plug (part #17 – HP-5A, part #8A – HP-15A, and part #8D – HP-35A) with the enclosed vented plug. Replacement Parts To order parts or reach our service department, call 1-800-274-6848, Monday through Friday (see our website for business hours, www.waltermeier.com).
  • Page 6: Hp-5A Head Assembly

    HP-5A Head Assembly...
  • Page 7: Hp-5A Head Assembly - Parts List

    HP-5A Head Assembly – Parts List Index No. Part No. Description Size 1 ....HP5A-1 ....Hydraulic Base ................... 1 2 ....HP5A-2 ....Cylinder ..................... 1 3 ....HP5A-3 ....Base Filter ** ..................1 4 ....HP5A-4 ....Single Action Valve ................1 5 ....
  • Page 8: Hp-5A Frame Assembly

    HP-5A Frame Assembly...
  • Page 9: Hp-5A Frame Assembly - Parts List

    HP-5A Frame Assembly – Parts List Index No. Part No. Description Size 52 .... HP5A-52 ....Frame Bracket ..................2 53 .... TS-0060051 ....Hex Cap Screw ..........3/8”-16 x 1”....... 4 54 .... TS-0561031 ....Hex Nut............3/8”-16 ......12 55 .... HP5A-55 ....Frame Base Bracket ................2 56 ....
  • Page 10: Hp-15A Head Assembly

    HP-15A Head Assembly...
  • Page 11: Hp-15A Head Assembly - Parts List

    HP-15A Head Assembly – Parts List Index No. Part No. Description Size 1 ....HP15A-01 ....Hydraulic Base ................... 1 1A.... HP15A-01A .....Base Seal ** ..................1 2 ....HP15A-02 ....Cylinder ..................... 1 2A.... HP15A-02A .....Seal ** ....................1 3 ....HP15A-03 ....Support Rod ..................4 4 ....
  • Page 12 36A..HP15A-36A .....Hand Stopper ..................1 37 .... HP15A-37 ....Complete Handle Sleeve Assembly ............. 1 38 .... HP15A-38 ....Fixed Screw ..................1 39 .... HP15A-39 ....Spacer ....................1 40 .... HP15A-40 ....Pin ..................... 1 40A..HP15A-40A .....Cotter Pin ................... 1 41 ....
  • Page 13: Hp-15A Frame Assembly

    HP-15A Frame Assembly...
  • Page 14: Hp-15A Frame Assembly - Parts List

    HP-15A Frame Assembly – Parts List Index No. Part No. Description Size 42 .... HP15A-42 ....Shaft Holder ..................1 42A..TS-0070011 ....Hex Cap Screw ..........1/2”-13 x 1”....... 2 43 .... HP15A-43 ....Rolling Shaft Block without Thread............1 43A..TS-0060061 ....Hex Cap Screw ..........3/8”-16 x 1-1/4” ....3 44 ....
  • Page 15: Hp-35A Head Assembly

    HP-35A Head Assembly...
  • Page 16: Hp-35A Head Assembly - Parts List

    HP-35A Head Assembly – Parts List Index No. Part No. Description Size 1 ....HP35A-01 ....Base ....................1 1A.... HP35A-01A .....Base Filter ** ..................2 2 ....HP35A-02 ....Cylinder ..................... 1 2A.... HP35A-02A .....Spacer ....................1 3 ....HP35A-03 ....Support Rod ..................4 4 ....
  • Page 17 28 .... HP35A-28 ....Safety Valve Block ................1 28A..HP35A-28A .....Plastic Tube ..................1 28B..HP35A-28B .....Steel Ball.................... 1 28C ..HP35A-28C .....Safety Spring..................1 28D ..HP35A-28D .....Safety Valve Set Screw ............... 1 28E..HP35A-28E .....Brass Tube Connector ................ 1 28F ..
  • Page 18: Hp-35A Frame Assembly

    HP-35A Frame Assembly...
  • Page 19: Hp-35A Frame Assembly - Parts List

    HP-35A Frame Assembly – Parts List Index No. Part No. Description Size 42 .... HP35A-42 ....Shaft Holder ..................1 42A..HP35A-42A .....Hex Cap Head Bolt ................2 43 .... HP35A-43 ....Rolling Shaft Block................1 43A..TS-0060061 ....Hex Cap Screw ..........3/8”-16 x 1-1/4” ....2 44 ....
  • Page 20 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.waltermeier.com...
