ShoreTel 212k IP Phone
Quick Install Guide & Warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 212k and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ShoreTel 212k

Summary of Contents for ShoreTel 212k

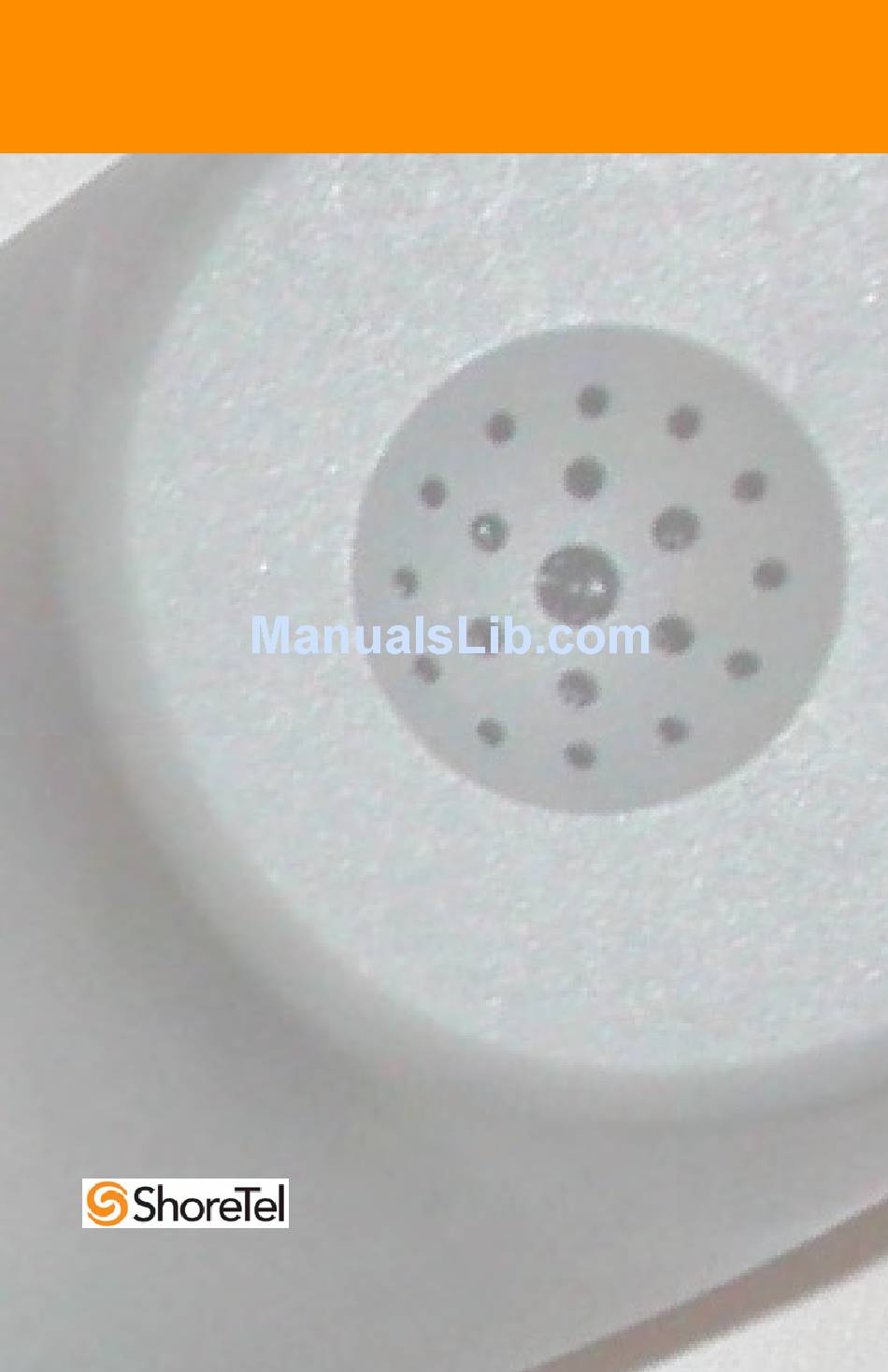

  • Page 1 ShoreTel 212k IP Phone Quick Install Guide & Warranty...

  • Page 2: Document And Software Copyrights

    ShoreTel, Inc. ShoreTel, Inc. reserves the right to make changes without notice to the specifications and materials contained herein and shall not be responsible for any damage (including consequential) caused by reliance on the materials presented, including, but not limited to, typographical, arithmetic, or listing errors.

  • Page 3: Package Contents

    Installing Your ShoreTel 212k IP Phone This section shows how to install a ShoreTel 212k IP Phone. Instructions are provided for connecting phones with and without the AC power adapter. (This adapter may be necessary for networks that do not support the IEEE 802.3af standard for Power-over- Ethernet).
  • Page 4 Attach phone to base Insert the large tab on the mount into Rotate the two pillars down until the the slot on the rear of the phone. smaller tabs slide into the slots.
  • Page 5 Connect to powered network (no AC adapter required) If the LAN supports power-over-Ethernet, no AC adapter is needed. The phone draws power from the Ethernet network. Connect the network cable between the LAN port on the back of the phone and an Ethernet jack in the workspace (or on a data switch/router that...
  • Page 6 Connect to power & network (Non-powered Ethernet network requires AC power adapter) Connect the AC power cable between the adapter and an Connect the second network electrical cable to the DATA IN port** socket. on the adapter and an Ethernet jack in the workspace (or on a data Upper LED*** lights switch/router).
  • Page 7 Connect handset For optimal use, attach the longer end of the handset cable to the handset. Connect the short end of the handset cable to the jack on the phone body. optional Connect a headset to connector on phone. Headset not included.

  • Page 8: Important Safety Instructions

    Important Safety Instructions For IP TELEPHONE MODELS 110, 212k, 230, 560, 560g, BB24 This symbol is to alert you to important operating or servicing instructions that may appear in this owner’ s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock.

  • Page 9: Features And Functions

    Features and Functions Function Keys Indicator LED Handset Function Keys overlay Alerts the user to Perform core incoming calls and Vinyl overlay telephony new voice messages imprinted with functions international symbols Menu Key Select Key Handset Jack Custom Keys 12 custom keys with tri-color indicators can be configured as call...

  • Page 10: Warranty And Limitation Of Liability

    ShoreTel or its authorized reseller. ShoreTel's sole obligation under this express warranty shall be, at ShoreTel's option and expense, to repair...
  • Page 11 This ShoreTel IP Phone has been marked with the CE mark. This mark indicates compliance with EEC directories 89/336/EEC and 73/23/EEC. A full copy of the Declaration of Conformity can be obtained from ShoreTel Inc., 960 Stewart Drive,...
  • Page 12 ShoreTel® IP is a trademark of ShoreTel, Inc. in the United States, and various countries. Do not remove (or allow any third party to remove) any product identification, copyright, or other notices. The software contained within this product is protected by United States copyright laws and international treaty provisions.
