3C905C-TX NIC Specifications
3C905C-TX NIC Specifications

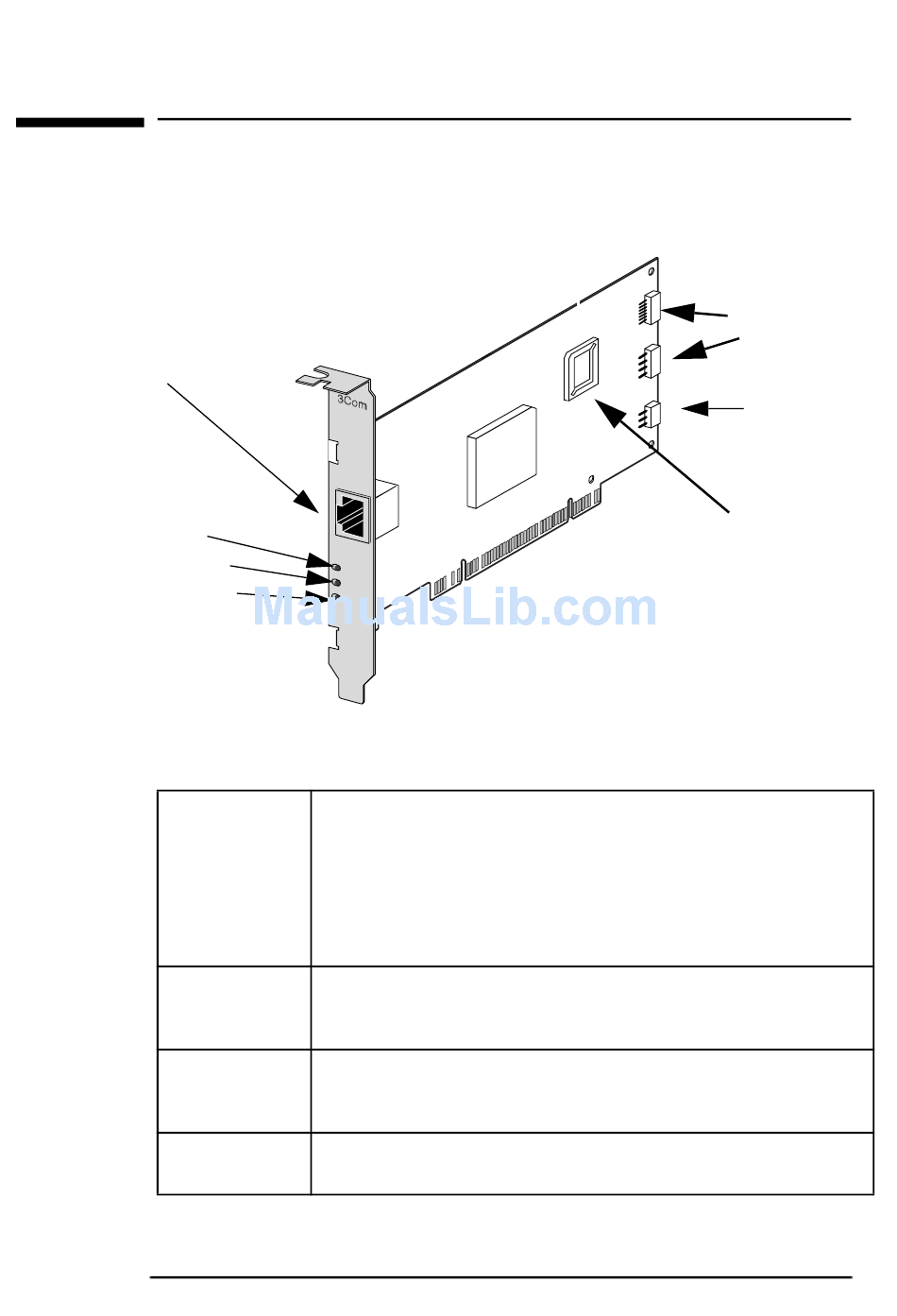

Physical Layout

LAN Connector
ACT LED
10 LNK LED
100 LNK LED
Refer to "LAN Connection
Status LEDs" on page 23 for
more information

Specifications

Network Interface •
Physical
Dimensions
Environmental
Operating Range
Power
Requirements
22 English
T X D
A T A
A C T
1 0
L
N
1 0 0
K
10 Mbps Ethernet 10BASE-T: Ethernet IEEE 802.3 industry
standard for a 10 Mbps baseband CSMA/CD local area network.
100 Mbps Ethernet 100BASE-TX: Ethernet IEEE 802.3u
•
industry standard for a 100 Mbps baseband CSMA/CD local
area network.
Height: 7.62cm (3 in.)
•
Length: 14.86cm (5.85 in.)
•
Operating temperature: 0° to 70° C (32° to 158° F)
•
Humidity: 10 to 90% noncondensing
•
Operating voltage: +3.3 V ± 5% @375 mA max
•
Reserved, do not use
Remote Wake-Up
Connector
Boot ROM socket
