Removing the Battery Pack

To replace the batteries:.
1. Place the UPS in Bypass mode using the manual switch located at the rear of the UPS.

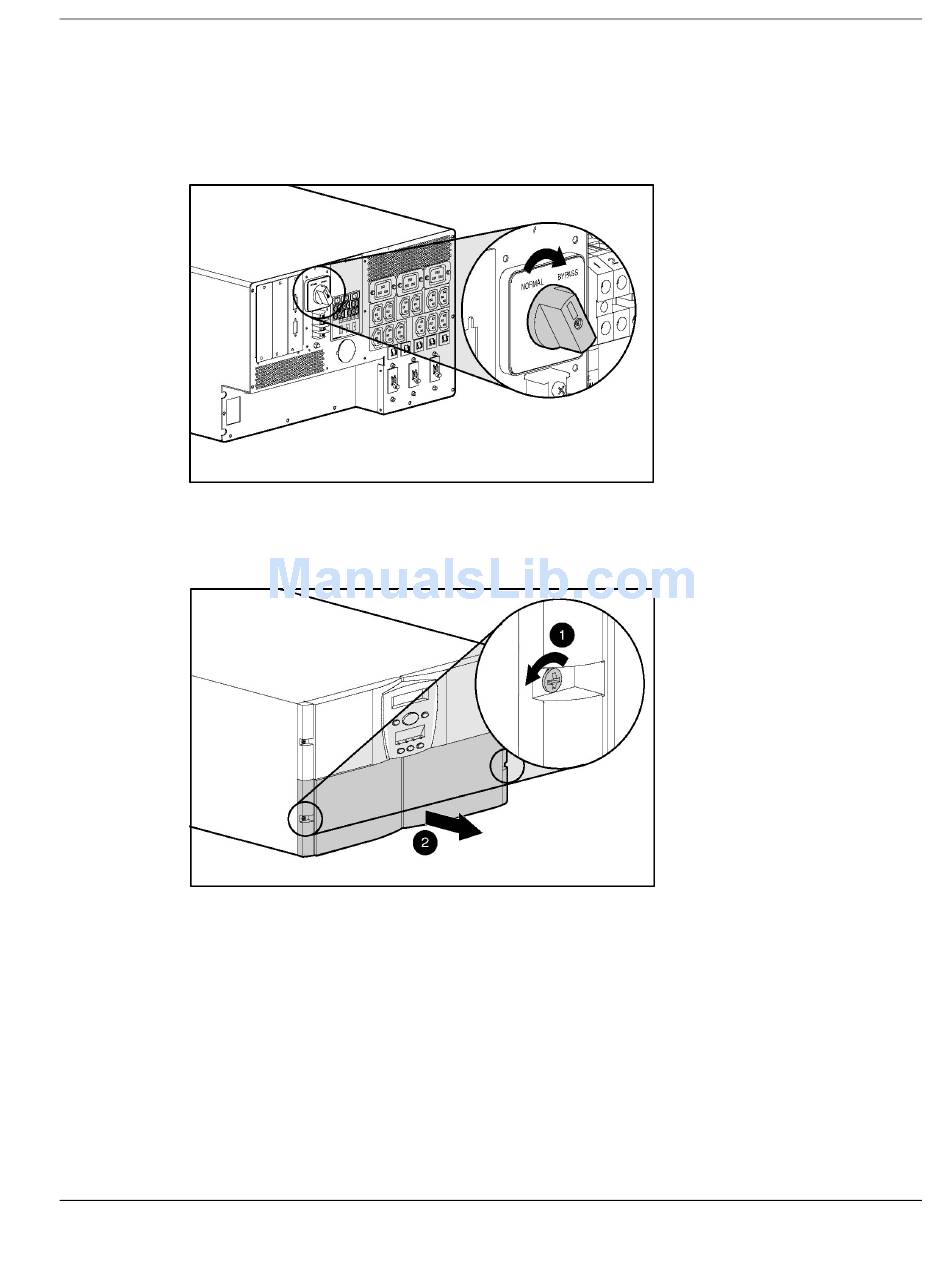

Figure 4-1: Placing the UPS in Manual Bypass mode
2. Using a Philips screwdriver, remove the lower front bezel by backing off the captive
screws on each side.
Figure 4-2: Removing screws from the lower front bezel
HP Uninterruptible Power System R6000 Models User Guide
Battery Maintenance
4-3
