SI-663

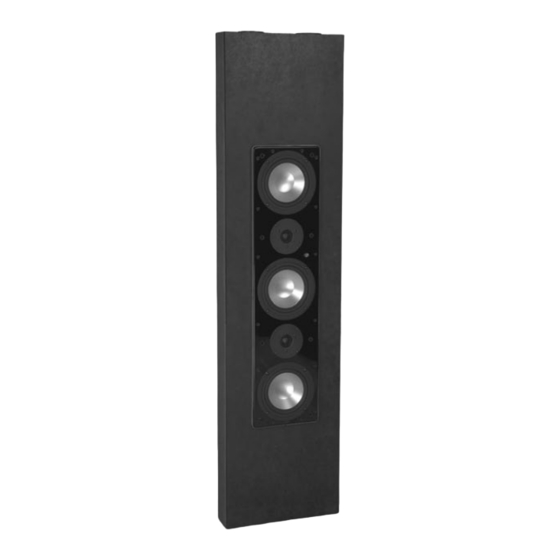

IN-WALL LCR SPEAKER
O w n e r ' s M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SI-663 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RBH Sound SI-663

Summary of Contents for RBH Sound SI-663

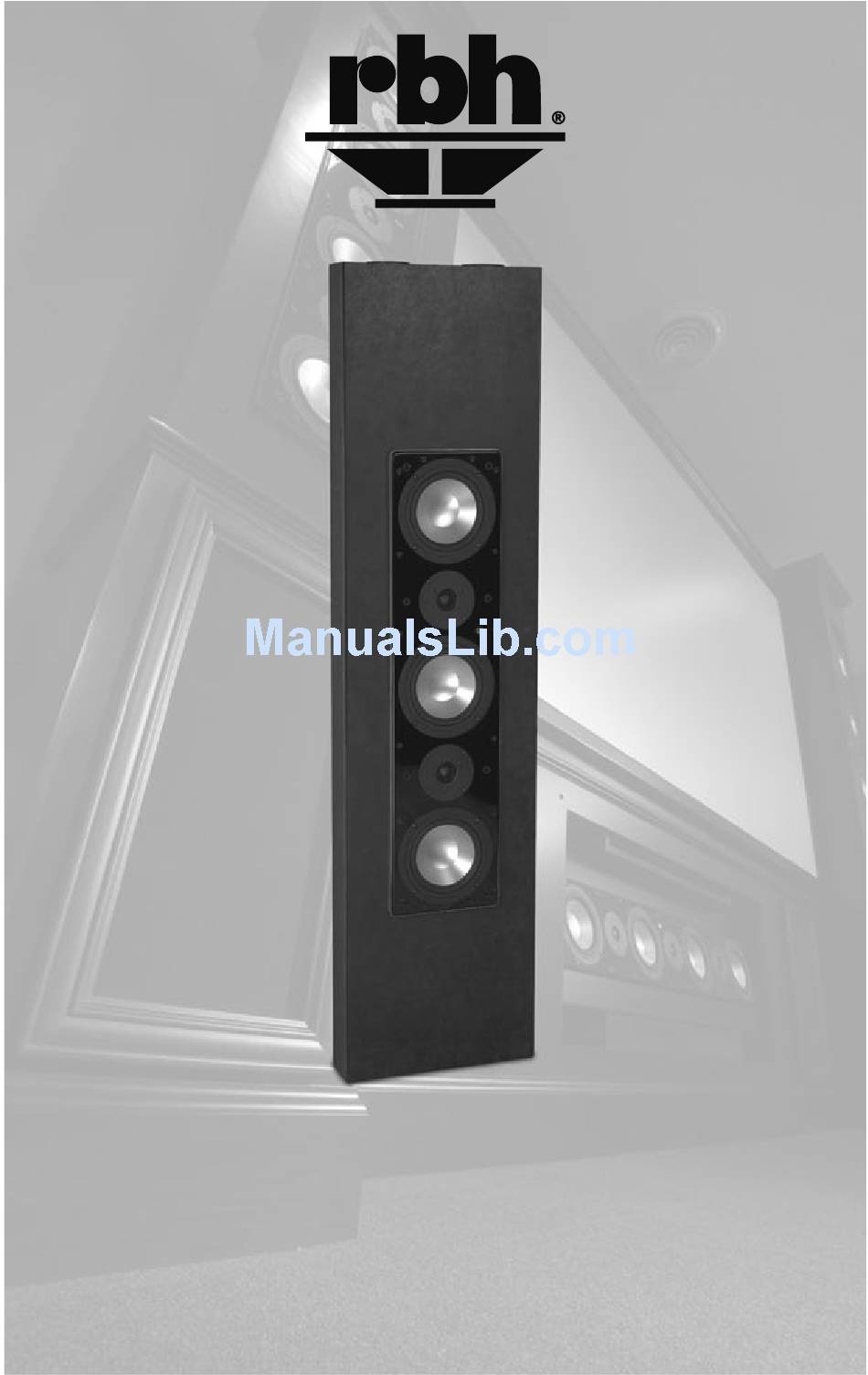

  • Page 1 SI-663 IN-WALL LCR SPEAKER O w n e r ’ s M a n u a l...

  • Page 2: Speaker Placement

    For situations where a third SI-663 or SI-663/R can be used as a dedicated center channel, the trio can be wired in standard configuration, allowing each to discretely provide left, center or right channels for a seamless front sound stage.

  • Page 3: Break-In Period

    Speaker Placement (continued) Subwoofer Placement of the subwoofer will largely determine quality, quantity, and extension of the bass frequencies within your listening room. Bass frequencies are reinforced by close room boundaries. Placing the subwoofer in a corner will make the subwoofer sound louder and boost the very lowest frequencies.
  • Page 4 Pre-wiring the Speaker 1. Unpack the speaker cabinet from the shipping box. 2. Run the speaker wires from the terminal cup to an amplifier/receiver. Choose either the default dual mode setup in wiring diagram 1 or the optional single mode setup shown in wiring diagram 2.
  • Page 5 Pre-wiring the Speaker (continued) Wiring Diagram 2. Single mode option using speaker as a L/C/R.

  • Page 6: Installing The Speaker

    Installing the Speaker 1. Determine where each speaker cabinet will need to be installed. 2. If the cabinet is installed in a vertical position, the terminal cup will need to be on the top (see figure 1). 3. Position and brace the speaker cabinet in- between two studs by using a couple of screws to hold the speaker in place (see figure 2).

  • Page 7: Specifications

    Specifications Model: SI-663 SI-663/R System Type: In-wall/LCR Dual 2-way Speaker In-wall/LCR Dual 2-way Speaker Frequency Response: 50Hz-20kHz ±3dB 50Hz-20kHz ±3dB Sensitivity: 90dB Main, 88dB Center and 90dB Main, 88dB Center and 92dB Combined (2.83V @ 1 Meter) 92dB Combined (2.83V @ 1 Meter)

  • Page 8: Warranty

    382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 www.rbhsound.com It is RBH Sound policy to continuously incorporate improvements into products; all specifications are subject to change without notice. © Copyright 2010 RBH Sound. All Rights Reserved.
