Generac Power Systems Stationary Emergency Generator Installation Manual page 11
Stationary emergency generator
Hide thumbs
Also See for Stationary Emergency Generator:
- Owner's manual (150 pages) ,
- Owner's manual (144 pages)
Table of Contents
Advertisement
Primary Regulator
(Supplied by
Installing
Contractor)
Manual Shutoff
Valve
Manual Shutoff Valves
Primary Regulator
(Supplied by
Installing
Fuel
Contractor)
Tank

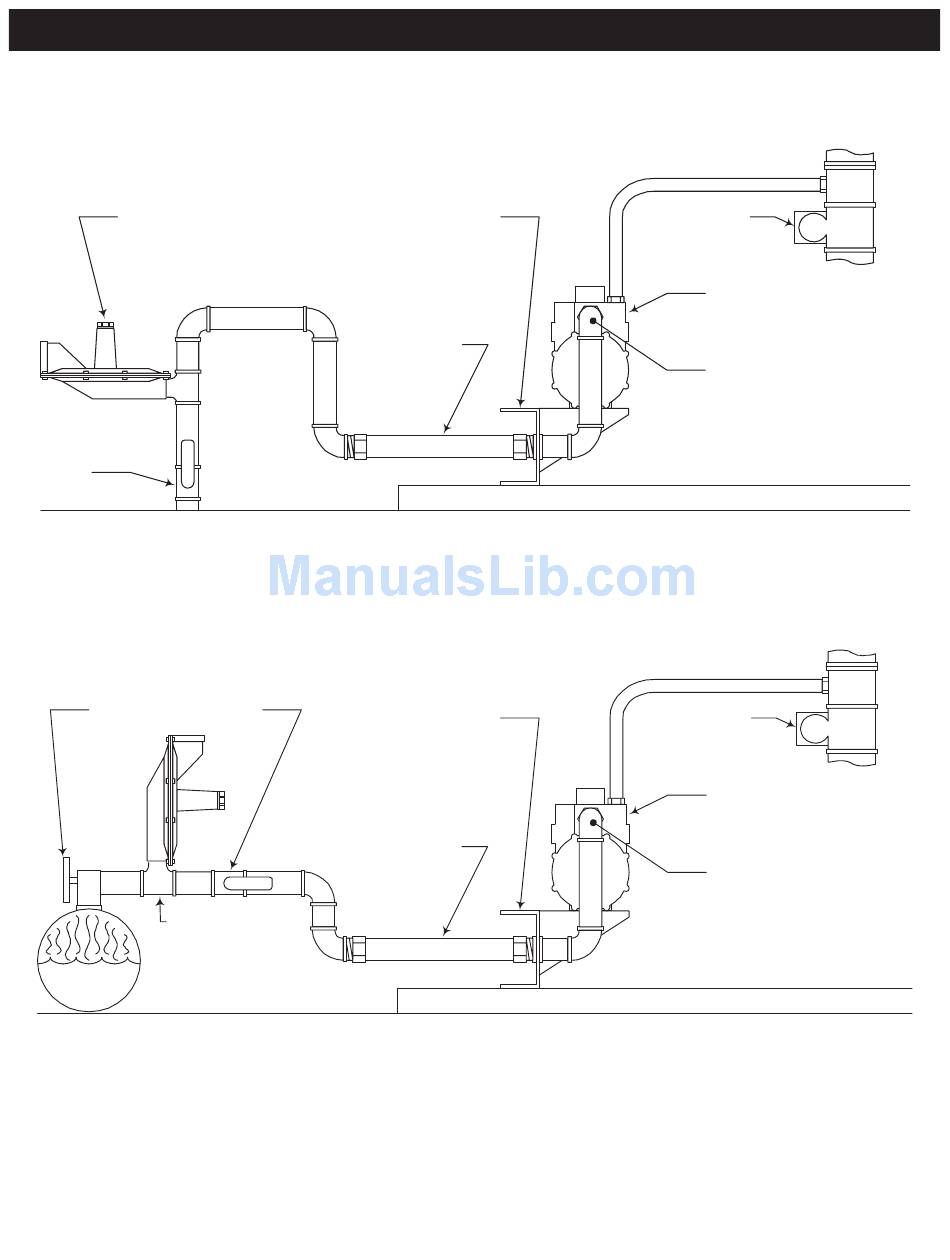

Figure 1.10 — Typical Natural Gas System
Generator Base
Flex Fuel Line
(Supplied
with Unit)
Figure 1.11 — Typical LP Gas Vapor Withdrawal System
Generator Base
Flex Fuel Line
(Supplied
with Unit)
General Information
Gas Actuator
Fuel Shutoff/Regulator
Assembly
11 - 14" Water Column
Recommended (> = 70kW)
5 - 14" Water Column
Recommended (< 70kW)
Gas Actuator
Fuel Shutoff/Regulator
Assembly
11 - 14" Water Column
Recommended (> = 70kW)
5 - 14" Water Column
Recommended (< 70kW)
9
