SD275
Standby Power Rating
344kVA 275kW 60Hz
Prime Power Rating*
310kVA 248KW 60Hz
*EPA Certified Prime ratings are not available in the U.S. or its Territories for engine model year 2011 and beyond
primary codes and standards
features
Generator Set
= PROTOTYPE & TORSIONALLY TESTED
= UL2200 TESTED
= RHINOCOAT PAINT SYSTEM
= WIDE RANGE OF ENCLOSURES AND TANKS
Engine
= EPA COMPLIANT
= INDUSTRIAL TESTED, GENERAC APPROVED
= POWER-MATCHED OUTPUT
= INDUSTRIAL GRADE
Alternator
= TWO-THIRDS PITCH
= LAYER WOUND ROTOR & STATOR
= CLASS H MATERIALS
= DIGITAL 3-PHASE VOLTAGE CONTROL
Controls
= ENCAPSULATED BOARD W/ SEALED HARNESS
= 4-20mA VOLTAGE-TO-CURRENT SENSORS
= SURFACE-MOUNT TECHNOLOGY
= ADVANCED DIAGNOSTICS & COMMUNICATIONS
Industrial Diesel Generator Set
EPA Certified Stationary Emergency

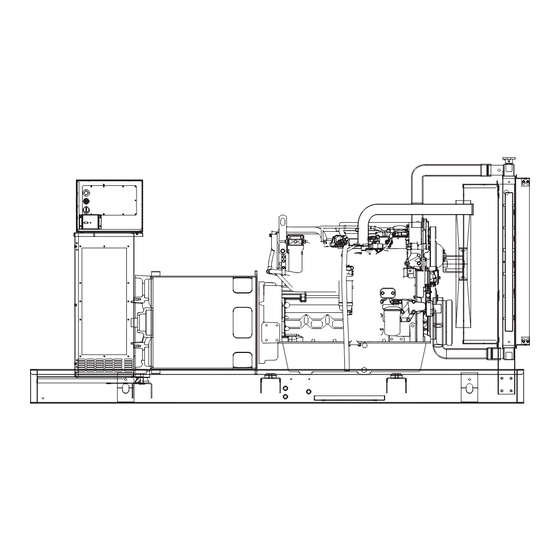

Generator image used for illustration purposes only
benefits
PROVIDES A PROVEN UNIT
4
ENSURES A QUALITY PRODUCT
4
IMPROVES RESISTANCE TO ELEMENTS
4
PROVIDES A SINGLE SOURCE SOLUTION
4
ENVIRONMENTALLY FRIENDLY
4
ENSURES INDUSTRIAL STANDARDS
4
ENGINEERED FOR PERFORMANCE
4
IMPROVES LONGEVITY AND RELIABILITY
4
ELIMINATES HARMFUL 3RD HARMONIC
4
IMPROVES COOLING
4
HEAT TOLERANT DESIGN
4
FAST AND ACCURATE RESPONSE
4
EASY, AFFORDABLE REPLACEMENT
4
NOISE RESISTANT 24/7 MONITORING
4
PROVIDES VIBRATION RESISTANCE
4
HARDENED RELIABILITY
4
1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Generac Power Systems SD275
Summary of Contents for Generac Power Systems SD275
- Page 1 IMPROVES RESISTANCE TO ELEMENTS = WIDE RANGE OF ENCLOSURES AND TANKS PROVIDES A SINGLE SOURCE SOLUTION Engine = EPA COMPLIANT ENVIRONMENTALLY FRIENDLY = INDUSTRIAL TESTED, GENERAC APPROVED ENSURES INDUSTRIAL STANDARDS = POWER-MATCHED OUTPUT ENGINEERED FOR PERFORMANCE = INDUSTRIAL GRADE IMPROVES LONGEVITY AND RELIABILITY...
-
Page 2: Engine Specifications
Battery Size (at 0ºC) 1155 CCA Battery Group Battery Voltage (2) - 12VDC Ground Polarity Negative ALTERNATOR SPECIFICATIONS Standard Model 520 mm Generac Voltage Regulator Type Digital Poles Number of Sensed Phases Field Type Revolving Regulation Accuracy (Steady State) ± 0.25%... - Page 3 ** Refer to “Emissions Data Sheet” for maximum bHP for EPA and SCAQMD permitting purposes. Deration – Operational characteristics consider maximum ambient conditions. Derate factors may apply under atypical site conditions. Please consult a Generac Power Systems Industrial Dealer for additional details. All performance ratings in accordance with ISO3046, BS5514, ISO8528 and DIN6271 standards.
-
Page 4: Standard Features And Options
SD275 standard features and options GENERATOR SET CONTROL SYSTEM Control Panel ˜ Genset Vibration Isolation ˜ Digital H Control Panel - Dual 4x20 Display ™ IBC Seismic Certified/Seismic Rated Vibration Isolators ™ Digital G-100 Control Panel - Touchscreen ™ Extended warranty ™... - Page 5 Other Custom Options Available from your Generac Industrial Power Dealer Specification characteristics may change without notice. Dimensions and weights are for preliminary purposes only. Please consult a Generac Power Systems Industrial Dealer for detailed installation drawings. Generac Power Systems, Inc. • S45 W29290 HWY. 59, Waukesha, WI 53189 • generac.com...
Need help?
Do you have a question about the SD275 and is the answer not in the manual?
Questions and answers
Where do I connect the two wires from transfer switch to turn on the generator for auto operation
The Generac Power Systems SD275 generator is 2-wire start compatible, meaning it can be connected to a transfer switch using two control wires for automatic operation. To connect the two wires:
1. Locate the 2-wire start terminals on the generator's control panel.
2. Connect the two control wires from the transfer switch to these terminals.
3. Ensure the transfer switch is properly configured to send a start signal when utility power fails.
4. Verify the generator and transfer switch settings for correct operation.
5. Test the system by simulating a power outage to confirm automatic start and transfer.
For detailed wiring diagrams, consult a Generac Industrial Dealer.
This answer is automatically generated
