FANTEC MR-SA1041

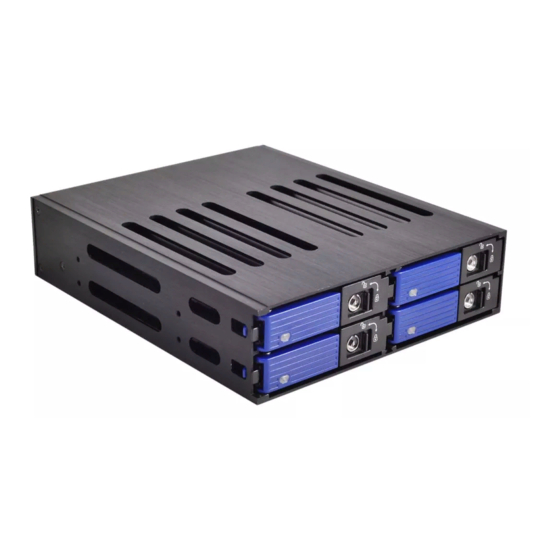

Quartet Mobile Backplane
User's Manual
Features of product
Frame: Aluminum material and Plastic material for the front bezel
Interface: Support SAS, SATA-I, SATA-II
Form Factor: 1 x 5.25" Bay for 4 x 2.5" SAS or SATA Hard Drive(SSD)
High performance transfer rate up to SAS 3Gb/s & SATA 3Gb/s
Support RAID Function (Note: extra SAS or SATA RAID control card needed )
Plug & play, hot swappable
Key lock design for each single HDD tray
Support 2.5" single hard drive up to 15mm thickness in height
With 15Pin Power connector and 7Pin Signal connector
Built-in 2 X 4cm(4020) cooling fan
LED for Power & HDD access
Dimension : 175(L) X 146(W) X 42(H) mm
Weight : 0.8 kgs
---Solid HDD Inner tray with strip-heat ventilating holder ---
Picture A-1
Picture A-2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fantec MR-SA1041
Summary of Contents for Fantec MR-SA1041

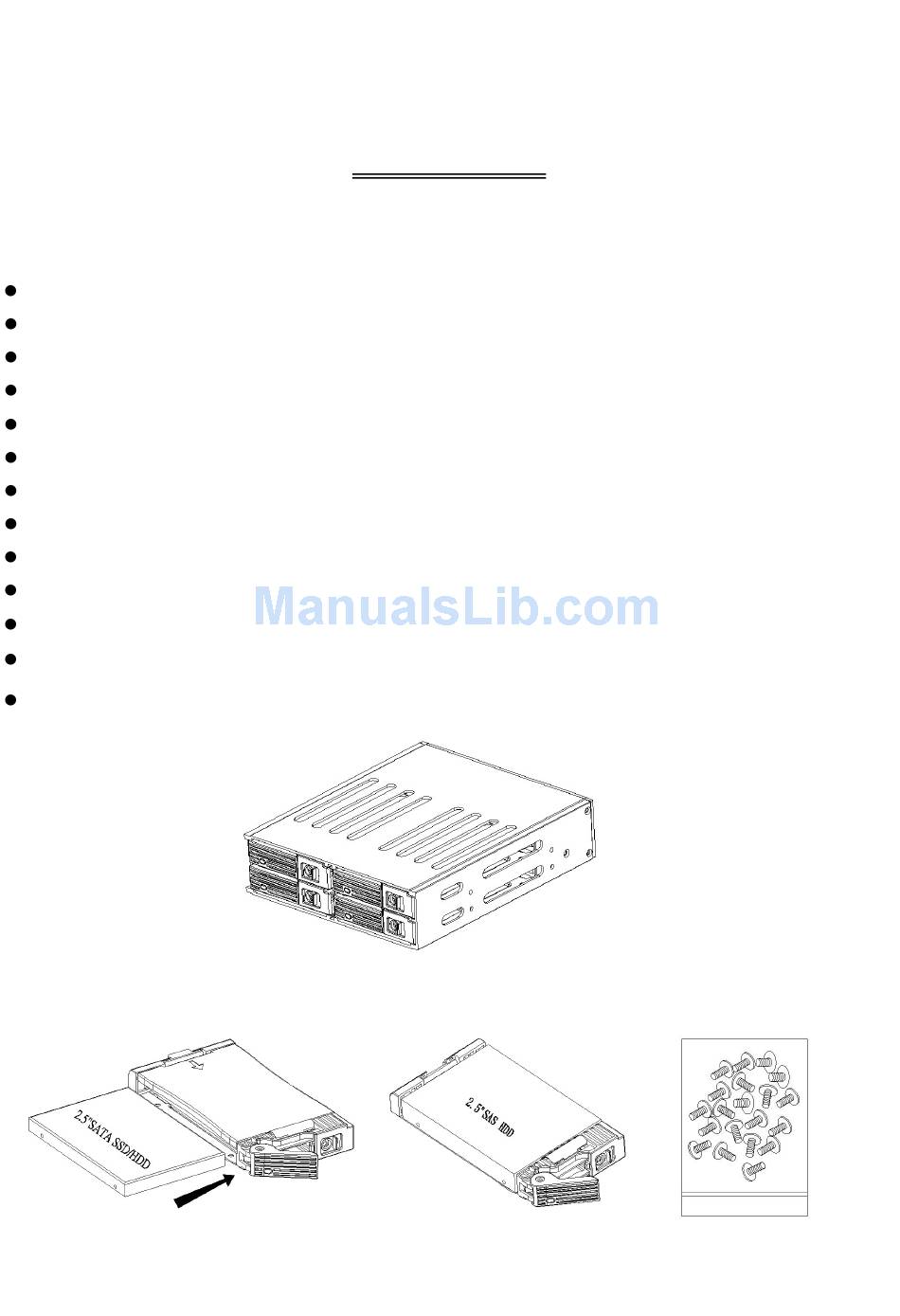

- Page 1 FANTEC MR-SA1041 Quartet Mobile Backplane User’s Manual Features of product Frame: Aluminum material and Plastic material for the front bezel Interface: Support SAS, SATA-I, SATA-II Form Factor: 1 x 5.25” Bay for 4 x 2.5” SAS or SATA Hard Drive(SSD) High performance transfer rate up to SAS 3Gb/s &...
- Page 2 HDD Installation: For 2.5” SATA HDD (SSD): Put HDD onto the tray as shown on Picture A-1 and use the provided screws to secure HDD on the tray one by one. For 2.5” SAS HDD or HDD’s thickness is more than 10.5mm: Loose the cover-mounting screw and remove the top cover.
- Page 3 C1 to C4: HDD Tray C5: Key lock for HDD tray C6: LED: *Purple blinking while HDD is accessing. *Solid blue when HDD is installed * Note: When HDD is installed but it is not powered on, there is no LED indication. Picture D D7: 15pin SATA power connector D8 to D9: Cooling Fan...
