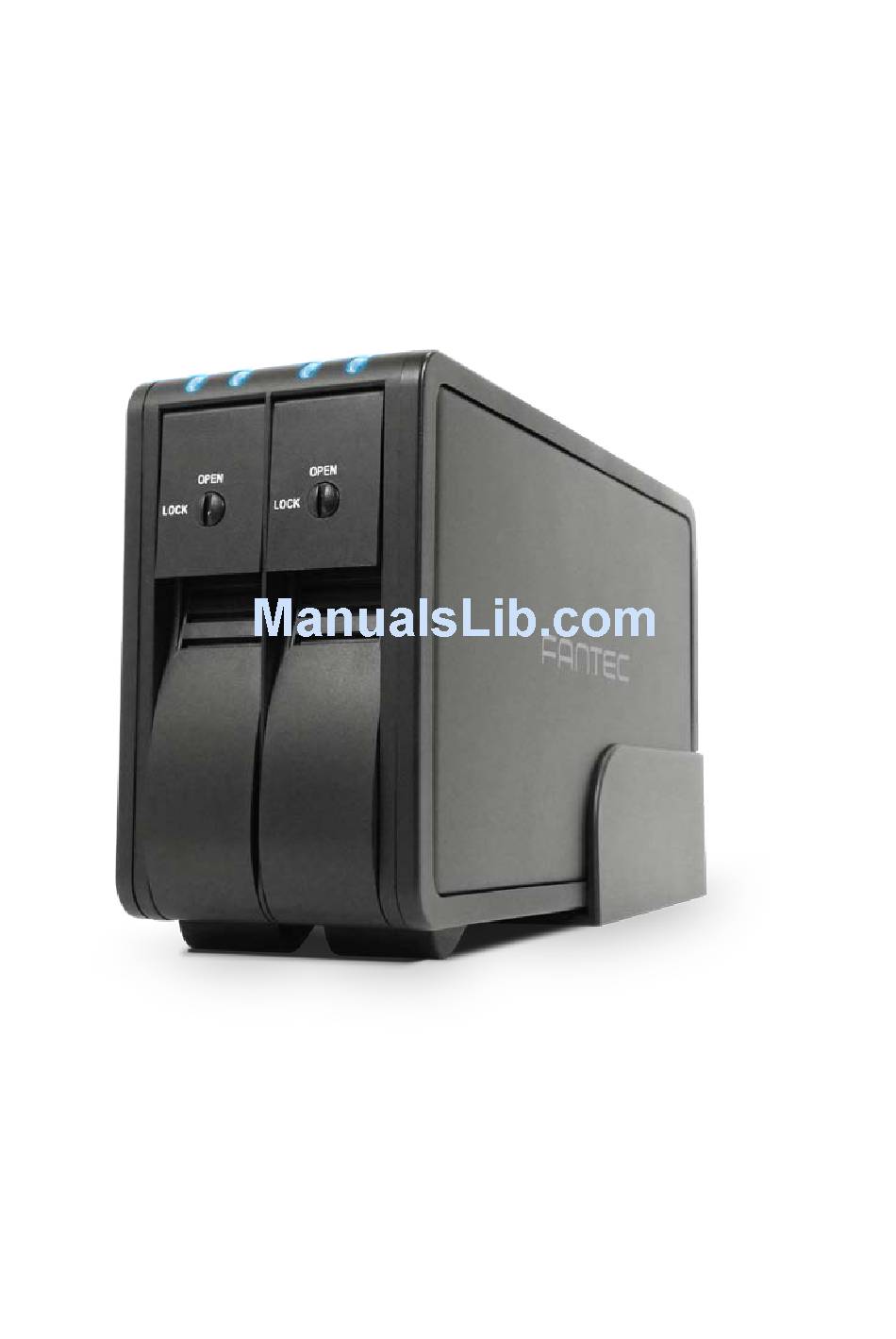

- Page 1 FANTEC MR-35VU3R USER MANUAL...
-
Page 2: Table Of Contents
Menu Menu ..................1 1. Product Introduction ............2 2. Operation ................3 2.1 USB Interface ..............6 2.1.1 JBOD Modus ............. 6 2.1.2 BIG Modus ..............7 2.1.3 RAID0 ................ 8 2.1.4 RAID1 ................ 9 2.1.5 Partitioning Volumes ..........10 3. -
Page 3: Product Introduction
1. Product Introduction SATA 2x HDD RAID to USB 3.0 5.0G interface. Front Back... -
Page 4: Operation
2. Operation The Hard Disk Installation: Sway lock to open , pull the doorknob and insert half of the hard disk into the dock slot. Close the door and the hard disk will slide into the slot. Installation is complete. Unlock the door Pull the front door Insert HDD... - Page 5 1. Set Normal / RAID0 / RAID1 / BIG Mode Turn on the power, switch the button on the back to the desired Mode and press the RESET button. After a few seconds the computer will automatically recognie the USB device, Power LED indicate blue light when detect HDD. 2.
- Page 6 LED condition: Switch on power and insert two HD in terms of different working pattern PATTERN HDD carries on the self-checking Data transmission RAID0 HDD1 and HDD2 LED flashing During Data transmission: The simultaneously with blue light. HDD1 and the HDD2 LED flashing Self- checking completes when simultaneously with blue light.
-
Page 7: Usb Interface
Attention: If you simultaneously use two HDD, and the HDD damaged under RAID0, JBOD, and BIG pattern, the data on the HDD will be lost. Under the RAID1 pattern, you may consider to take out the damaged HDD and replace formatted HDD instead. 2.1 USB Interface 2.1.1 JBOD Modus Insert the two disks in the HDD1 and HDD2 rack and connect the device with the... -
Page 8: Big Modus
2.1.2 BIG Modus Insert the two disks in the HDD1 and HDD2 rack and connect the device with the USB & Power cable. Turn on the power, switch the Mode to BIG and press the Reset button for a few seconds, the computer will automatically recognize the USB device. -
Page 9: Raid0
2.1.3 RAID0 Insert the two disks in the HDD1 and HDD2 rack and connect the device with the USB & Power cable. Turn on the power, switch the Mode to RAID0 and press the Reset button for a few seconds, the computer will automatically recognize the USB device. Right-click on “My Computer”... -
Page 10: Raid1
2.1.4 RAID1 Insert the two disks in the HDD1 and HDD2 rack and connect the device with the USB & Power cable. Turn on the power, switch the Mode to RAID1 and press the Reset button for a few seconds, the computer will automatically recognize the USB device. Right-click on “My Computer”... -
Page 11: Partitioning Volumes
2.1.5 Partitioning Volumes This section explains how to partition volumes after initializing them. You must partition volumes for the host computer's operating system before you can store data on the volumes. Refer to the operating system's documentation for further guidance. Partitioning a hard drive MS Windows Important: Before reconfiguring a volume, back up your data and delete previously... - Page 12 Every disk should appear with the word “Basic”, a size value that shows the available storage capacity, and a status of “Online”. Instead of Basic, a disk could appear Unknown, Dynamic, or Not Initialized. A window opens with the selected disk (all Unknown disks may appear in this window).
- Page 13 5. Select the Primary or Extended option and click Next. 6. Specify the partition size. By default, the partition occupies the entire volume. Click Next. 7. Assign a drive letter or mount path and click Next. 8. Name and format the partition and click . 9.
- Page 14 Mac OS X Important: Before reconfiguring a volume, back up your data and drag the old drive to the trash to un-mount previously defined partition. If no hard drives are connected to the Storage Appliance, the Processor disk (8.0 GB Config Disk Media) will appear. Do not remove or modify that partition.
-
Page 15: Note
5. Select Mac OS Extended (journaled) from the Format drop-down list. 6. Specify the size of the partition in the Size field. 7. Click the Partition button. 8. Click Partition to acknowledge the warning. Disk Utility mounts the created partition and represents it with an icon on the desktop. The icon is labeled with the partition name. -
Page 16: Features
4.3. 4 Working Modes (BIG,JBOD,RAID0,RAID1) You can configure the FANTEC MR-35VU3R to use any of the following Storage Policies to map the appliance's physical hard drives to virtual drives that are visible to the host computer. The virtual drives are called volumes in the GUI. The host operating system treats each volume as if it were a single physical drive. - Page 17 The BIG storage policy concatenates a series of physical hard drives as a single large volume; resulting in a seamless expansion of virtual volumes beyond the physical limitations of singularly connected hard drives. BIG storage policy delivers maximum storage space without a single large capacity and costly hard drive. Hard drive A and B are concatenated into a single virtual volume in the Figure below with a storage capacity that is equal to the sum of each of the physical hard drives A and B.
- Page 18 RAID0 The RAID0 storage policy distributes access across all hard disks, also called striping. RAID0 presents the best data speed but no data redundancy. RAID0 storage policy accelerates hard disk operating speed by using many disks in parallel. Hard drive data segments are written to different disks simultaneously which increases performance while sacrificing data redundancy.
-
Page 19: Supported Systems
4.4 Supported Systems: Windows 2000/XP/VISTA/7 and MAC OS 9.0 and higher 4.4.1 System Expansion for Windows Overview This appendix describes the procedures needed with Microsoft Windows for expanding file systems that have been created on volumes that have increased in size, while preserving all of your existing data. -
Page 20: Package Contens
“Unallocated” was not accessible for data usage. After using the disk part utility to extend the hard drive partition/volume capacity, the Windows host side matches the virtual hard drive partition/volume. 5. Package contens FANTEC MR-35VU3R - User manual - AC Cable - USB Cable...
