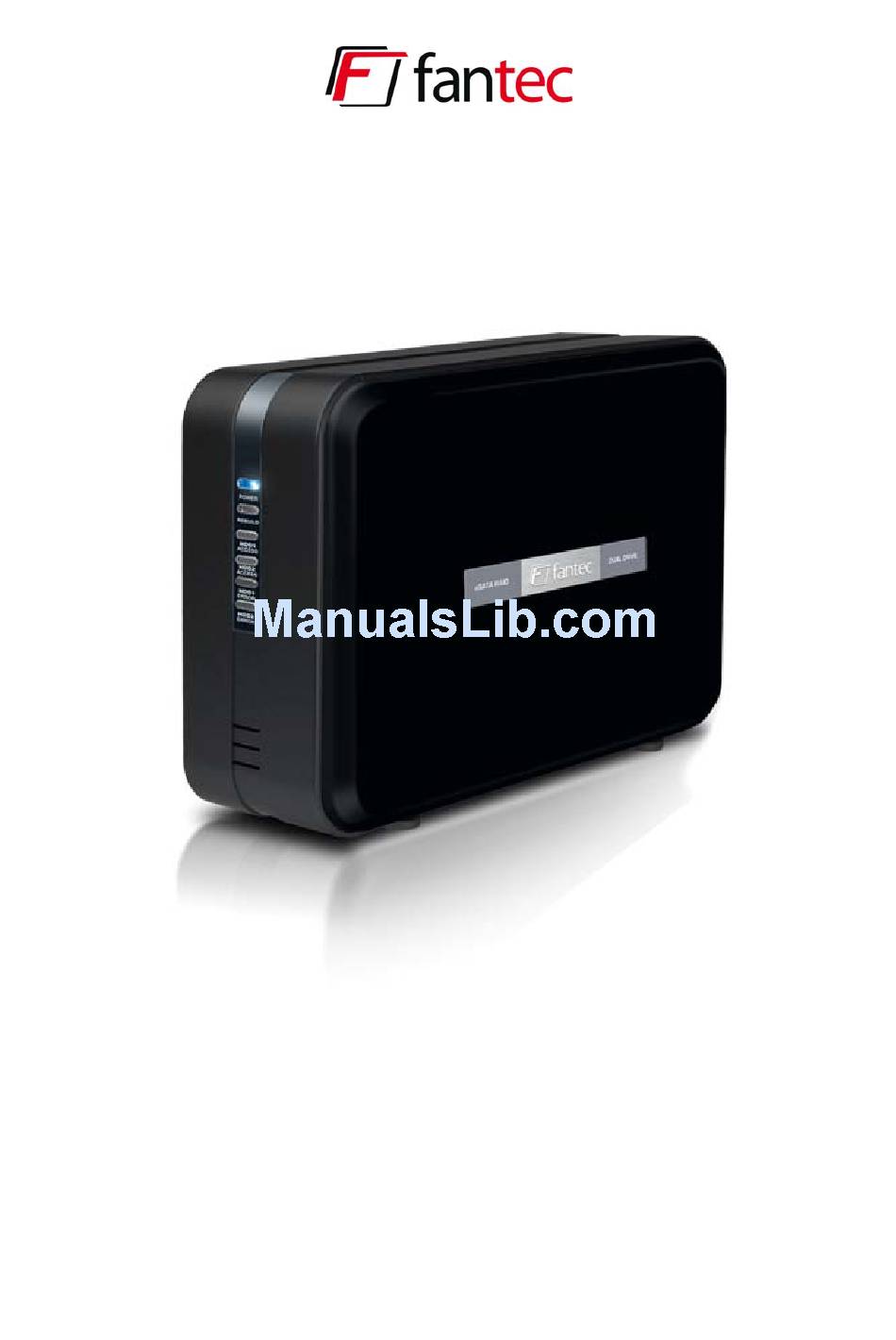

- Page 1 DB-R35DUE User Manual English...
-
Page 2: Detail View
Detail View: Front View: 1. Power indicator 2. Rebuild indicator 3. HDD1 access indicator 4. HDD2 access indicator 5. HDD1e indicator 6. HDD2 error indicator 7. Ventilation Rare View: 1. Power switch 2. Power receptacle 3. USB 2.0 port 4. Fan for ventilation 5. - Page 3 For the first time usage, please install one main source HDD and power “on” DB-R35DUE. Wait until “error” indicator on the second HDD lights on, system had set first HDD to Main HDD then power “off” DB-R35DUE. Please install second HDD and power “on”...
-
Page 4: System Requirements
Both HDDs have to be the same brand and model number when using “RAID function”. When changing usage mode (Single Mode, RAID0 Mode or RAID1 Mode) will require re-format the HDDs. Make sure back-up all data before doing so. System Requirements PC Requirements •... -
Page 5: Hard Drive Assembly
Hard Drive Assembly: To remove the cover of DB-R35DUE: Please unscrew and remove the screws on the bottom of unit. Only one side (top) of screws needs to remove. Top side is the side where power switch is. Insert the... - Page 6 4. Recover the top plate of DB-R35DUE and fasten the screws prior remove. Now installation is complete, please attach power core and connect DB-R35DUE with USB cable to computers. DB-R35DUE is ready to use. 6 / 12...
- Page 7 HDD holder and DB-R35DUE is intact. At this point, please connect DB-R35DUE to power source and turn on the unit. (no need to connect to computer.) DB-R35DUE will automatically build a RIB table to First HDD. This way is for DB-R35DUE to recognize the source HDD. After the RIB table is written on to HDD, the error light indicator of second HDD will light.
- Page 8 DB-R35DUE will perform “REBUILT” function. This copies an identical data from HDD1 to HDD2. Rebuilt can be done off-line. After Rebuilt indicator LED goes off and DB-R35DUE is ready to use. Rebuilding data might take several hours depend on the capacities of HDDs.
-
Page 9: System Setup
System Setup: Connection to your computer: Few cautions before using RAID enclosure 1. Do not cover or block the ventilation holes on the enclosure. 2. Check for visible damage on unit, accessories and cables before tuning on the power. 3. Do not expose the enclosure to water and humid conditions. Setting Mode: JBOD - Single Mode: Computer will show up as two independent drives. - Page 10 HDD not present.. For installation of the DB-R35DUE, please refer to Hard Drive Assembly. Note: For each time changing the “Mode” of DB-R35DUE, Please use RIB-Cleaner program in our CD-ROM to clean the RIB table of the HDD.
- Page 11 If wish to change the setting, please refer to Hard Drive Assembly for correctly way of setting. 1. Turn on PC and start Windows. 2. Connect (USB or eSATA) DB-R35DUE and turn on the power. 3. Windows will search and install drive automatically. 4. Open “My Computer” and “external hard drive” will appear.
- Page 12 1. Drag the external hard drive to trash bin. 2. Turn off the power. Note: If user wishes to use DB-R35DUE on both Windows and Mac OS system, we recommend that HDD to be formatted at FAT32. Also, please do the formatting under Windows OS.
