Fantec MB-X10U31 Manual

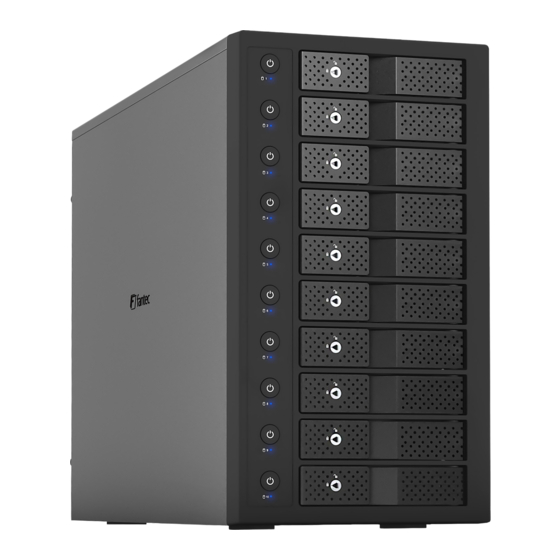

FANTEC MB-X10U31
10x3,5" SATA HDD USB3.1 Generation II
Manual
1
Information
Step
Operation System
Windows 7, 8, 10
Mac OS 10.5 or later
Linux Kernel 2.4 or later
Enviroment
Temperature 5°C ~ 55°C
USB 3.1 Type-C connection
USB 3.1 Type-C connection, Gen II up to 10 Gbps.
USB 2.0/3.0 compatible
Additional cable required, cable converter adapters
not recommended
Smart Fan
Smart fan controlled by the built-in thermal sensor.
2
Hints
Step
Follow all instructions.
• Do not use the device in the immediate vicinity of water.
• Clean the device with a soft, dry cloth.
• Do not block ventilation holes.
• Perform the installation according to these instructions.
• Do not operate the device in the immediate vicinity of heat sources
such as heaters, or other devices that give off heat.
• Lay the power cord so that nobody can trip over it.
Make sure that the cables are not pinched and that
no heavy objects are parked on them.
• Use only accessories recommended by the manufacturer.
• Disconnect the power plug during a thunderstorm or
if you do not use the device for a long time.
• Always contact our service team for repairs.
Maintenance is required if device, power cord or plug
damaged, liquids or foreign objects in the device
have penetrated, or the device is not working normally or
was dropped.
• Do not shake the device, do not drop it.
• Do not use the device during operation.
• Do not pull the power plug by the cable from the socket.
• Before you turn off the power or turn off a hard drive or
unplug the USB cable, make sure partitions in use
are no longer actively used by your operating system. Lead
a so-called "unmounting" or "hanging out" ("eject").
Typ-C 10G
Version 1.0
Humidity 20％ ~ 80 ％
Please visit our website for more information:
www.fantec.de
service@fantec.de
3
Front Panel
Step
LED Indication / Button
Description
1. Power button for each hard drive
2. Status LED for each hard drive:
lights up blue: hard disk is switched on and active.
flashes purple: the hard disk is being accessed.
lights up red: the slot is switched on, but there is no hard drive
in the slot or the hard disk is defective.
LED is off: the hard disk is switched off,
or the hard disk is inactive.
3. Ability to lock for each disk.
4. Door handle on each front door for each hard drive.
5. Slot for each hard drive.
Door keys
5
