5. 5

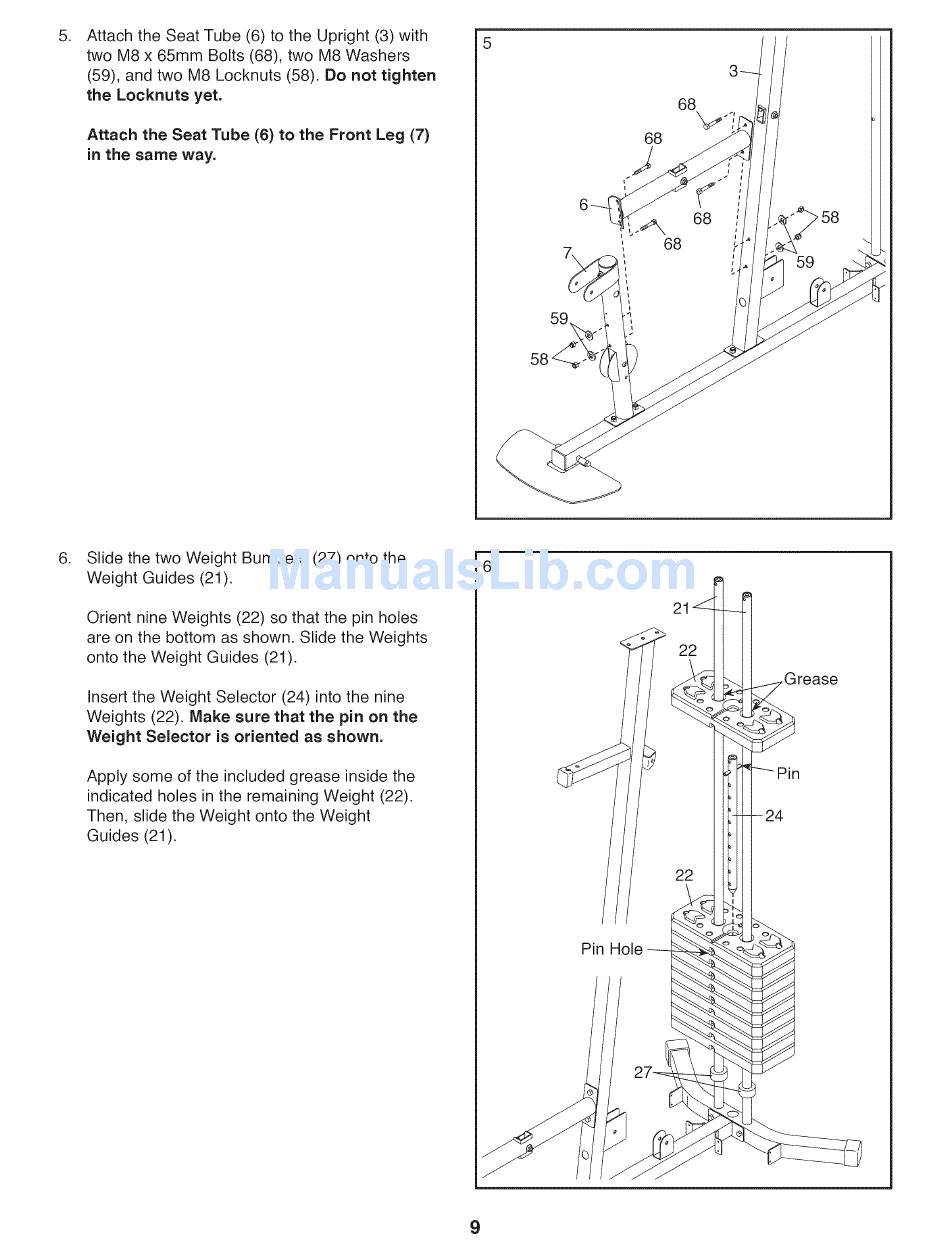

Attach the Seat Tube (6) to the Upright (3) with
two M8 x 65mm Bolts (68), two M8 Washers
(59), and two M8 Locknuts (58). Do not tighten
the Locknuts yet.
Attach the Seat Tube (6) to the Front Leg (7)
in the same way.
59
68
68
68
,
Slide the two Weight Bumpers (27) onto the
Weight Guides (21).
Orient nine Weights (22) so that the pin holes
are on the bottom as shown. Slide the Weights
onto the Weight Guides (21).
Insert the Weight Selector (24) into the nine
Weights (22). Make sure that the pin on the
Weight Selector is oriented as shown.
Apply some of the included grease inside the
indicated holes in the remaining Weight (22).
Then, slide the Weight onto the Weight
Guides (21).
Pin Hole
Grease
24
22
9
