CABLE DIAGRAM

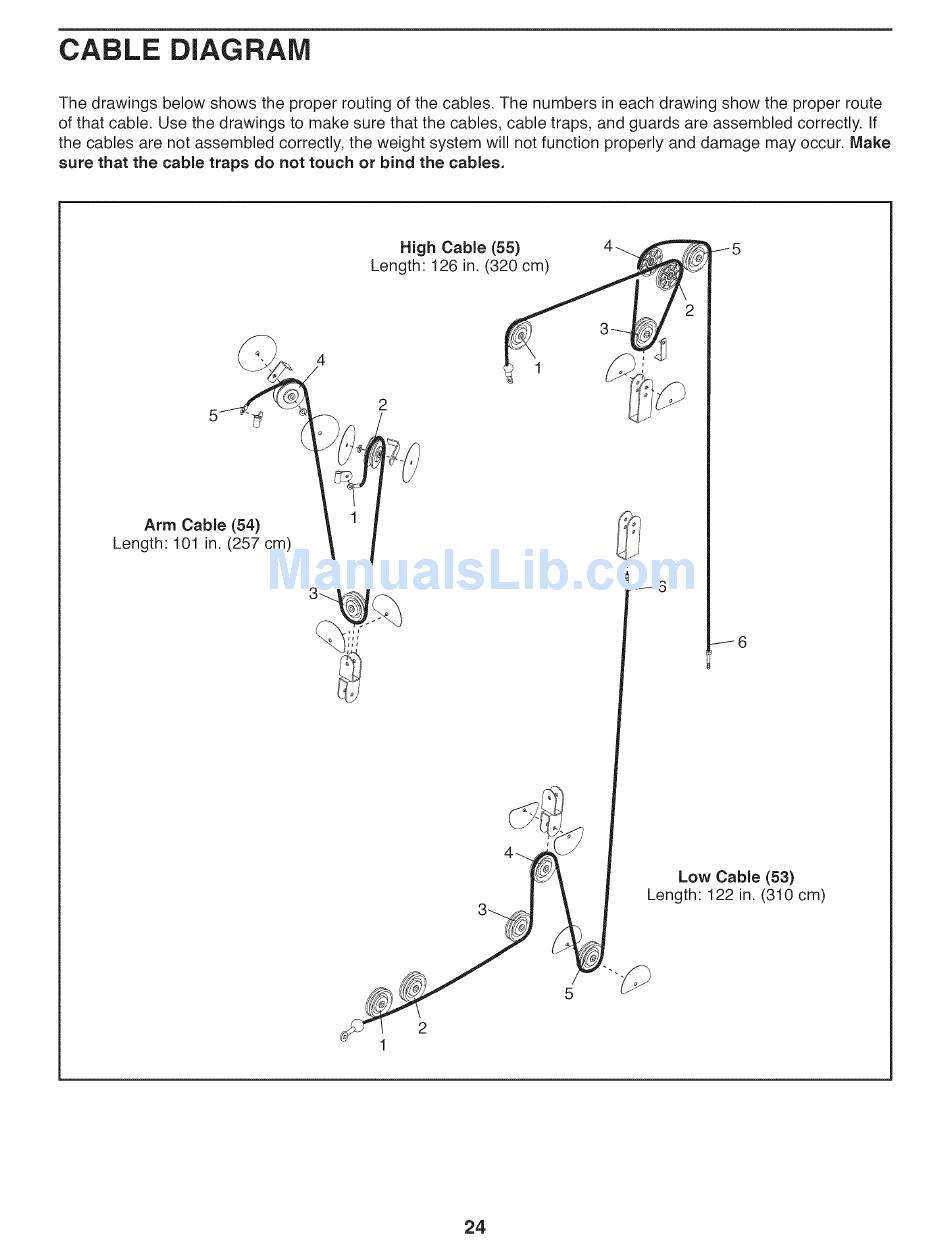

The drawings below shows the proper routing of the cables. The numbers in each drawing show the proper route
of that cable. Use the drawings to make sure that the cables, cable traps, and guards are assembled correctly. If
the cables are not assembled correctly, the weight system will not function properly and damage may occur. Make
sure that the cable traps do not touch or bind the cables.
4
Arm Cable (54)
Length: 101 in. (257 cm)
High Cable (55)
Length 126 in. (320 cm)
J6
Low Cable (53)
Length: 122 in. (310 cm)
5
