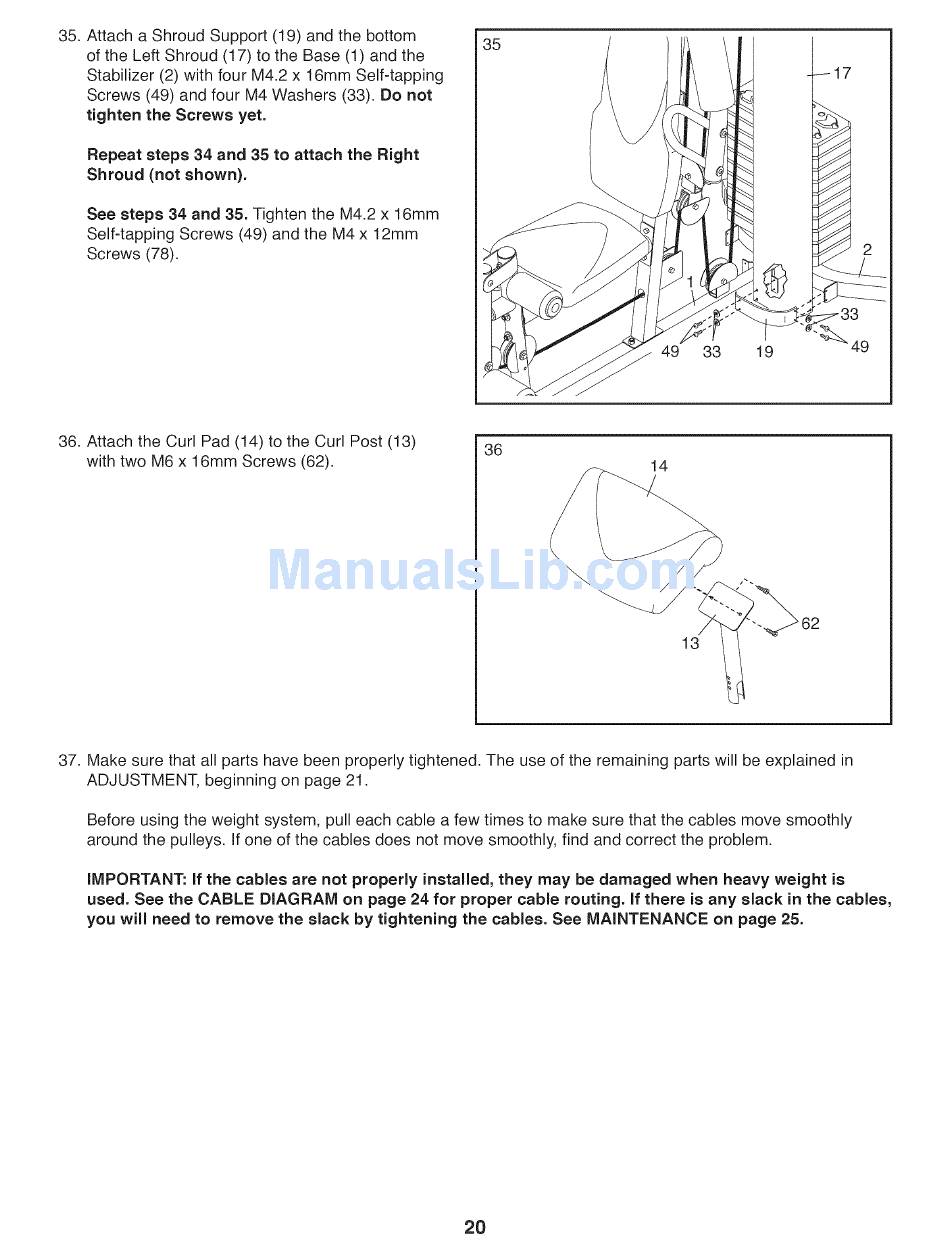

35. Attach a Shroud Support (19) and the bottom
of the Left Shroud (17) to the Base (1) and the
Stabilizer (2) with four M4.2 x 16mm Self-tapping
Screws (49) and four M4 Washers (33). Do not
tighten the Screws yet.
Repeat steps 34 and 35 to attach the Right
Shroud (not shown).
See steps 34 and 35. Tighten the M4.2 x 16mm
Self-tapping Screws (49) and the M4 x 12mm
Screws (78).
35
49
33
19
49
36. Attach the Curl Pad (14) to the Curl Post (13)
with two M6 x 16mm Screws (62).
36
14
13
37. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENT, beginning on page 21.
Before using the weight system, pull each cable a few times to make sure that the cables move smoothly
around the pulleys. If one of the cables does not move smoothly, find and correct the problem.
iMPORTANT: if the cables are not properly installed, they may be damaged when heavy weight is
used. See the CABLE DIAGRAM on page 24 for proper cable routing,
if there is any slack in the cables,
you will need to remove the slack by tightening
the cables. See MAINTENANCE
on page 25.
2O
