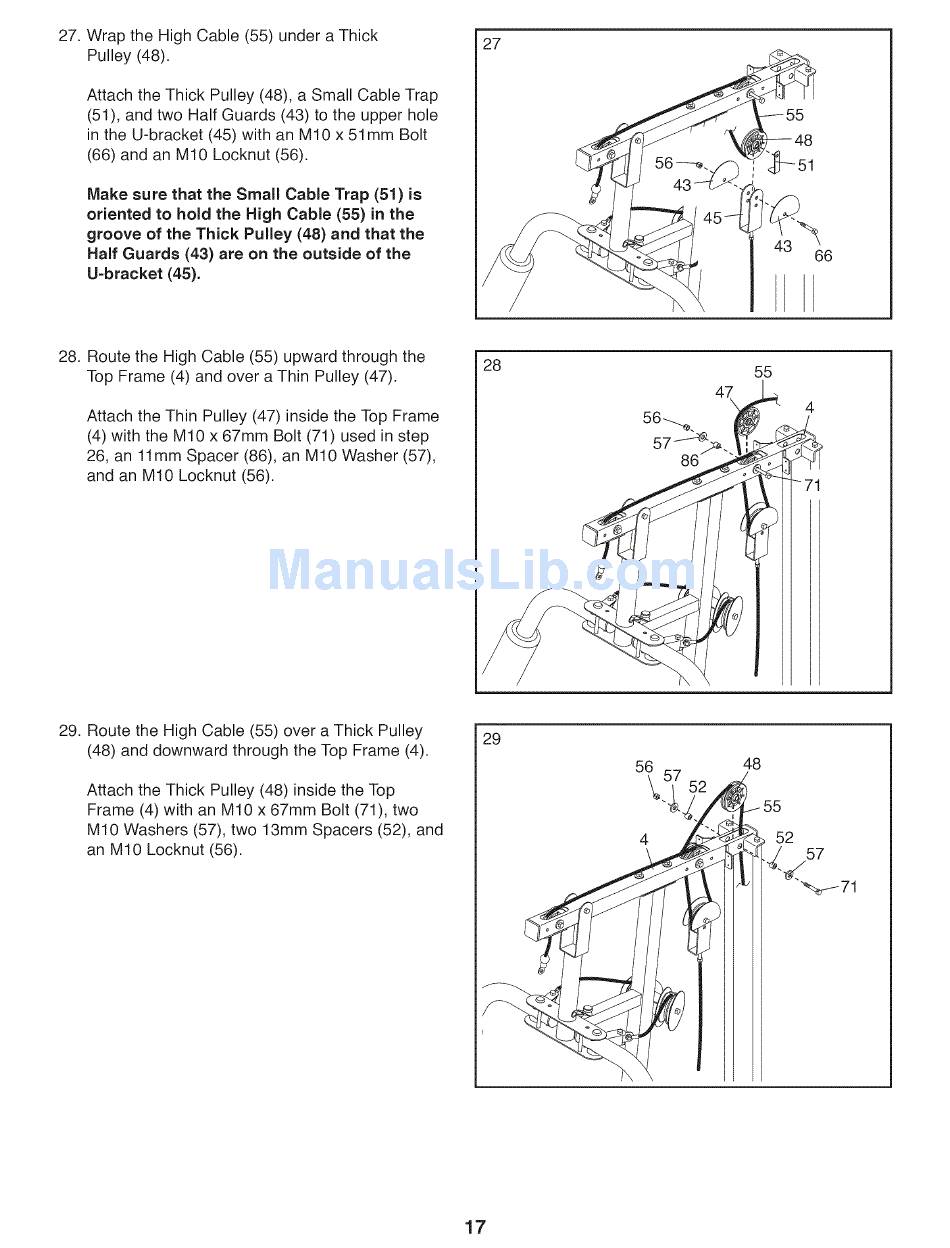

27. Wrap the High Cable (55) under a Thick
Pulley (48).
Attach the Thick Pulley (48), a Small Cable Trap
(51), and two Half Guards (43) to the upper hole
in the U-bracket (45) with an M10 x 51mm Bolt
(66) and an M10 Locknut (56).
Make sure that the Small Cable Trap (51) is
oriented to hold the High Cable (55) in the
groove of the Thick Pulley (48) and that the
Half Guards (43) are on the outside of the
U=bracket (45).
27
66
28. Route the High Cable (55) upward through the
Top Frame (4) and over a Thin Pulley (47).
Attach the Thin Pulley (47) inside the Top Frame
(4) with the M10 x 67mm Bolt (71) used in step
26, an 11mm Spacer (86), an M10 Washer (57),
and an M10 Locknut (56).
28
47
\
55
4
71
29. Route the High Cable (55) over a Thick Pulley
(48) and downward through the Top Frame (4).
Attach the Thick Pulley (48) inside the Top
Frame (4) with an M10 x 67mm Bolt (71), two
M10 Washers (57), two 13mm Spacers (52), and
an M10 Locknut (56).
29
56
4
\
48
_52 57
" ._.
"_/71
