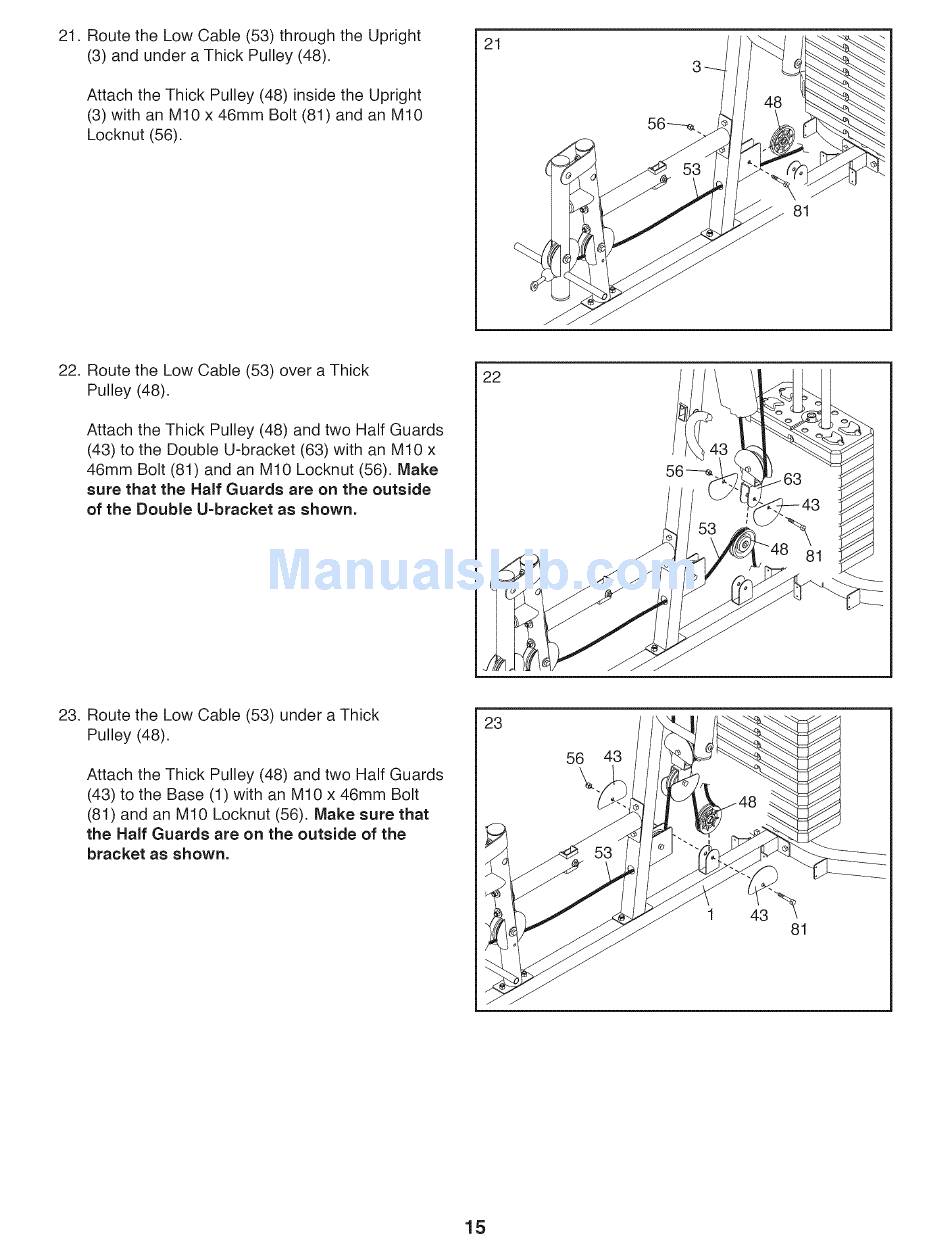

21. Route the Low Cable (53) through the Upright
(3) and under a Thick Pulley (48).
Attach the Thick Pulley (48) inside the Upright
(3) with an M10 x 46mm Bolt (81) and an M10
Locknut (56).
21
J
81
22. Route the Low Cable (53) over a Thick
Pulley (48).
Attach the Thick Pulley (48) and two Half Guards
(43) to the Double U-bracket (63) with an M10 x
46mm Bolt (81) and an M10 Locknut (56). Make
sure that the Half Guards are on the outside
of the Double U=bracket as shown.
22
23. Route the Low Cable (53) under a Thick
Pulley (48).
Attach the Thick Pulley (48) and two Half Guards
(43) to the Base (1)with an M10 x 46mm Bolt
(81) and an M10 Locknut (56). Make sure that
the Half Guards are on the outside of the
bracket as shown.
23
56
43
15
