Heath Zenith SL-6105 Installation Manual

OFF AUTO ON
Included are:
• The sensor switch
• Cover plate
• 3 wire connectors
• 2 large screws
• 2 small screws.
INSTALLATION
SELECT A LOCATION
The sensor is more sensitive to motion across the
front of the sensor than to motion towards the
sensor.
The detector senses heat in motion and possibly
heat sources that change temperature quickly.
Therefore, to avoid false triggering, avoid plac-
ing the sensor where it will be aimed at air
conditioners, heaters, and other sources of heat
or cold.
© 2003 DESA Specialty Products™
Motion Sensor
Wall Switch
SL-6105

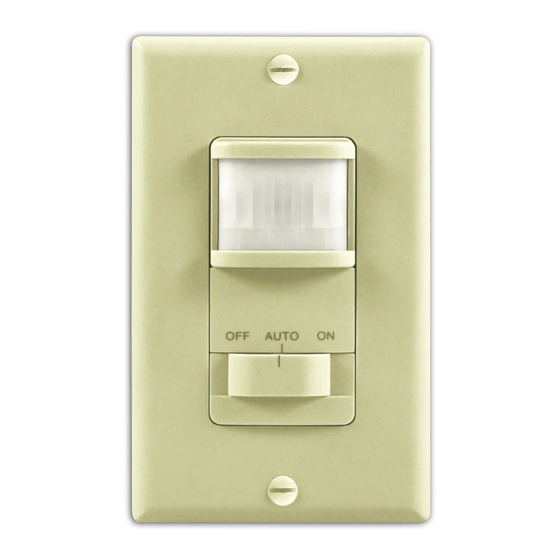

The SL-6105 Motion Sensor Wall Switch detects motion to turn on
lights for an adjustable amount of time. A built-in photo cell can be
set to keep lights off when the lights aren't needed. The unit has
excellent sensitivity and a wide 150° detection range. It can be used
with incandescent lighting as well as rapid start fluorescent lighting.
Installation is as easy as replacing a wall switch. However, some
codes require installation by a qualified electrician.
• 150° motion detection angle
• Adjustable on-time from 5 sec. to 20 min.
• Adjustable photocell
• Works with incandescent and rapid start
fluorescent lighting
• Works with motors up to 1/8 hp
• Slide switch selectable OFF, ON, and AUTO modes
15 ft. (4.6 m)
Features include:
30 ft.
(9.1 m)
Figure 1 - Typical Plan View of
Coverage
0
595-4881-09
