Summary of Contents for Fisher & Paykel GB IE
-
Page 1: Installation Instructions

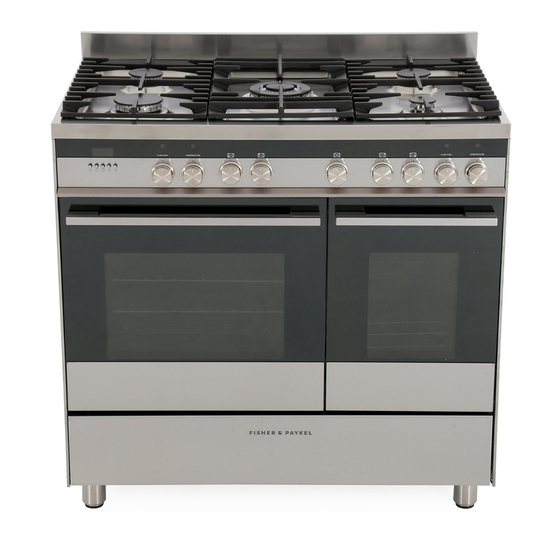

Installation instructions User guide Freestanding cooker OR90 double oven models GB IE... -
Page 3: Table Of Contents
Contents Safety and warnings Installation instructions Introducing your cooker Using your gas cooktop Cooktop troubleshooting Using your multifunction oven for the first time Clock and timer Using your oven Cooking functions Automatic cooking Using your compact oven for the first time... -
Page 4: Safety And Warnings
Safety and warnings Installation Electrical Shock Hazard Always disconnect the cooker from the mains electricity supply before carrying out any maintenance operations or repairs. Failure to do so may result in death or electrical shock. Cut Hazard Take care - panel edges are sharp. Failure to use caution could result in injury or cuts. - Page 5 Safety and warnings To connect the cooker to the mains, do not use adapters, reducers or branching devices as they can cause overheating and burning. This cooker must be connected to a suitable double pole control unit adjacent to the cooker. No diversity can be applied to this control unit.
-
Page 6: Operation
Please keep the following guidelines in mind when you are using it: Explosion Hazard Do not store flammable materials such as gasoline near the cooktop. Do not store flammable material in the ovens or in the storage compartment. Do not spray aerosols near the cooktop during use. - Page 7 Do not use an asbestos mat or decorative covers between the flame and the saucepan as this may cause serious damage to your cooktop. Do not place aluminium foil or plastic dishes on the cooktop burners. Do not let large saucepans or frying pans overlap the bench as this can deflect heat onto your benchtop and damage the surface.
-
Page 8: Installation Instructions
This cookers has class “2/1” overheating protection so that it can be installed next to a cabinet. If the cooker is installed adjacent to furniture which is higher than the gas hob cooktop, a gap of at least 200 mm must be left between the side of the cooker and the furniture. -
Page 9: Fitting The Adjustable Feet
Installation instructions Fitting the adjustable feet Important! Using the supplied adjustable feet is MANDATORY. For safety reasons and to ensure adequate ventilation, the cooker chassis MUST NOT sit directly on the floor, a plinth, or other support surface. The adjustable feet must be fitted to the base of the cooker before use. Rest the rear of the cooker on a piece of the polystyrene packaging exposing the base for the fitting of the feet. -
Page 10: Moving The Cooker
Before assembling remove any protective film/adhesive tape. Remove the two spacers “A” and the screw “B” from the rear of the cooktop. Assemble the backguard as shown and fix it by screwing the central screw “B” and the spacers “A”. - Page 11 Stability bracket (GB & IE only) We recommend a stability bracket is fitted to the cooker. You can buy the type of bracket shown here from most plumbing and DIY shops. Wall fixing Wall fixing Figure 10 Fitting a stability bracket Installation instructions Brackets Brackets...
- Page 12 Installation instructions Ventilation requirements (GB & IE only) The appliance should be installed into a room or space with an air supply in accordance with BS 5440-2:2000. For rooms with a volume of less than 5 m required. For rooms with a volume of between 5 m will be required unless the room has a door which opens directly to the outside air in which case no permanent ventilation is required.
- Page 13 Installation to Natural gas Installation to Natural Gas must conform to the Code of Practice, etc. The supply pressure for Natural Gas is 20 mbar. Installation to Liquid Petroleum gas This appliance must only be connected to LPG after an LPG conversion kit has been fitted. The installation must conform to the relevant British Standards.
- Page 14 Select the injectors to be replaced according to the “Table for the choice of the injectors”. To replace the injectors Remove pan supports and burners from the cooktop. Using a wrench substitute the nozzle injectors with those most suitable for the kind of gas for which it is to be used.
- Page 15 Installation instructions Adjusting The Minimum Burner Setting Check whether the flame spreads to all burner ports when the burner is lit with the gas tap set to the minimum position. If some ports do not light, increase the minimum gas rate setting. Check whether the burner remains lit even when the gas tap is turned quickly from the maximum to the minimum position.
- Page 16 Installation instructions Table for the choice of the injectors Cat: II 2H3+ BURNERS NOMINAL POWER [KW] AUXILIARY 1,00 SEMIRAPID 1,75 RAPID 3,00 TRIPLE-RING WOK 3,50 Lubrication of the gas taps A qualified technician must lubricate the gas taps. Important! All intervention regarding installation maintenance and conversion of the appliance must be fulfiled with original factory parts.
- Page 17 Connecting the feeder cable To connect the feeder cable to the cooker: Remove the screws securing the cover “A” on the rear of the cooker. Feed the supply cable through the cable clamp “D”. See the ‘Feeder cable section’ following for the correct size for the cable.
-
Page 18: Introducing Your Cooker
This guide introduces you to all its special features. We recommend you read the whole guide before using your new cooker, for both safety and cooking success. For more information, go to www.fisherpaykel.com Gas cooktop controls: Front left (rapid) burner control knob Rear left (semi-rapid) burner control... -
Page 19: Gas Burners
= closed valve = maximum aperture or flow = minimum aperture or flow You can choose to cook at any heat between Using your gas cooktop Figure 19 Burner control knob Figure 18 Cooktop layout , but never between and OFF. -
Page 20: Flame Failure Safety Feature
Using your gas cooktop Before using your cooktop Before using your new cooktop, please: Read this user guide, taking special note of the safety and warnings section. Turn the cooker on. Make sure all controls are turned off. Lighting the cooktop Choose the control knob for the burner you want to use. - Page 21 Using your gas cooktop If the cooktop does not light If the cooktop does not light, check that: The cooker is switched on. The gas is turned on. You have held down the knob for at least ten seconds. The ignitors are sparking. If the ignitors are not sparking, they may be dirty or wet. Clean them with a toothbrush and methylated spirits, as shown.
- Page 22 Do not use the stand for ordinary, flat-bottomed saucepans. The wok stand MUST BE PLACED ONLY over the pan support for the triple ring wok burner. The cooktop becomes very hot during operation. Keep children well out of reach. Minimum...
-
Page 23: Cooktop Troubleshooting
Call your service person to service the cooker. If there is an electricity failure, you can still use your cooktop. Light the burners by holding a match close to the side of the burner and turning the control knob to the High position. Wait until the flame is... -
Page 24: Using Your Multifunction Oven For The First Time
Using your multifunction oven for the fi rst time Using your oven for the first time Control buttons Before using your new oven, please: Read this user guide, taking special note of the ‘Safety and warnings’ section. Remove all accessories and packaging. Set the clock. -
Page 25: Clock And Timer
Buttons: Timer Cooking time End of cooking time Decreases the number shown on the display or changes the volume of the beeps Increases the number shown on the display Illuminated symbols: - flashing - oven in automatic position but not set - steady illumination - oven set for automatic cooking Cooking taking place Timer in operation... -
Page 26: Using Your Oven
Using your oven Figure 26 Function knob Select the function using the function knob. The oven lights will come on. Select the temperature using the temperature control knob. The oven temperature indicator light, above the temperature knob on the control panel, will glow until the oven has reached the set temperature, and then it will go out. -
Page 27: Cooking Functions
OVEN LAMP Only the oven light comes on. It remains on in all the cooking functions. BAKE The upper and lower heating elements come on. BAKE is the traditional method of cooking. It is best to cook on only one shelf at a time in this function. GRILL The grill at the top of the oven comes on. - Page 28 Cooking functions FAN BAKE The upper and lower heating elements and the fan come on. Important! Safe food handling: leave food in the oven for as short a time as possible before and after cooking or defrosting. This is to avoid contamination by organisms which may cause food poisoning. Take particular care during warmer weather.
-
Page 29: Automatic Cooking
Use automatic cooking to automatically turn the oven on, cook, and then turn the oven off. Check the clock shows the correct time. Select the function and temperature. The oven will come on. Decide how long the food will take to cook, allowing time for preheating if necessary. button. -
Page 30: Using Your Compact Oven For The First Time
Using your compact oven for the fi rst time Before using your new oven, please: Read this user guide, taking special note of the ‘Safety and warnings’ section. Remove all accessories and packaging. Condition the oven: Put in the shelf and tray. Make sure you fit the shelf so that the safety catch, which stops it sliding out, faces down. -
Page 31: Using Your Compact Oven
Figure 30 Compact oven function and temperature knobs Select the function using the function knob. The oven lights will come on. Select the temperature using the temperature control knob. The oven temperature indicator light, above the temperature knob on the control panel, will glow until the oven has reached the set temperature, and then it will go out. -
Page 32: Using The Dish-Warming Shelf
Using the dish-warming shelf The dish-warming shelf can be used to hold dishes or for cooking. If you want to warm plates, put the oven on bake at about 60 °C. Take care when removing plates, as they can get hot. To use the shelf to hold dishes Turn it with the plate supports facing up. -
Page 33: General Advice
Cleaning the gas cooktop Maintenance Period • Clean gas cooktop as per following instructions. Daily • Remove all burner parts, and clean using a non-abrasive Monthly •... - Page 34 It is very important to check that the burner flame spreader and the cap have been correctly positioned. Failure to do so can cause serious problems. Note: To avoid damage to the electric ignition do not try to light the cooktop when the burners are not in place.
- Page 35 Care and cleaning Replacing the triple ring wok burner To replace the wok burner, fit the burner ring to the housing as shown by the arrow in the figure following. Make sure the burner is not able to rotate. Probe Ignitor Figure 35 Replacing the triple ring wok burner Figure 34 Triple ring wok burner parts...
- Page 36 Care and cleaning Cleaning the inside of your ovens Do not use abrasive cleaners, cloths or pads to clean the enamel. Do not use any oven cleaners, abrasive cleaners, ammonia-based cleaners, products containing acids or alkalis, or detergents on the catalytic panels (not supplied with all models). Fig.36 Removing the side racks To make cleaning easier, you can remove the side racks, the oven door, and the fat filter.
- Page 37 Care and cleaning Cleaning the enamel cavity Clean the enamel on the inside of the oven when it has cooled down, using household detergents or an ammonia-based cleaner. You may use ‘off the shelf’ oven cleaners, if you carefully follow the manufacturers’ instructions. Cleaning the fat filter Clean the fat filter after every use.
-
Page 38: Cleaning The Oven Door Glass
Care and cleaning Cleaning the oven door glass Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they scratch the surface, which may result in shattering of the glass. The inner glass door panel can easily be removed for cleaning by unscrewing the two screws, as shown. -
Page 39: Removing The Oven Door(S)
Removing the oven door(s) The oven door(s) can easily be removed as follows: Open the door completely. The swivel retainers of the rh and lh hinges (Fig. 40a) are hooked onto the metal bar above them (Fig. 40b). Lift the oven door slightly. The notch on the bottom of the hinge will disengage (Fig. -
Page 40: Replacing The Oven Lamp
Care and cleaning Replacing the oven lamp Let the oven cavity and the heating elements cool down. Remove the protective cover B. Unscrew and replace the bulb A with a new one suitable for high temperatures (300°C) with the specifications: 230-240V 50 Hz, 15W, E14 Refit the protective cover. -
Page 41: Warranty And Service
Before you call for service or assistance ... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: Your product is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance, please refer to the Service & Warranty book for warranty details and your nearest Authorised Service Centre, or contact us through our website: www.fisherpaykel.com... - Page 44 You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available. www.fisherpaykel.co.uk www.fisherpaykel.ie GB IE Freestanding cooker user guide Published: 07/2009 Part No. 599380 C F&P Italy Part No. 1102980-ß3...
