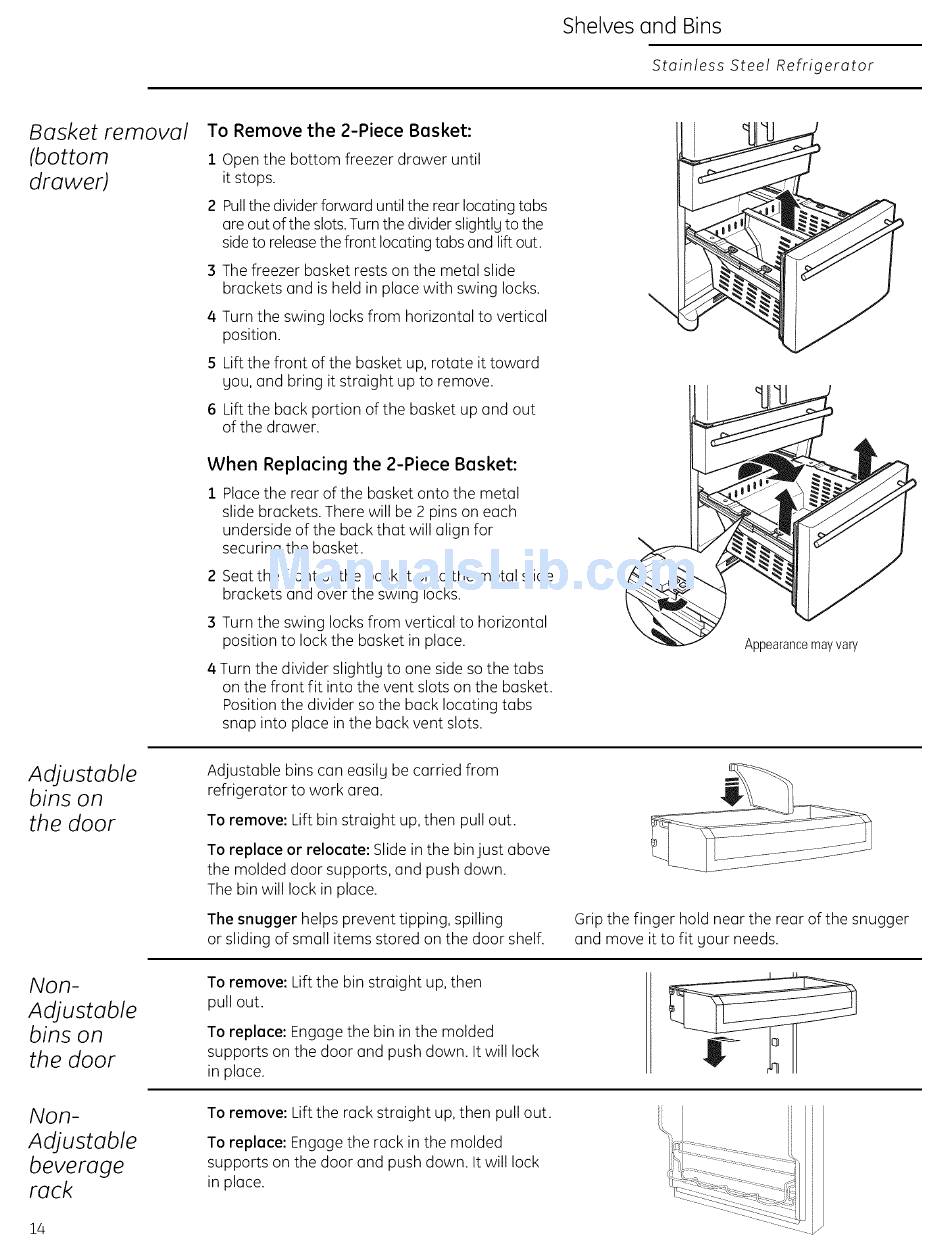

GE Monogram Owner's Manual page 14

Shelves and Bins
Stainless Steel Refrigerator
Basket removal
(bottom
drawer)
To Remove the 2-Piece Basket:
1 Open the bottom freezer drawer until
it stops.
2 Pullthe divider forward until the rear locating tabs
are out of the slots. Turn the divider slightlg to the
side to release the front locating tabs and lift out.
3 The freezer basket rests on the metal slide
brackets and is held in place with swing locks.
4 Turn the swing locks from horizontal to vertical
position.
5 Lift the front of the basket up, rotate it toward
gou, and bring it straight up to remove.
6 Lift the back portion of the basket up and out
of the drawer.
When Replacing the 2-Piece Basket:
Place the rear of the basket onto the metal
slide brackets. There will be 2 pins on each
underside of the back that will align for
securing the basket.
Seat the front of the basket onto the metal slide
brackets and over the swing locks.
3 Turn the swing locks from vertical to horizontal
position to lock the basket in place.
Turn the divider slightlg to one side so the tabs
on the front fit into the vent slots on the basket.
Position the divider so the back locating tabs
snap into place in the back vent slots.
Appearance may vary
Adjustable
bins on
the door
Non-
Adjustable
bins on
the door
Non-
Adjustable
beverage
rack
Adjustable bins can easilg be carried from
refrigerator to work area.
To remove: Lift bin straight up, then pull out.
To replace or relocate: Slide in the bin just above
the molded door supports, and push down.
The bin will lock in place.
The snugger helps prevent tipping, spilling
or sliding of small items stored on the door shelf.
Grip the finger hold near the rear of the snugger
and move it to fit gour needs.
To remove: Lift the bin straight up, then
pull out.
To replace: Engage the bin in the molded
supports on the door and push down. It will lock
in place.
To remove: Lift the rack straight up, then pull out.
To replace: Engage the rack in the molded
supports on the door and push down. It will lock
in place.
14
