Summary of Contents for La Crosse Technology WS-9013U

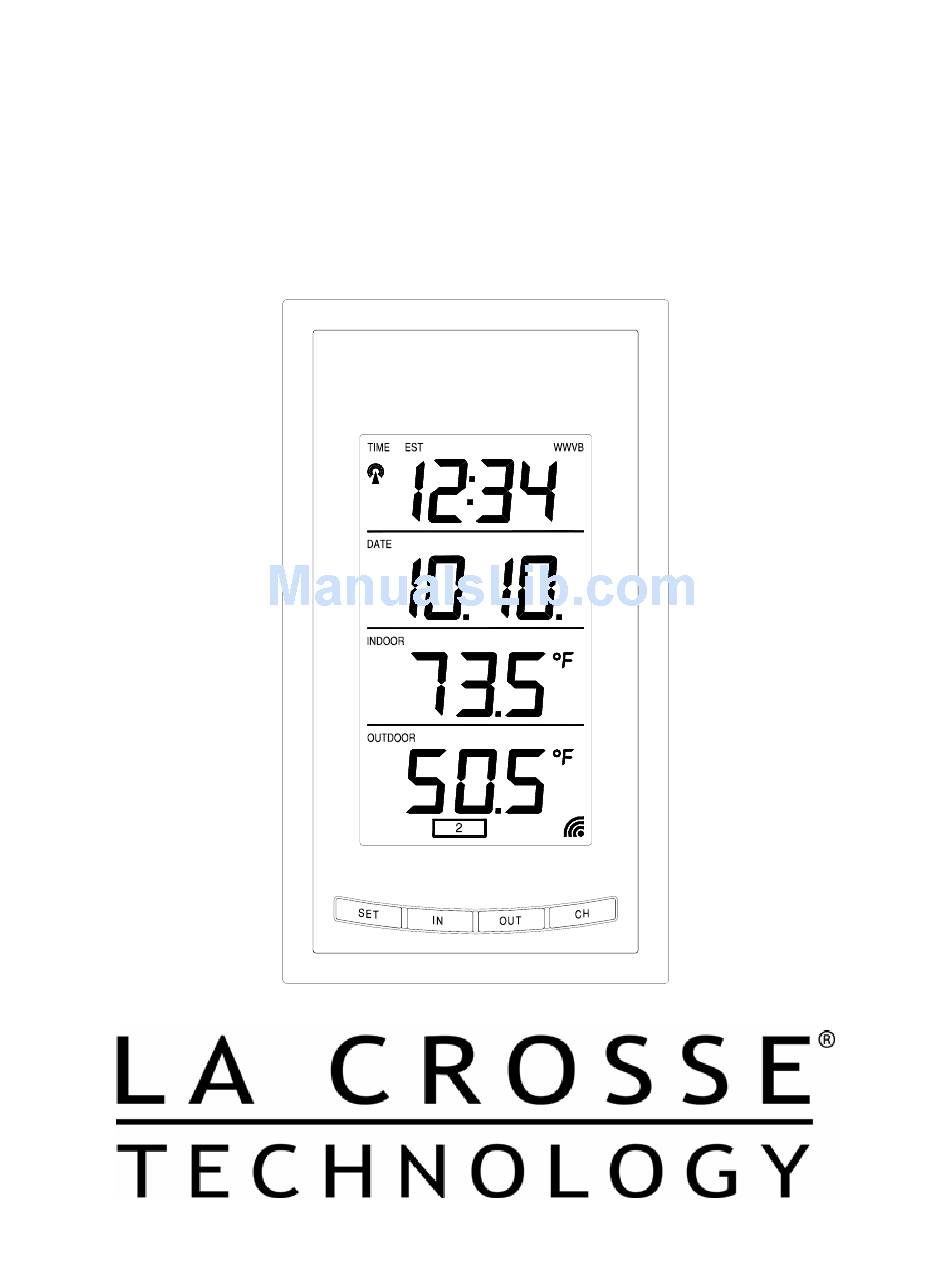

- Page 1 WS-9013U Wireless 433 MHz Radio-controlled Weather Station Instruction Manual...
-
Page 2: Table Of Contents
Topic Page Inventory of Contents/Additional Equipment About WWVB Quick Set-Up Guide Detailed Set-Up Guide Battery Installation Program Mode Programming Sequence Function Keys 12/24 Hour Time Setting Time Zone Setting Daylight Saving Time Setting 9-10 Time Setting (WWVB & Manual) 10-11 Setting Day, Date and Year 11-12 Selecting °F or °C... -
Page 3: Inventory Of Contents/Additional Equipment
INVENTORY OF CONTENTS 1. The weather station (Figure 1). 2. One TX6U remote temperature sensor with mounting bracket (Figure 2). 3. Three each, ½” Philips screws. 4. One strip double-sided adhesive tape. 5. Instruction Manual and Warranty Card. Figure 2 Time LCD Date LCD Mounting... -
Page 4: About Wwvb
ABOUT WWVB (Radio Controlled Time) The NIST (National Institute of Standards and Technology—Time and Frequency Division) WWVB radio station is located in Ft. Collins, Colorado and transmits the exact time signal continuously throughout the United States at 60 kHz. The signal can be received up to 2, 000 miles away through the internal antenna in the weather station. -
Page 5: Quick Set-Up Guide
QUICK SET-UP GUIDE Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. 1. Have the indoor weather station and remote temperature sensor 3 to 5 apart. 2. Batteries should be out of both units. 3. Place the batteries into the remote temperature sensor first then into the indoor weather station. -
Page 6: Detailed Set-Up Guide
DETAILED SET-UP GUIDE I. BATTERY INSTALLATION A. REMOTE TEMPERATURE SENSOR 1. Remove the mounting bracket. bracket snaps on and off easily. 2. Remove the battery cover, by sliding the cover down. 3. Observing the correct polarity install 2 AA batteries. The batteries will fit tightly (to avoid start-up problems make sure they do not spring free). -
Page 7: Program Mode
PROGRAM MODE Programming Note: If 30 seconds are allowed to pass or either the IN or the OUT button is pressed during programming modes, the unit will set the last information entered—the display will stop flashing and return to normal time-date readings. If you don’t leave the program mode during the programming of sections III through VIII, you can advance to step 3 of the next program setting. -
Page 8: Function Keys
II. FUNCTION KEYS The function keys are operated by pressing the key corresponding to the operation that you want to perform. II. 12 OR 24 HOUR TIME SETTING 1. Press and hold the “SET” button for 3 seconds or until “12 h”... -
Page 9: Daylight Saving Time Setting
4. Select your appropriate Time Zones time zone using “CH” button. During selection of the Time Atlantic Zone, letter EST; Eastern abbreviations for the time CST; Central zones found in North MST; Mountain America will flash across PST; Pacific the top of the TIME LCD. -
Page 10: Time Setting (Wwvb & Manual)
6. Press and release the “SET” button to confirm and advance to the Time setting mode. V. TIME There are two methods by which the time can be set: A) Automatically via WWVB reception or B) Manually. A. WWVB (Remote Control Time) This method requires you to do nothing except wait for the signal to be received and to select a time zone. -
Page 11: Setting Day, Date And Year
Press and release the “SET” button to confirm the hour setting and to advance to the minute setting mode. The minute digits should be flashing. Press and release the "CH” button to change the minutes—increasing the minutes by increments of 1 with each press of the “CH” button. Press and release the “SET”... -
Page 12: Selecting °F Or °C
5. The numeric-month will be flashing in the DATE LCD. Press and release the “CH” button to select to the current month. 6. Press and release the “SET” button to confirm the numeric- month, and to enter the numeric-day setting mode. 7. -
Page 13: Setting The Lcd Contrast
VIII. SETTING THE LCD CONTRAST 1. Press and hold the “SET” button for 3 seconds or until “12h” or “24h” flashes in the DATE LCD. 2. Press and release the “SET” button 10 more times to reach the LCD contrast setting mode. 3. -
Page 14: Indoor Temperature
FEATURES OF THE WS-9013U WWVB Icon (indicates Radio- WWVB Tower Icon (indicates controlled time time reception) function turned on) Low Battery Remote Temperature Satellite icon (indicates Sensor Channel Indicator outdoor transmission) I. INDOOR TEMPERATURE The current indoor is displayed in the INDOOR LCD and is updated every 10 seconds. -
Page 15: Minimum & Maximum Records
III. MINIMUM AND MAXIMUM TEMPERATURE RECORDS The WS-9013U keeps a record of the MINIMUM and MAXIMUM temperature and the time and date of their occurrence—for both the indoor and outdoor modes. A. VIEWING THE INDOOR TEMPERATURE RECORDS 1. Press the “IN” button once. “MIN” appears in the upper... -
Page 16: Units (Set-Up, Viewing & Operation)
WS-9013U. These extra remote temperature sensors can be purchased through the same dealer as this unit, or by contacting La Crosse Technology directly. A TX6U will monitor temperature only, a TX3U will monitor... - Page 17 3. Place all remote temperature sensor units in a numeric sequential order. 4. In sequential order, install batteries (follow the same battery installation procedures seen in section I. A) of the Detailed Set-Up Guide). 5. Install batteries into the indoor weather station. 6.
-
Page 18: Mounting
MOUNTING Note: Before permanently mounting ensure that the indoor weather station is able to receive WWVB signals from the desired location. Also, extreme and sudden changes in temperature will decrease the accuracy of the indoor weather station. To achieve a true temperature reading, avoid mounting where direct sunlight can reach the remote temperature sensor. - Page 19 ensure a secure hold. The mounting surface should be smooth and flat. 2) Remove the protective strip from one side of the tape. Adhere the tape to the designated area on the back of the mounting bracket. 3) Remove the protective strip from the other side of the tape.
-
Page 20: Troubleshooting
3) Remove batteries for five minutes, reinsert and leave the unit alone overnight without pressing buttons. 4) If there are still problems, contact La Crosse Technology. Problem: Hour is incorrect (minute and date are correct). Solution: Be sure correct time zone and daylight saving time is selected. -
Page 21: Specifications
• Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse Technology for repairs. SPECIFICATIONS Temperature measuring range: Indoor: 32°F to 139.8°F with 0.2°F resolution. (0°C to 59.9°C with 0.1°C resolution) “OFL” displayed if outside this range Outdoor: -21.8°F to 157.2°F with 0.2°F... -
Page 22: Warranty Information
La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. - Page 23 State. Some States do no allow the exclusion of consequential or incidental damages therefore the above exclusion of limitation may not apply to you. For warranty work, technical support, or information contact: La Crosse Technology 2809 Losey Blvd. S. La Crosse, WI 54601 Phone: 608.782.1610 Fax: 608.796.1020 e-mail: support@lacrossetechnology.com (warranty work) sales@lacrossetechnology.com...
