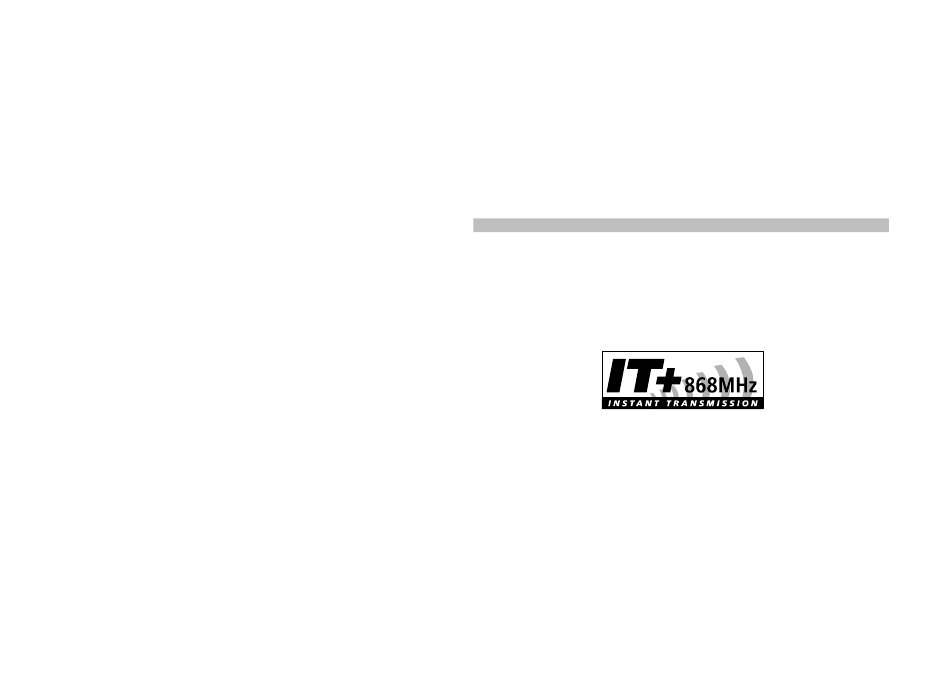

868 MHZ TEMPERATURE STATION
INSTRUCTIONS MANUAL
INTRODUCTION:
Congratulations on purchasing this innovative 868MHz Temperature Station which displays the time with up
to the minute indoor and up to three outdoor temperature readings. To enjoy the full benefits of this
innovative product, please read this operating manual.
17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for La Crosse Technology WS-9014
Summary of Contents for La Crosse Technology WS-9014
- Page 1 868 MHZ TEMPERATURE STATION INSTRUCTIONS MANUAL INTRODUCTION: Congratulations on purchasing this innovative 868MHz Temperature Station which displays the time with up to the minute indoor and up to three outdoor temperature readings. To enjoy the full benefits of this innovative product, please read this operating manual.
- Page 2 Temperature Station Hanging hole SET/CHANNEL key RESET/+/MIN/MAX Detachable stand Temperature Transmitter: Remote transmission of outdoor temperature to weather station by 868 • MHz signal • Wall mounting case Mounting at a sheltered place. Avoid direct rain and sunshine •...
- Page 3 FEATURES: LCD clock in 12 or 24 hour time display • • Indoor and outdoor temperature reading in degree Celsius (°C) or degree Fahrenheit (°F) • Can receive up to three Outdoor transmitters Indoor and outdoor temperature with Minimum and Maximum records •...
- Page 4 In order to ensure sufficient 868 MHz transmission however, the distance between the Weather Station and the transmitter should not be more than 100 meters (see notes on “Positioning” and “868 MHz Reception”). Note: In the event of changing batteries of the units, ensure the batteries do not spring free from the contacts. Always wait at least 1 minute after removing the batteries before reinserting, otherwise start up and transmission problems may occur.
-
Page 5: How To Install And Replace Batteries In The Temperature Station
displayed on the Temperature Station. If this does not happen after 2 minutes, the batteries will need to be removed from all the units and reset from step 1. Insert the batteries in the third transmitter as soon as the "channel 2" icon and outdoor data are displayed on the Temperature Station. -
Page 6: How To Install And Replace Batteries In The Temperature Transmitter
Replace compartment cover. HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE TRANSMITTER The Temperature Transmitter uses 2 x AA, IECLR6, 1.5V batteries. To install and replace the batteries, please follow the steps below: Slide the battery cover downwards and remove. Insert the batteries, observing the correct polarity (see marking). - Page 7 Time “_;_ _” Indoor and outdoor temperature in degree Celsius (°C) or Fahrenheit (°F) Time Indoor Temperature in ºC or °F Outdoor Temperature in ºC or °F Outdoor transmission signal* Transmitter identification number * When the signal is successfully received by the Weather Station, the outdoor transmission icon will be switched on.
-
Page 8: Time Setting
Either a “: 12h” or “: 24h” will appear on the LCD. If “: 12h” is displayed then the current time display is set to 12-hour time. If “: 24h” is displayed then the current time is set to 24-hour time. To alternate between the two times display mode, simply press the “RESET/+/MIN/MAX”... - Page 9 MINIMUM AND MAXIMUM INDOOR TEMPERATURE RECORDINGS: By pressing the “RESET/+/MIN/MAX” key the current indoor temperature will alternate between the minimum, maximum and current temperature recordings (also changes for outdoor temperature). Once a new indoor temperature high or low is reached, it will automatically set into the Temperature Station’s memory.
- Page 10 temperatures. Only the outdoor temperature display on the LCD will be reset. To reset an outdoor temperature moves to the desired transmitter no. OUTDOOR TEMPERATURE 1, 2, AND 3 If the more than one transmitter is being used, to alternate between the temperature readings of transmitter 1, 2, and 3, simply press the “SET/CHANNEL”...
- Page 11 Transmission can be affected by exposure to extreme temperature conditions. For example, if the weather has been extremely cold (under -25ºC) for an extended period of time then the transmission signal may be weakened. (Please bears this in mind when positioning the transmitter). Note: Should after checking the above list and the outdoor temperature is still not received, then reset the units (see Resetting the Temperature Station below).
-
Page 12: Outdoor Transmitter
OUTDOOR TRANSMITTER: The sensor is supplied with a holder that may be attached to a wall with the two screws supplied. The sensor can also be position on a flat surface by securing the stand to the bottom to the transmitter. To wall mount: Secure the bracket onto a desired wall using the screws and plastic anchors. -
Page 13: Care And Maintenance
The Temperature Transmitter simply clicks in or out of the holder. When inserting or removing the Temperature Transmitter from the wall holder please hold both units securely. CARE AND MAINTENANCE: • Avoid placing the units in areas prone to vibration and shock as these may cause damage. Avoid areas where the units can be exposed to sudden changes in temperature, i.e. -
Page 14: Liability Disclaimer
Interior data checking intervals Indoor Temperature Every 15 seconds Outdoor temperature data checking interval: Every 4 seconds (or every 15 minutes if data are lost and display “--.-“) Transmission range up to 100 meters (open space) Power consumption Temperature Station 2 x AA, IEC LR6, 1.5V batteries Transmitter 2 x AA, IEC LR6 1.5V batteries... - Page 15 The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any • consequences that occur should an inaccurate reading take place. • This product is not to be used for medical purposes or for public information. The specifications of this product may change without prior notice. •...
