Summary of Contents for Shindaiwa RS41

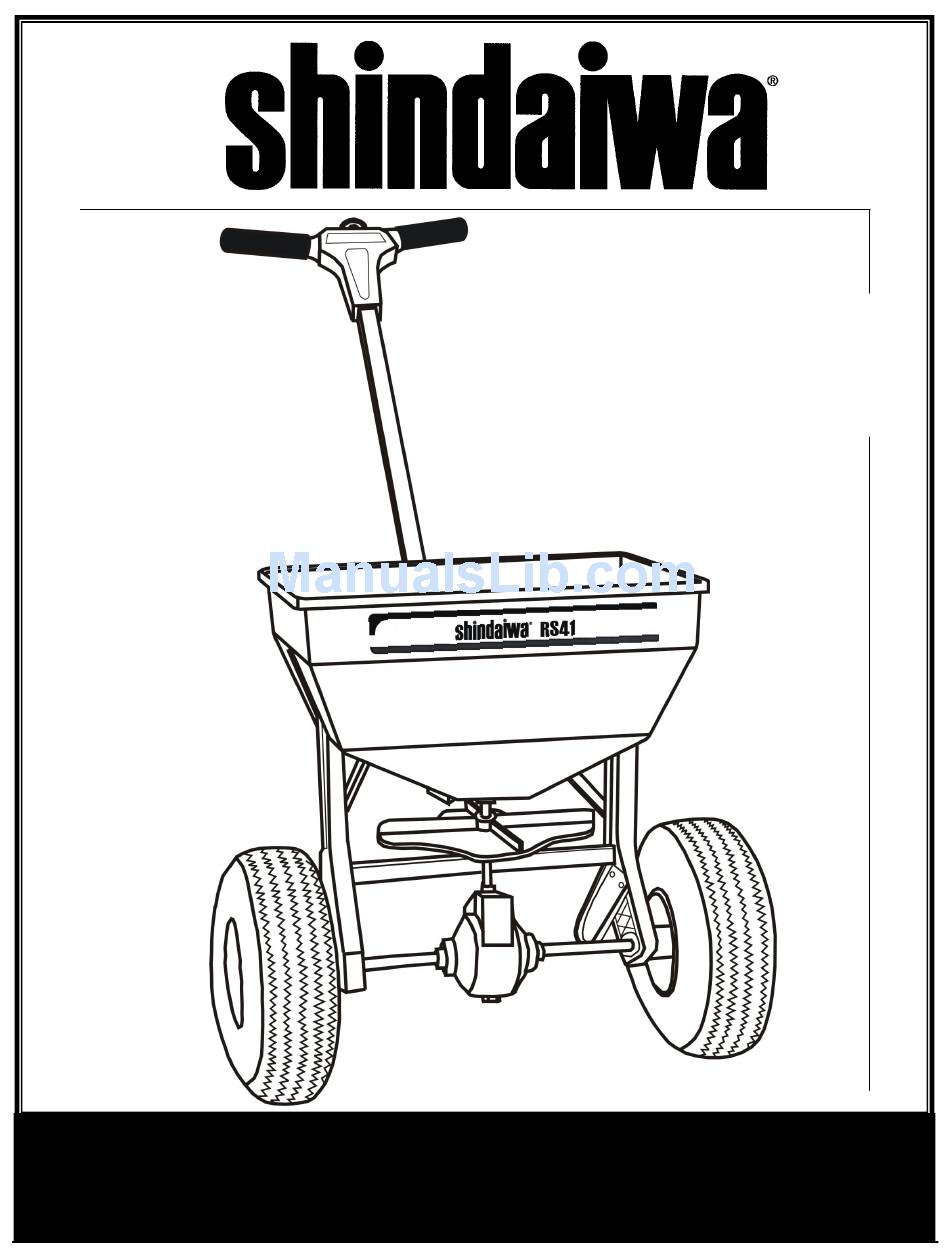

- Page 1 MODEL MODEL MODEL MODEL RS41 RS41 RS41 RS41 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL...
- Page 2 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 1/4-20 x 1 1/2” Frame Hex Bolt Remove the spreader and components from the carton. Turn spreader upside down. Insert (2) 1/4-20 x 1 1/2” hex bolts through the 1/4-20 flattened end of handle brace, frame and leg as Hex Nut shown.
- Page 3 Wire Shutoff Plate Install gear cover assembly over gears and secure with (2) #6-32 screws. The RS41 spreader should now be completely assembled and ready for use. Slide handle grips onto handle. Soapy water will ease installation. (Do not use petroleum based products.)
- Page 4 SPREADER OPERATION ADER OPERATION ADER OPERATION ADER OPERATION Check the product package for the rate setting, and recommended swath width. Turn the spreader off by pushing the control knob in. Rotate the rate cam to the proper setting. Always fill the spreader on the driveway or sidewalk-not on the lawn.
- Page 5 HOW TO DETERMINE SPREADER HOW TO DETERMINE SPREADER HOW TO DETERMINE SPREADER HOW TO DETERMINE SPREADER SETTINGS AND SPREAD WIDTH SETTINGS AND SPREAD WIDTH SETTINGS AND SPREAD WIDTH SETTINGS AND SPREAD WIDTH Two major factors should be considered when determining correct spreader settings of any product: 1.
- Page 6 — — — — — — — The following provides approximate RS41 settings when only the product weight, square foot coverage, . coverage, and visual inspection of the material is available. FERTILIZER BAG RATE APPROX. SPREAD Pounds of fertilizer used...
- Page 7 Two years from the delivery date to the original purchaser for consumer and commercial applications, 90 days for rental applications. Warranty Administration Within the covered warranty period, Shindaiwa will, at their option, repair or replace any defect in material or workmanship, without charge for parts or labor, if this product is presented at an authorizes Shindaiwa dealer.
- Page 8 Parts List For shindaiwa Model RS41 Parts List For shindaiwa Model RS41 Parts List For shindaiwa Model RS41 Parts List For shindaiwa Model RS41 PART OF OUR SERVICE IS PROVIDING REPLACEMENT PARTS. Parts may be obtained through your local distributor.
