Table of Contents

TM
MODEL
76RS
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HomePro 76RS and is the answer not in the manual?

Questions and answers

Related Manuals for Shindaiwa HomePro 76RS

Summary of Contents for Shindaiwa HomePro 76RS

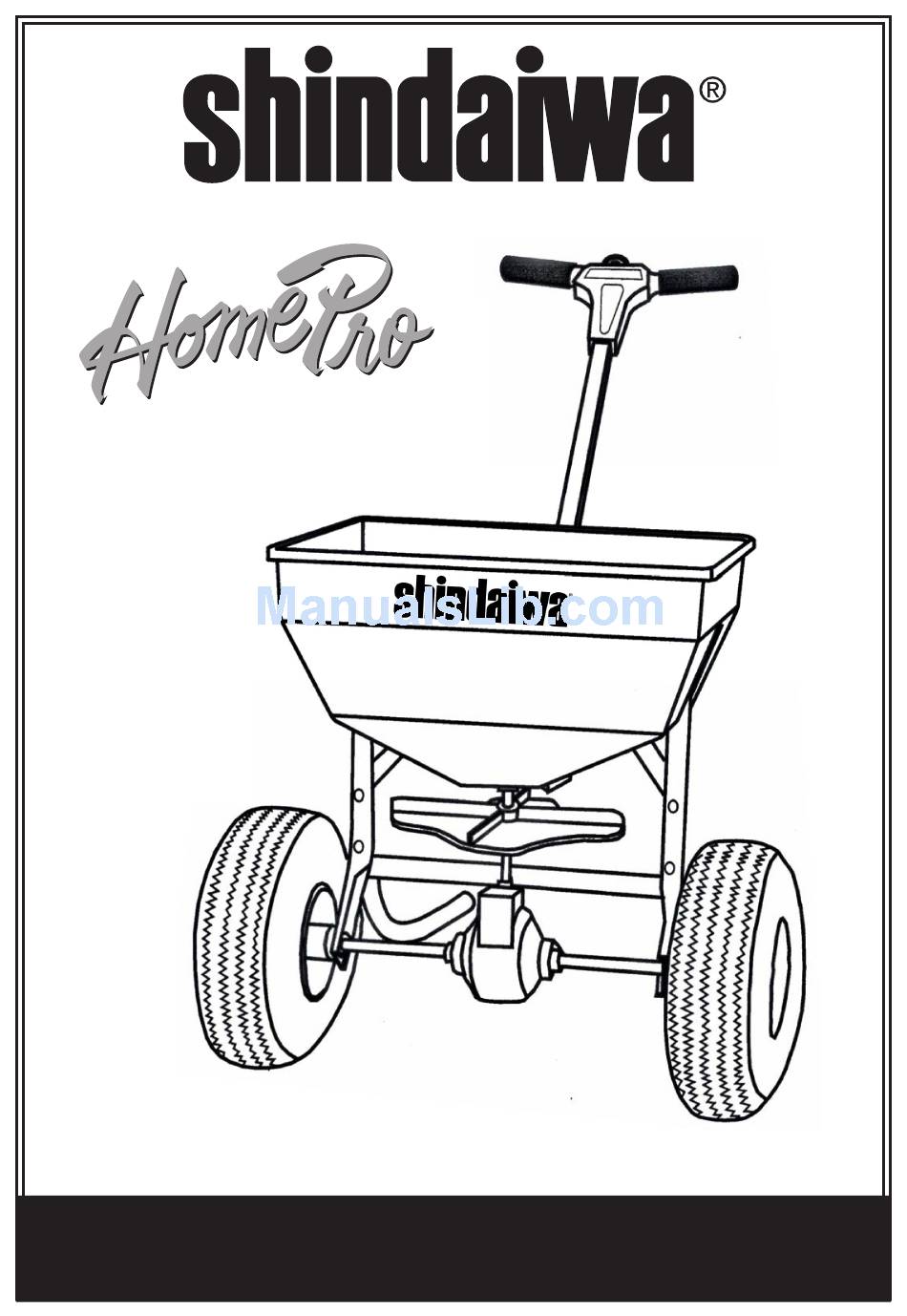

  • Page 1 MODEL 76RS OWNER’S MANUAL...
  • Page 2 Remove components from carton and place spreader upside down on a padded surface. Install LH. & RH. handle braces to frame as shown using four (4) 1/4-20 x 2 1/4” hex bolts and nuts but do not tighten. 3/16 Dia x 2”...
  • Page 3 Remove Caution Label Thumb Release 1/4-20 2 1/4” Bolt & Washer CAUTION: Once knob is latched, do not move thumb release until you have completed in step #5. Slide wire retaining clip onto wire as shown. Insert wire through hole shutoff plate. Slide wire retaining clip over shutoff plate and wire until the clip locks into place.

  • Page 4: Operation

    See “HOW TO DETERMINE SPREADER SETTING AND SWATH WIDTH” for details. Push spreader 2 1/2 m.p.h. (18 feet in 5 seconds) for full 8’ to 14’ spread pattern when applying fertilizer products. Apply header strips at each end of area to be treated then space trips across the area as shown.

  • Page 5: Application Rate

    HOW TO DETERMINE SPREADER SETTINGS AND SPREAD WIDTH Two major factors should be considered when determining correct spreader settings of any product: The product application rate, or the amount of material applied per 1,000 square feet. The effective pattern width, or the actual width in which material is applied.
  • Page 6 Steps for obtaining the most accurate settings are outlined in the “How to Determine Spreader Settings and Spread Width” section of this manual. These settings are approximate and may vary due to physical characteristics of the product. Walk- ing speed.

  • Page 7: Maintenance

    OWNER’S RESPONSIBILITIES The owner of the unit must demonstrate reasonable care in the use, maintenance, and storage of this Shindaiwa product. If a warrant- able failure should occur, the owner must deliver the product to an authorized Shindaiwa servicing dealer for correction. All residual chem- icals must be flushed from the tank prior to delivery.
  • Page 8 Parts List for SHINDAIWA MODEL 76RS PART OF OUR SERVICE IS PROVIDING REPLACEMENT PARTS. Parts may be obtained through your local distributor. be sure to give: SPREADER MODEL NUMBER SPREADER NAME PART NUMBER NAME OF PART AS SHOWN Description Hopper Assembly...
