Summary of Contents for Shindaiwa Model RS76

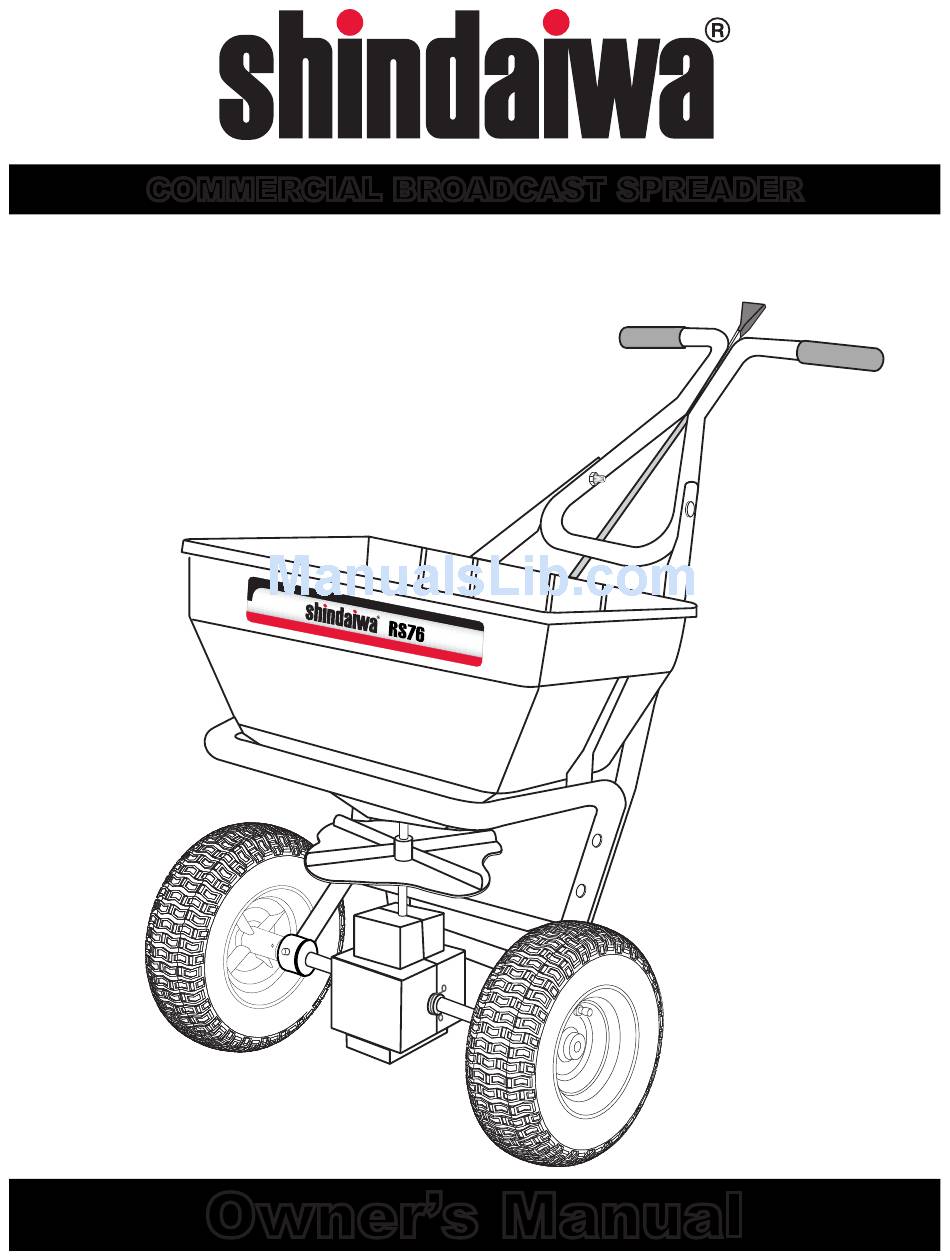

- Page 1 COMMERCIAL BROADCAST SPREADER Model RS76 Model RS76S 2-15-17 P15525-1 Owner’s Manual...
- Page 2 ASSEMBLY INSTRUCTIONS 3/16 Dia. x Remove the spreader and components from carton and 2” Cotter Pin place hopper up-side down on a padded surface as shown. Slide drive and free wheel onto axle as shown with the longer portion of wheel hub facing the frame. Secure free wheel with (1) 1/8 dia.
-
Page 3: Operation
ASSEMBLY INSTRUCTIONS, continued Handle Lever 1/4 Dia. Clevis Pin Install control tube to handle lever with (1) 3/32” Dia. 1/4 dia. clevis pin and a 3/32” dia. cotter pin. Cotter Pin Slip opposite end of control tube over lower control rod making sure shutoff plate is between Control Tube the lower rod and the control tube. - Page 4 PATTERN ADJUSTMENT Discharge Discharge Chute Normal spreading of materials requires no Chute Settings adjustment (factory setting “A”) unless stated on the package. In those cases where the spread pattern has shifted, the pattern can be adjusted left and right by loosening the two knobs on the Knob Knob discharge chute and moving the chute closer or...
-
Page 5: Application Rate
(add two zeroes to the weight of the rate setting as required. Repeat test until application rate is bag). correct. RATE SETTING CONVERSION shindaiwa RS76 & RS76S The following provides approximate settings for those units listed. Setting Brand/Model shindaiwa RS76 &... -
Page 6: Calibration Instructions
This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. Shindaiwa reserves the right to change the design or specifications of this product without obligation to modify previously manufactured products. - Page 7 PARTS LIST FOR shindaiwa RS76 & RS76S PART OF OUR SERVICE IS IF YOUR LOCAL DISTRI BUTOR CANNOT S UPPLY PROVIDING REPLACEMENT PARTS. PARTS, CONTACT: Parts may be obtained through your Prizelawn ® local distributor. Be sure to give: 1009 Maple Street / PO Box 547...
-
Page 9: Contact Information
CONTACT INFORMATION PO Box 1139 Lake Zurich, IL 60047 Phone 847 540-8400 / Fax 847 540-9670 www.shindaiwa.com...
