Typical room layout

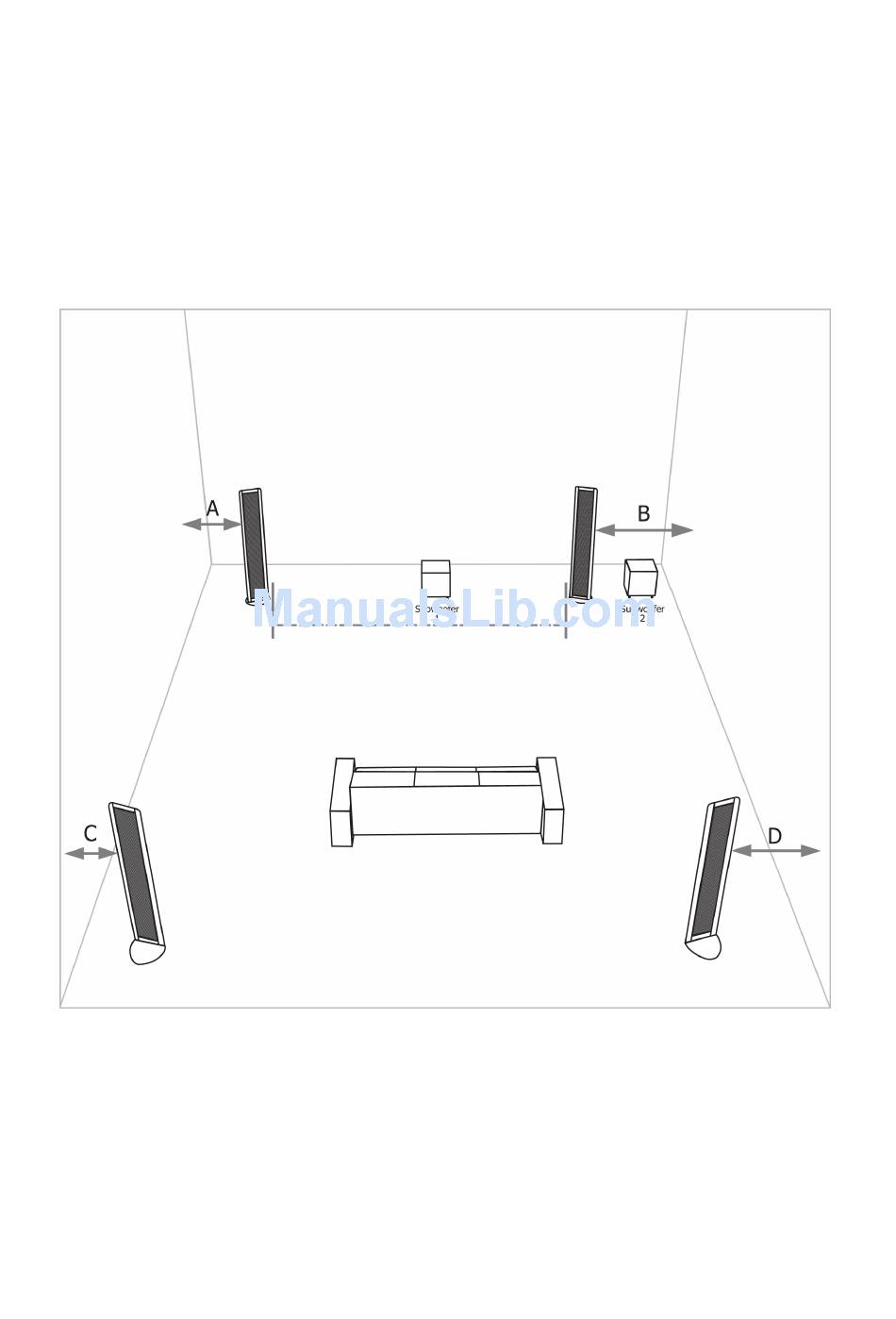

The following figure 0 represents a typical room set up for stereo and/or home theatre. See
the following chapters for a full set up explanation. The figure shows:
The subwoofer's preferred positions, depending on the panels you choose.
•
The base line between the front loudspeakers.
•
The stereo loudspeaker's position.
•
The full home theatre loudspeaker placement.
•
A preferred unequal distance between the side walls and the panels (a, b, c and d).
•
Figure 0
