SECTION I NAME OF PARTS

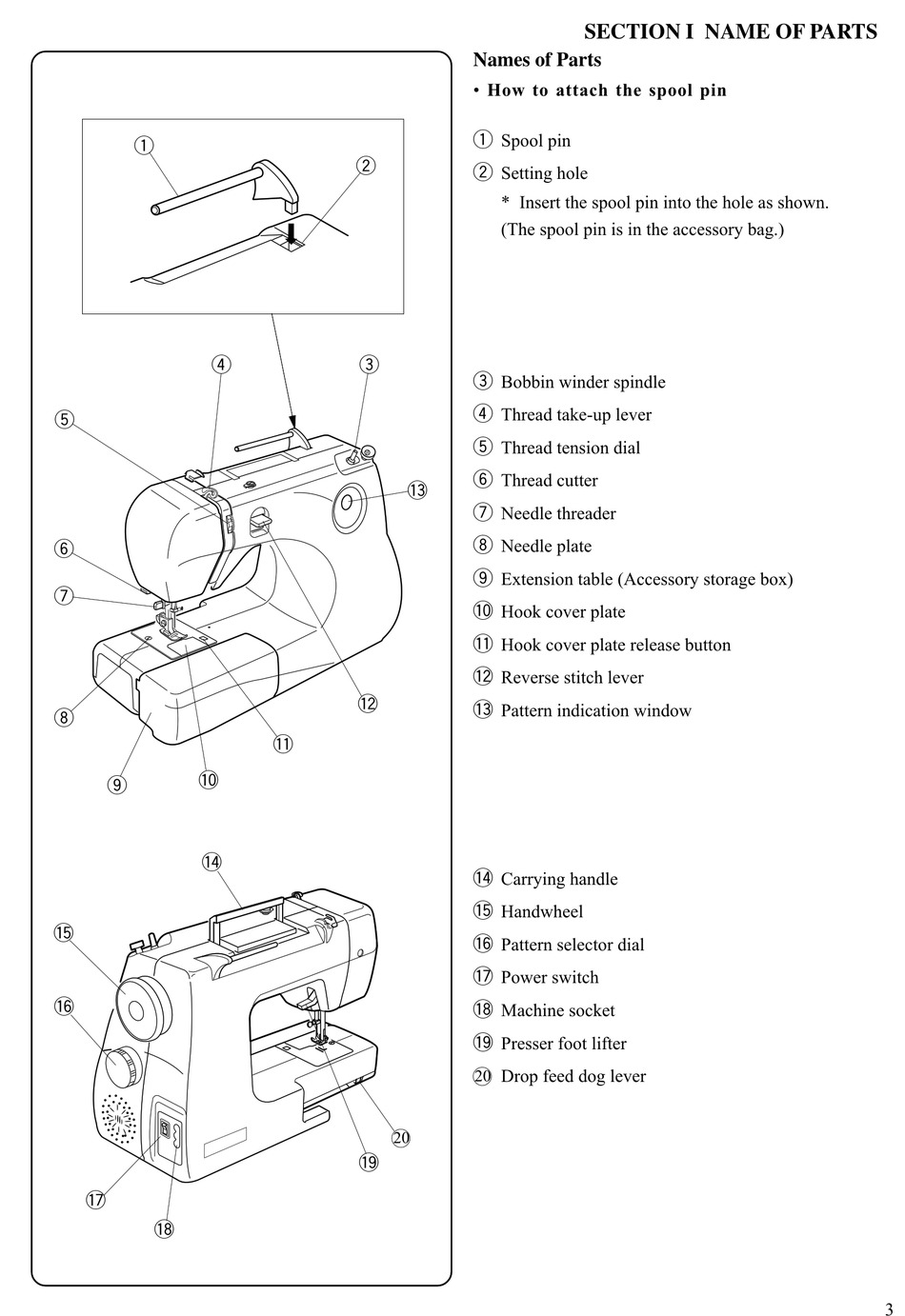

Names of Parts

• How to attach the spool pin

q
Spool pin
w
Setting hole
* Insert the spool pin into the hole as shown.
(The spool pin is in the accessory bag.)
e
Bobbin winder spindle
r
Thread take-up lever
t
Thread tension dial
y
Thread cutter
u
Needle threader
i
Needle plate
o
Extension table (Accessory storage box)
! 0
Hook cover plate
! 1
Hook cover plate release button
! 2
Reverse stitch lever
! 3
Pattern indication window
! 4
Carrying handle
! 5
Handwheel
! 6
Pattern selector dial
! 7
Power switch
! 8
Machine socket
! 9
Presser foot lifter
Drop feed dog lever
