REPLACING THE CONNECTOR
If the cable becomes damaged, replace the connector(s). Make wire connections as described below.
• Spare connectors* 1 are supplied with the VE-PG3.
* 1 Manufacturer: DDK. Name: 232D-04S1B-DA5-FA (Equivalent to the OPC-2273 connector.)
The connector has two parts; a black base and a clear insert. DO NOT lock the connector parts before inserting all wires.
1
Inser t the wires into the holes
according to the assigned pin
numbers.
The wires for each hole are
assigned by color. See the
illustration below.

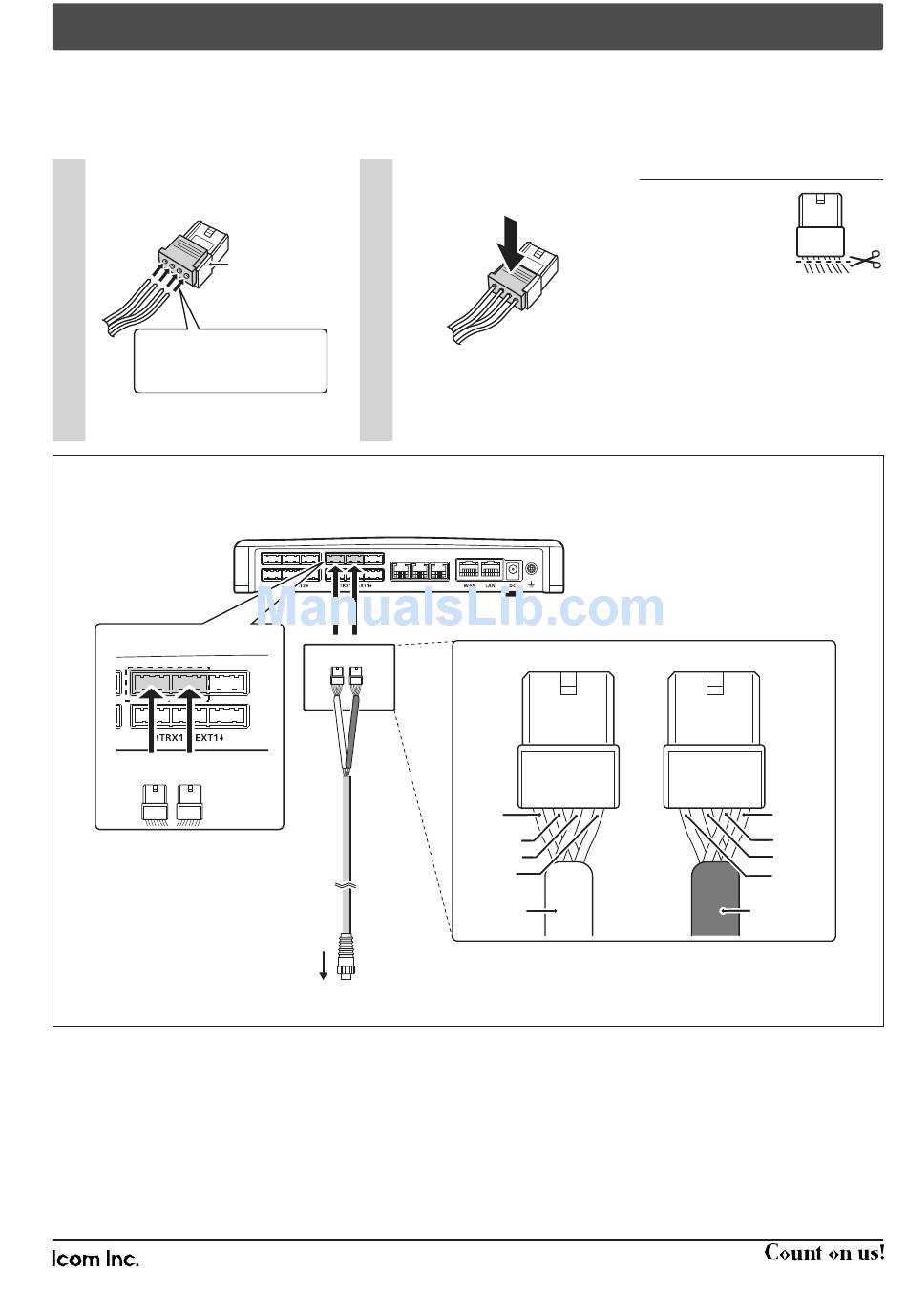

OPC-2273 connection and wires assignment
• Turn OFF the VE-PG3 and the transceiver before connecting or disconnecting the OPC-2273.
VE-PG3 (Rear view) VE-PG3 (Rear view) VE-PG3 (Rear view)
To [TRX1] (Upper slots)
A A B
To the transceiver
• Follow the example to correctly connect the IC-M604 to [TRX1] on the VE-PG3.
