Icom OPC-2275 Instruction Manual

INSTRUCTION MANUAL
CONNECTION CABLE

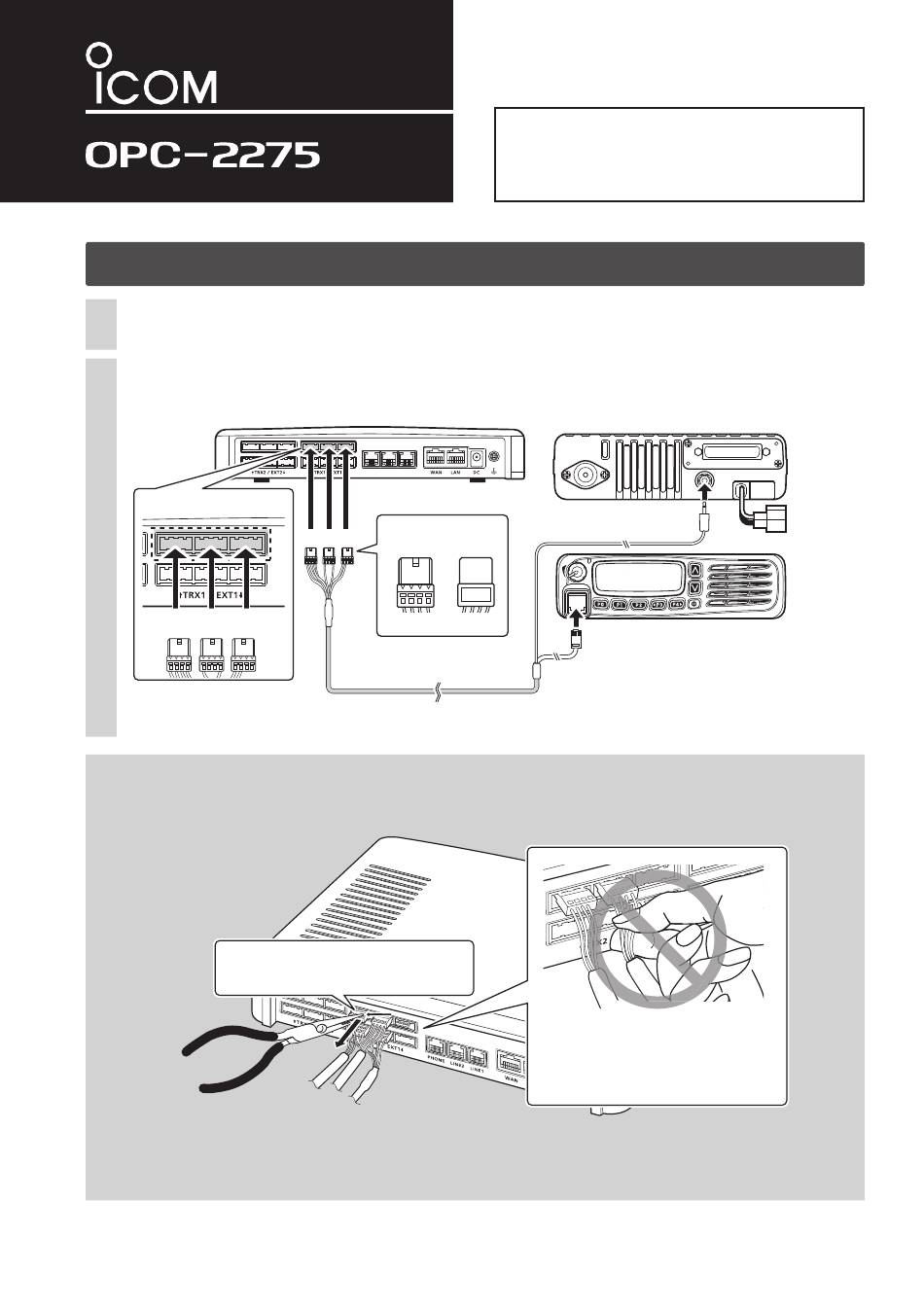

CONNECTING THE OPC-2275
1
Set the transceiver channel, volume level, TX output power, and other necessary settings.
(See the transceiver and the VE-PG3 instruction manuals for setting details.)
2
Turn OFF both the transceiver and the VE-PG3. Remove the microphone and external speaker from the transceiver,
and then connect the OPC-2275, as shown below.
VE-PG3 (Rear view)
To [TRX1] (Upper slots)
A A B C
• The [TRX1] and [TRX2] ports (upper slots) accept the OPC-2275 connectors,
however, follow the example to correctly connect the transceiver to ONLY the [TRX1] on the VE-PG3.
CAUTION
• Verify that both the transceiver and the VE-PG3 are turned OFF when connecting or disconnecting the cable.
• Hold the connector body when connecting or disconnecting them.
When other cables are connected, you can
use needle-nose pliers to carefully insert or
remove connectors.
Needle-nose pliers Needle-nose pliers
• Never bend or pinch the cable.
• Never place a heavy object on the cable.
• Never touch the cable with wet hands.
• Always connect the cable correctly. An incorrect connection could damage the VE-PG3 and/or the transceiver.
PHONE LINE2 LINE1
Be sure to insert the
A B C
connectors top side up.
A
1 2 3 4
Top Bottom
OPC-2275
Connector Connector Connector
body body body
VE-PG3 (Rear view) VE-PG3 (Rear view)
Thank you for purchasing this Icom product.

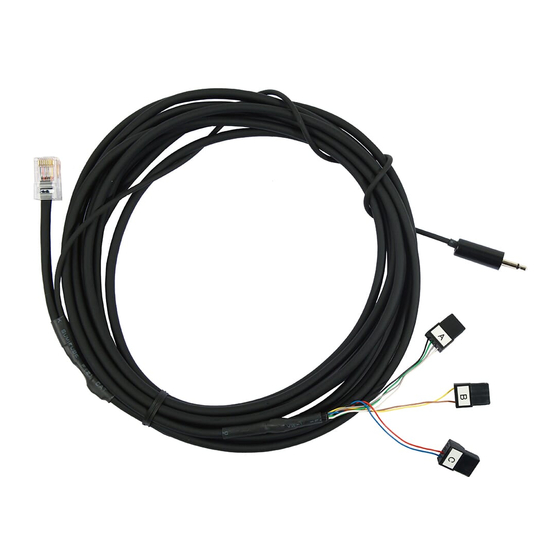

The OPC-2275
CONNECTION CABLE
transceiver to the VE-PG3.
READ ALL INSTRUCTIONS carefully and completely be-
fore using the cable.
Icom's transceiver
(IC-F5060/IC-F6060 series)
To the external speaker jack
To the microphone connector
NEVER pull the connector by holding the
cable. This will damage the cable.
*If the cable becomes damaged, replace the
connector(s). See "REPLACING THE
CONNECTOR" on the reverse side for
replacement details.
is used to connect a
(Rear view)
(Front view)
