Icom OPC-2276 Instruction Manual

INSTRUCTION MANUAL
CONNECTION CABLE

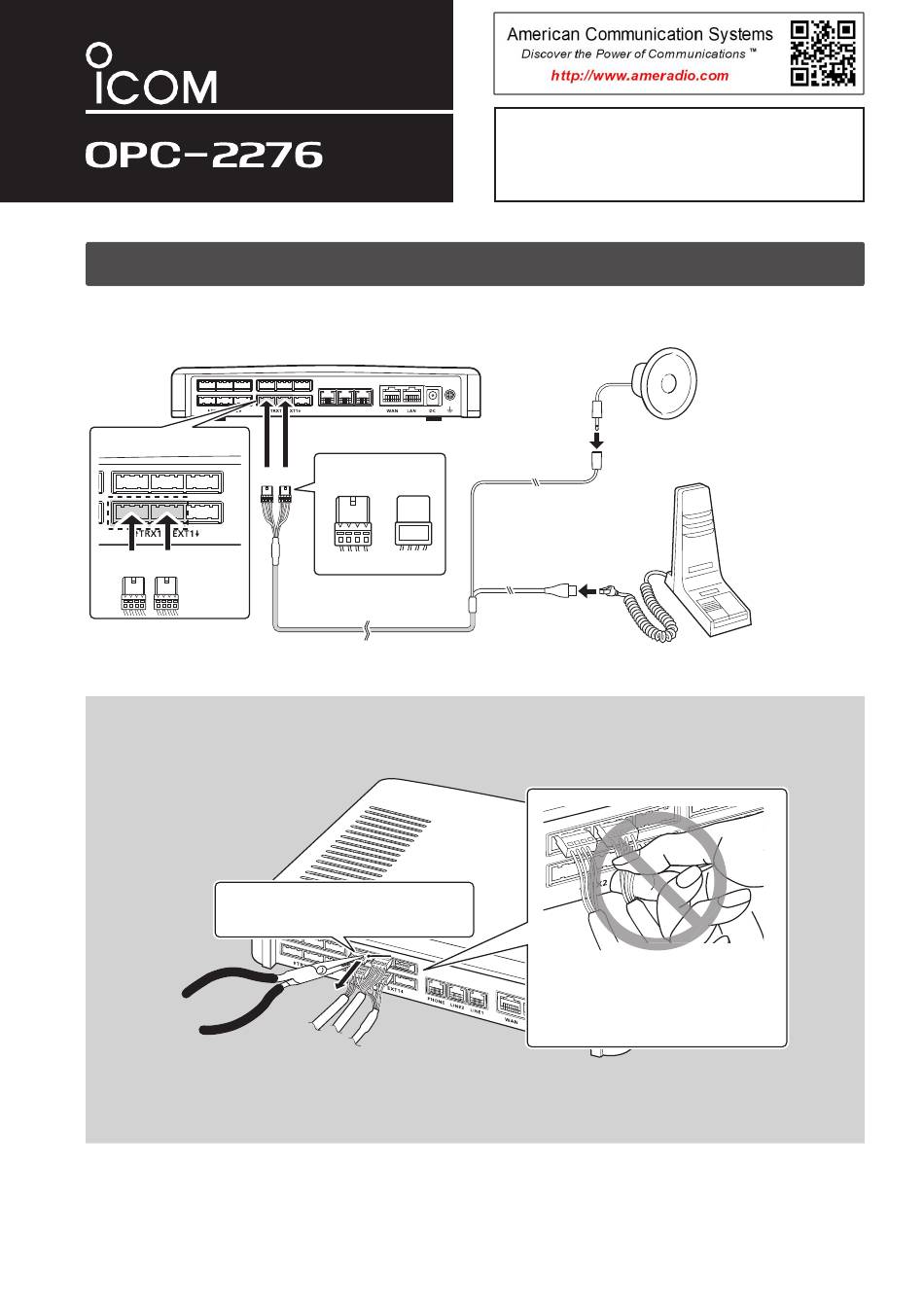

CONNECTING THE OPC-2276
Turn OFF the VE-PG3, and then connect the OPC-2276, as shown below.
VE-PG3 (Rear view)
To [EXT1] (Lower slots)
A B
• The [EXT1] and [EXT2] ports (lower slots) accept the OPC-2276 connectors,
however, follow the example to correctly connect the microphone and speaker to ONLY the [EXT1] on the VE-PG3.
CAUTION
• Verify that the VE-PG3 is turned OFF when connecting or disconnecting the cable.
• Hold the connector body when connecting or disconnecting them.
When other cables are connected, you can
use needle-nose pliers to carefully insert or
remove connectors.
Needle-nose pliers Needle-nose pliers
• Never bend or pinch the cable.
• Never place a heavy object on the cable.
• Never touch the cable with wet hands.
• Always connect the cable correctly. An incorrect connection could damage the VE-PG3 and/or the microphone and speaker.
LINE2 LINE1
PHONE
Be sure to insert the
A B
connectors top side up.
A
1 2 3 4
Top
Bottom
OPC-2276
Connector Connector Connector
body body body
VE-PG3 (Rear view) VE-PG3 (Rear view)
Thank you for purchasing this Icom product.

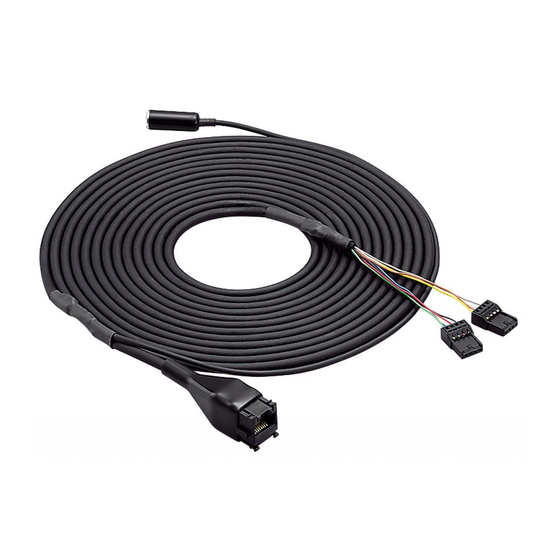

The OPC-2276
CONNECTION CABLE
microphone and a speaker to the VE-PG3.
READ ALL INSTRUCTIONS carefully and completely be-
fore using the cable.
To the speaker
To the microphone
NEVER pull the connector by holding the
cable. This will damage the cable.
*If the cable becomes damaged, replace the
connector(s). See
CONNECTOR" on the reverse side for
replacement details.
is used to connect a
Speaker
• Monoral plug:
3.5 (d) mm; (1/8'')
• Input impedance:
higher than 8 Ω
• Power capacity:
more than 1 W
Icom's microphone
(Example: SM-26)
"REPLACING THE
