Alvin Professional Spacesaver X-3-XB Assembly Instructions

Tools Required:

Phillips screwdriver, drill with

Parts Included:

A
1pc Leg Frame

To Assemble:

1
Unpack all parts and inspect to confirm that all are present.
Unfold base ( A ) .
2
Insert rear extension tubes ( C ) completely into frame ( A ) and
3
loosely hand-tighten knobs ( F ) .
4
Insert front extension tubes ( D ) into frame ( A ) .
Place table top ( B ) with preferred side facing down on carpeted or
5
protected floor. Place supplied cardboard template on board surface
with edge of template at front edge of board. Left and right edges of
template should be an equal distance from each side of the table top.
Using a / " drill bit, gently drill ¼" deep holes where indicated on the
1
16
template (red squares for 24" x 36" top or black holes for 31" x 42";
template marked XB-II is for 36" x 48" top). Remove template.
Wrap masking tape ¼" from drill bit end to determine drilling depth.
TIP
Take care to drill only ¼" deep to avoid drilling through and damaging
table top surface.
Using the Phillips screwdriver, screw the leg support braces ( G ) onto the
6
tabletop ( B ) as shown in Figure 1.
Carefully turn table frame upside down and place on top of
7
tabletop. Align holes in front leg extensions ( D ) with holes in table
top as shown in Figure 1. Fasten all ½" screws ( H ) and tighten
securely. Use care not to overtighten and strip.
Carefully return table assembly to the upright position. Adjust table
8
top to desired height using height adjustment knobs ( F ) .

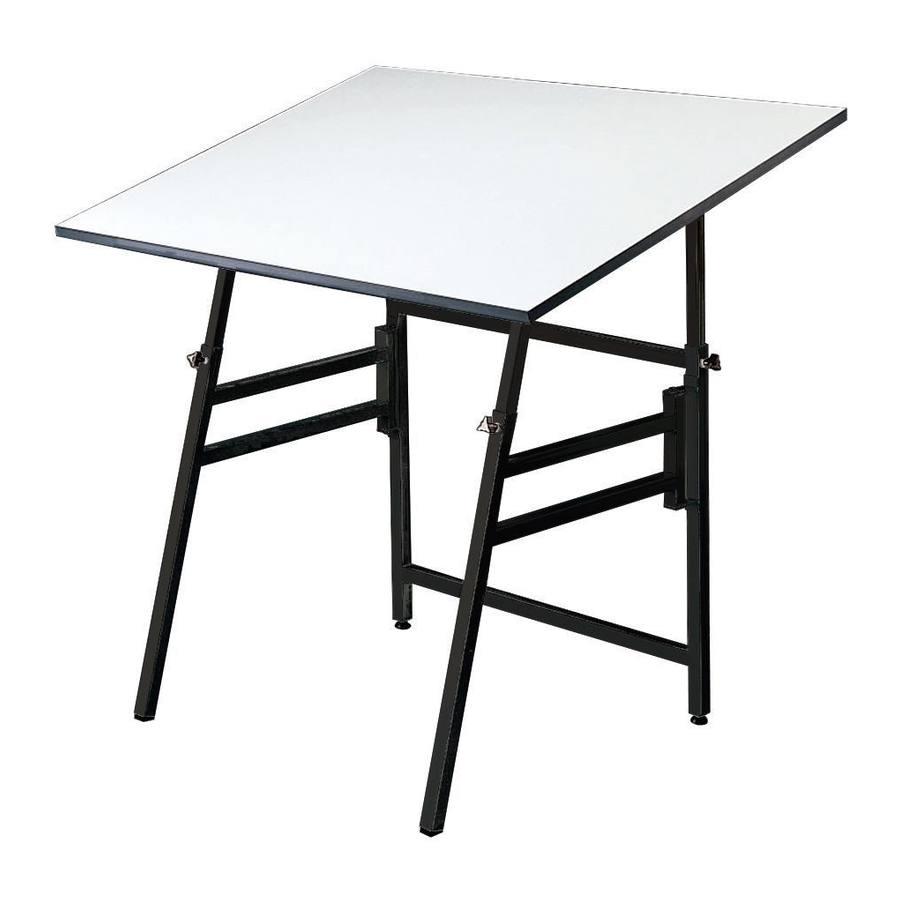

You're finished and your table is ready to use as shown in Figure 2.

Folding Table:

Drop all extension tubes down to their lowest positions. Lift top up until
the front extension tubes ( D ) disengage with the support braces ( G ) , then
move the left leg assembly in until it is flush against the rear frame assembly.
Next move the right leg assembly in flush against the left leg assembly.
Gently lower the table top down flush against the right leg assembly.
The table is now ready for storage.
©2008 ALVIN & COMPANY, INC. • P.O. Box 188, Windsor, CT 06095-0722
Phone: 860-243-8991 • Toll-Free: 800-444-2584 • Fax: 860-242-8037 • Toll-Free Fax: 800-777-2896
Professional Spacesaver
Assembly Instructions
/ " bit.
1
16
B
1pc Tabletop
(Shipped in
separarate box)
X1-3-XB, X1-4-XB, XII-3-XB. XII-4-XB
C
2pcs Rear Extension Tubes
D
2pcs Front Extension Tubes
F
2pcs Height
Adjustment Knobs
G
2pcs Leg Support Braces
½" Screws
Figure 1
Figure 2

Professional Spacesaver Models

X-3-XB XI-3-XB
X-4-XB XI-4-XB
For models X-3-XB, X-4-XB,
E
2pcs Floor Glides
H
12pcs / "
1
2
Wood Screws
XII-3-XB
XII-4-XB
www.alvinco.com
LIT-A8002 4/08
