Alvin Vanguard Assembly Instructions

Alvin Vanguard Assembly Instructions

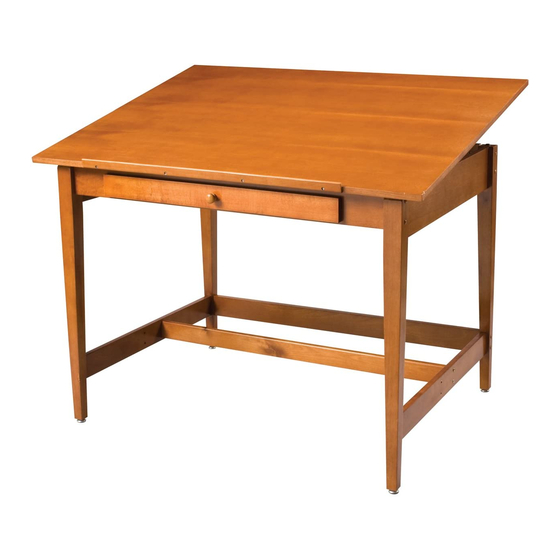

Drawing room table

Advertisement

Quick Links

Tools required:

Important notes:

1
2
Leg - Back Left
Leg - Front Left
1 pc
7
8
Back Rail
1 pc
B
C
Barrel Nuts
14 pcs

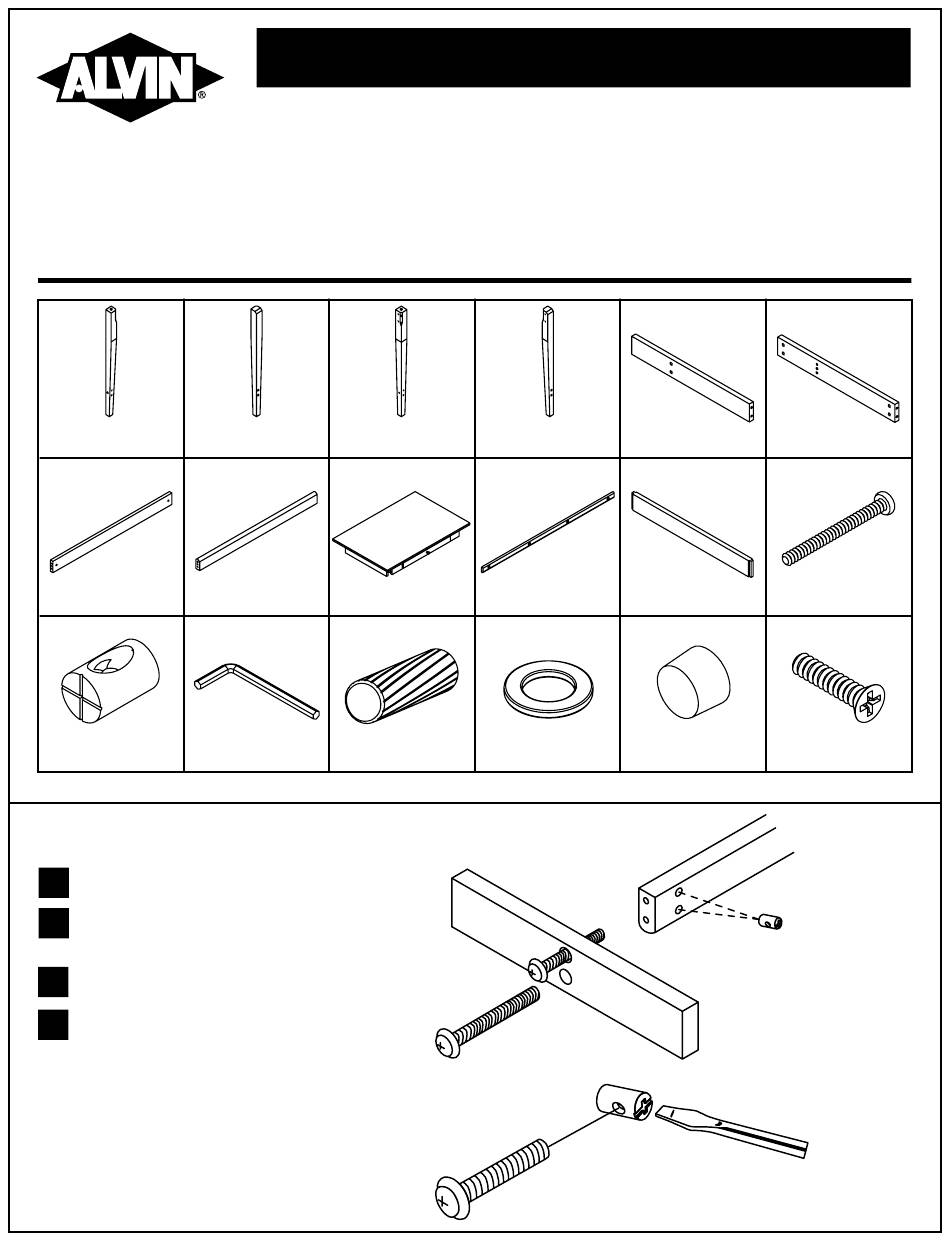

How To Install Bolts and Barrel Nuts

B
Insert barrel nut (
) in predrilled hole of side
1
5 & 6
rails (
).
2
Use screwdriver to ensure long slot is aligned
A & G
with bolt (
).
3
Insert bolt and tighten.
4
Long slot in barrel nut must align with bolt.
Vanguard
Assembly Instructions
Phillips screwdriver, slotted screwdriver.
1. Power tools for assembly are not recommended. Great care must be taken to avoid
over-tightening screws so that holes are not stripped accidentally.
2. Wood products can be easily scratched if not handled carefully. Please use care
when unpacking and assembling to prevent damage.
3
Leg - Back Right
1 pc
1 pc
9
Footrest
Tabletop Assembly
1 pc
1 pc
D
Allen Wrench
Wood Dowels
1 pc
14 pcs
Drawing Room Table
4
Leg - Front Right
1 pc
10
1 pc
E
Washers
8 pcs
5
6
Side Rail - Left
Side Rail - Right
1 pc
1 1
A
Drawer Dividers
2 pcs
F
G
Wood Plugs
10 pcs
For VAN42
VAN48
1 pc
Bolts, 2¼"
22 pcs
Bolts, 1/2"
4 pcs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vanguard and is the answer not in the manual?

Questions and answers

Summary of Contents for Alvin Vanguard

  • Page 1 Vanguard Drawing Room Table ™ Assembly Instructions For VAN42 VAN48 Tools required: Phillips screwdriver, slotted screwdriver. Important notes: 1. Power tools for assembly are not recommended. Great care must be taken to avoid over-tightening screws so that holes are not stripped accidentally.
  • Page 2 Insert 1 dowel into each end of footrest ( (no glue necessary). Connect footrest between legs using 2¼" bolts and barrel nuts. Rounded edge should face tabletop. Keep bolts slightly loose. Figure 3 ©2012 Alvin & CompAny, inC.
  • Page 3 Lift back of tabletop into an elevated tilt position to gain access to back of drawer. (See directions for adjusting tilt on the last page of these instructions.) Insert drawer dividers ( ) into desired slots as shown in Figure 6. Figure 6 ©2012 Alvin & CompAny, inC.
  • Page 4 Need assistance with assembly? Call customer service at 1-800-444-2584. Visit us online at www.alvinco.com. www.alvinco.com ©2012 Alvin & CompAny, inC. • P.O. Box 188, Windsor, CT 06095-0722 Phone: 860-243-8991 • Toll-Free: 800-444-2584 • Fax: 860-242-8037 • Toll-Free Fax: 800-777-2896 LIT-A11241 3/12...
