Tools Required:

Phillips screwdriver, drill with

Parts Included:

Warning: Do not cut restraining cord until after reading instructions
This table is spring-loaded and might cause bodily harm if assembled incorrectly. Remove
contents carefully from carton but do not cut table restraining cord until reading the assembly
instructions fully and taking necessary precautions as described below.

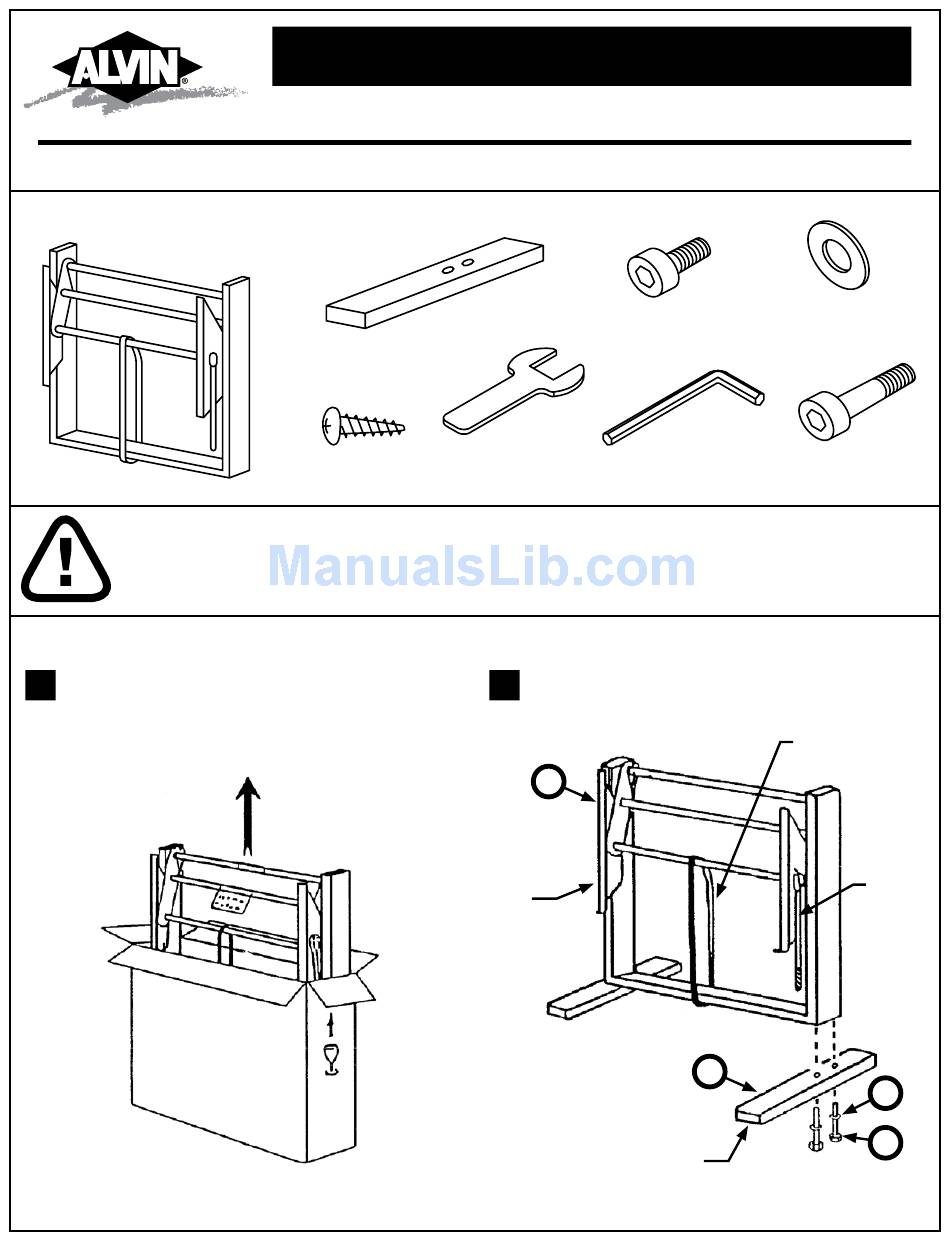

Table Assembly

With the carton in the upright position, remove the table
1
frame ( A ) and feet/hardware box as shown in Figure 1. Do
not cut restraining cord yet and do not release brake lever yet.
Figure 1
Ensign Table
Assembly Instructions
/
1
16
B
2pcs
Feet
A
1pc Table
Frame
E
4pcs
Tabletop Screws
" bit, measuring tape, pencil (not included)
C
4pcs
Foot Bolts
G
F
1pc
1pc Allen Wrench 5mm
Wrench
1pc Allen Wrench 10mm
Attach feet ( B ) using foot bolts ( C ) and washers ( D )
2
provided. Be sure that the long ends of feet extend
toward the front of the table, as shown in Figure 2.
Tighten bolts very securely.
A
Front of
table
Figure 2
D
4pcs
Washers
H
Tension Bolt
Do not cut
restraining
cord yet
B
x2
Long ends of
feet on front
side of table
©2012 Alvin & CompAny, inC.
Spring
Do not
release
brake
lever yet
D
x4
C
x4
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ensign and is the answer not in the manual?

Questions and answers

Summary of Contents for Alvin ensign

  • Page 1 Figure 2. Tighten bolts very securely. Do not cut restraining cord yet Front of Do not table release brake lever yet Long ends of feet on front Figure 1 Figure 2 side of table ©2012 Alvin & CompAny, inC.
  • Page 2 2 people to ensure tabletop does not fall to the floor. drill all the way through board. Center base until A Tabletop dimensions are equal supports Rest tabletop on lips Tabletop Figure 5 Figure 6 Figure 7 ©2012 Alvin & CompAny, inC.
  • Page 3 For best results, it is likely you will have to make spring and tension adjustments before using your table. There are 2 springs that control the functions of the Ensign table: 1. The spring inside the left leg controls the lift strength 2.
  • Page 4 EN48-4 Please save these instructions for future reference ©2012 Alvin & CompAny, inC. ©2012 Alvin & CompAny, inC. • P.O. Box 188, Windsor, CT 06095-0722 www.alvinco.com Phone: 860-243-8991 • Toll-Free: 800-444-2584 • Fax: 860-242-8037 • Toll-Free Fax: 800-777-2896 LIT-A12112 7/12...
