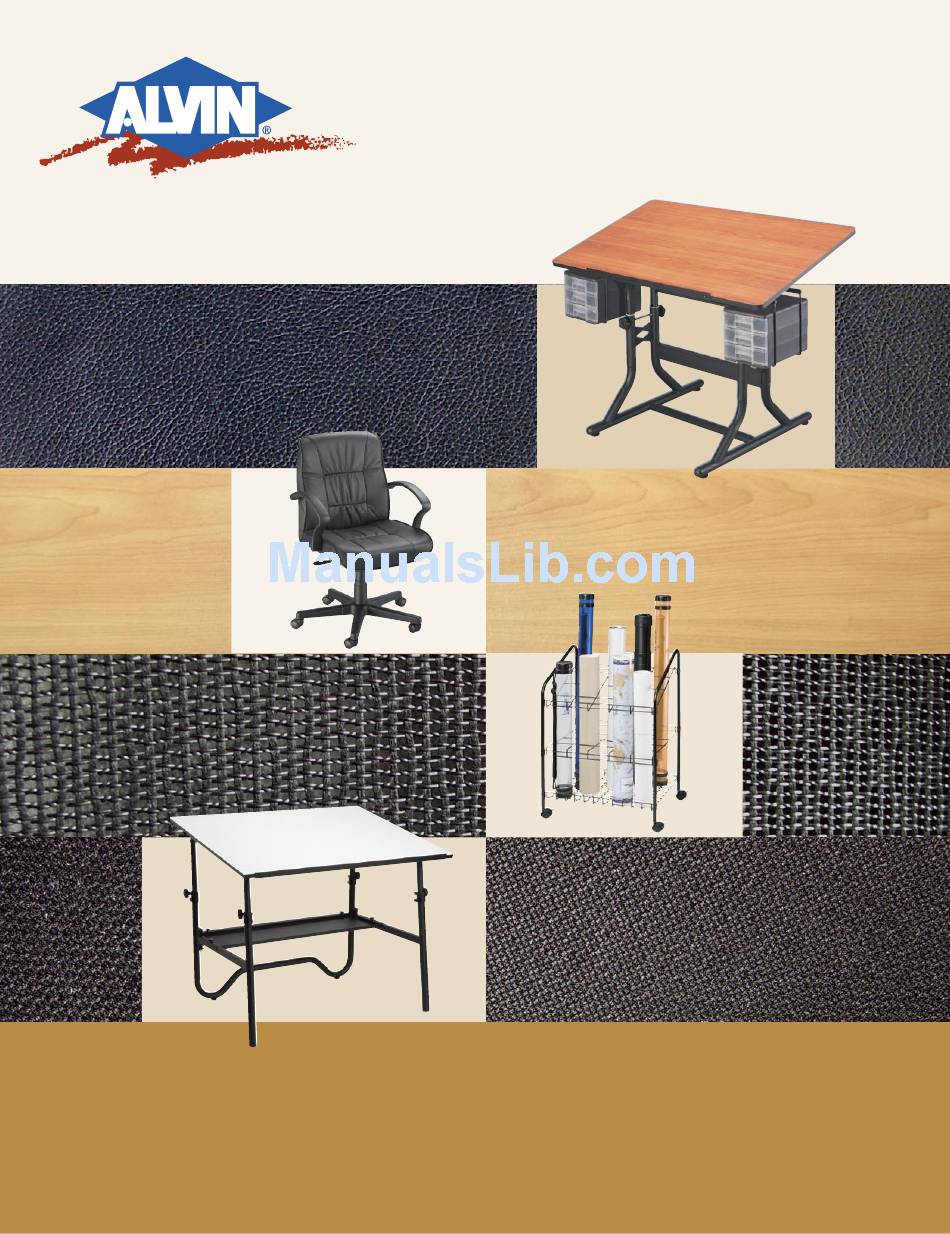

Page 1 2008 Furniture...
Page 2 • Posters are 18" x 24" • Limit one printed poster per item per store location • Available free of charge to Alvin dealers • PDF files are available for download from www.alvinco.com for in-store or electronic presentation to consumers...
Page 3 ™ ™ ™ ™ CraftMaster Jr. CraftMaster II CraftMaster III CM III Split-Top CraftMaster ™ the crafted original. any have copied it, none have duplicated it. The ultimate in function, utility, and convenience at an affordable price for the artist or hobbyist, the CraftMaster™...
Page 4 Warranty 3 Year Warranty CM48-3-WBR CM30-3-WBR ALVIN CraftMaster™ Art, Drawing and Hobby Table ® The ultimate in function, utility, and convenience at an affordable price for the artist or hobbyist, the height-adjustable CraftMaster™ has been designed from the bottom up to meet your creative needs and is certain to satisfy both children and adults, beginning artists and professionals.
Page 5 CM50-3-WBR ALVIN CraftMaster III™ ® Drafting, Drawing, and Art Tables A larger and more robust version of the popular CraftMaster™ series of tables, the CraftMaster III™ was designed for serious students, artists, and professionals who prefer a truly drafting-height table. It features an enlarged leg frame design, readily accepts standard parallel straightedges, and maintains an attractive color scheme that fits well in most homes, offices, and studios.
Page 6 ALVIN Creative Centers ® ALVIN Creative Center – CC2005EBWR ® This sophisticated woodgrain and black drafting-height table combination not only looks great, but will service all your creative needs. Fold-away design for convenient storage. All components packed securely in one UPS-able box. Onyx Drawing Table Black base with reversible 30" x 42" tabletop – white Melamine cherry woodgrain Melamine ® on the other. Height adjusts from 29" to 44" in the horizontal position. Angle adjusts from 0° to 45°. Pencil ledge included. Gas-Lift Drafting Chair Black upholstered seat and backrest. Gas cylinder mechanism adjusts height from 23" to 28". Teardrop footrest. Swing Arm Lamp 6½" black metal shade. Takes 100w bulb. Spring arm and knob. Arm length extends to 32". Locks securely in any position. Storage Tray Sturdy, multi-compartment, black plastic side tray to hold all your supplies. 31½" long and 6" wide. Installs either left or right side. Description Rounded CC2005EBWR...
Page 7 ALVIN Creative Center – CC2001E ® A drafting-height table combination for all your creative needs. Fold-away design for convenient storage. All components packed securely in one UPS-able box. Onyx Drawing Table White base with 30" x 42" white Melamine tabletop. Height adjusts from ® 29" to 44" in horizontal position. Angle adjusts from 0° to 45°. Pencil ledge included. Gas-Lift Drafting Chair Black upholstered seat and backrest. Gas cylinder mechanism adjusts height from 23" to 28". Teardrop footrest. Swing Arm Lamp 6½" white metal shade. Takes 100w bulb. Spring arm and knob. Arm length extends to 32". Locks securely in any position. Storage Tray Sturdy, multi-compartment, black plastic side tray to hold all your supplies. Installs either left or right side. 31½" long and 6" wide. Description CC2001E Creative Center ALVIN Creative Center with Shaped Top – CC2007SBR ®...
Page 8 5 Year Warranty Pavillon with WBR series top 3 Year Warranty ALVIN MiniMaster ® A sturdy, 4-post steel table that is perfect for art, hobby, crafts, graphic arts, and all kinds of creative work in the home, dorm, studio, or office. Built tough to provide years of service, the MiniMaster comes with a durable, rounded corner tabletop and an easy-to-adjust height mechanism with 1" increments.

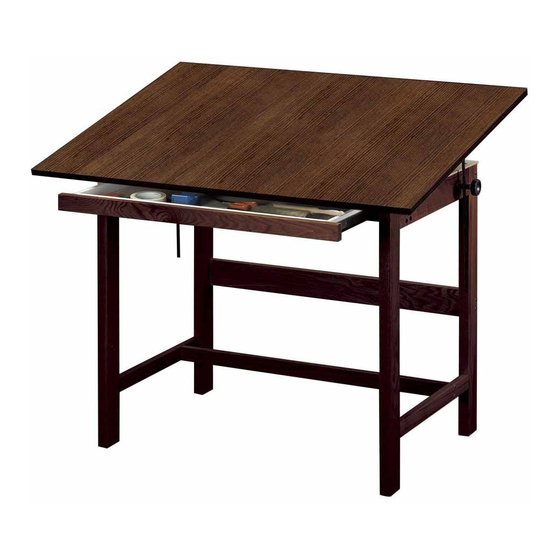

Page 9 ALVIN Titan Solid Oak Drafting Tables ® Attractive, functional, and durable, this 4-post drafting table is constructed from the finest quality solid red oak using through-bolt hardware to ensure it will stand up to years of use. The natural oak or deep walnut finish is well protected by two coats of clear lacquer while the warp-free tabletop has a long-lasting Melamine ® laminate. Tilt mechanism enables user to quickly and easily adjust the top angle from 0° to 45°. Available in 30" office height without drawer, and 37" drafting height with drawer. (23"d x 31"w x 1½"h inside dimensions). Limited lifetime warranty. Description (Base, Top Size) 37" drafting height table WTB42 Oak base drawer 31" x 42" WTB48 Oak base drawer 36" x 48" WTB60 Oak base drawer 37½" x 60" WTB42-WA Walnut base drawer 31" x 42"...
Page 10 Tables Lifetime Warranty 5 Year Warranty 3 Year Warranty Onyx King-Size Onyx Opal ALVIN Onyx ® One of our most popular items, this contemporary fold-away drafting-height table is perfect for home, office, and dormitory. The sturdy, 1½" diameter tubular steel frame, is easy to set up and is available in either black or white powder- coated finish that will provide years of service. The four telescoping legs allow the tabletop surface to easily adjust from 29" to 44" in the horizontal position and tilt from 0° to 45°. Fold-away gate hinges permit base to fold flat in seconds to 5" for convenient storage. Base and board ship in separate cartons except for ONX40-4. Description (Base, Size, Top)
Page 11 36" x 48" White WMJB-3 Black base only WMJB-4 White base only s Oversized item, shipped by truck. LIMITED WARRANTY Alvin & Company, Inc. warrants all of its products to be free from manufacturing defects, under normal use and conditions, for a period of 90 days from the date of original purchase from Alvin, unless otherwise indicated. Extended warranties where applicable cover steel table bases only, not tabletops. Please call or visit our website for full warranty details. Weight 100 lbs. $425.00 ea 425.00 ea 100 lbs.
Page 12 Warranty 3 Year Warranty DesignMaster Office Height ALVIN DesignMaster 4-Post Steel Drawing Tables ® Compared to any other drawing table on the market this is, without a doubt, a table of superior strength and durability with a lifetime guarantee. The DesignMaster is made of 18-gauge steel tubing (not pre-fab sheet steel) and table height is 37" that can adjust from 0° to 45°. The legs are welded...
Page 13 ALVIN Ensign ® Designed to enhance any working environment, the Ensign is an example of practicality, convenience, and functional design. Tabletop height and angle are spring-action controlled. Simultaneous adjustments are made using the extendable-length brake lever conveniently located on the right side. Angle adjustment from 0° to 90° with an adjustable height of 35" to 47". Features a double-pedestal base design of heavy-gauge steel with rounded profile for superior stability. Warp-free white Melamine tabletop. Base comes in white or ® black finish. Description (Base, Size, Top) s EN42-3 Black 31" x 42" White s EN42-4 White 31" x 42" White...
Page 14 ® Fold-A-Matic’s ingenious design makes it one of the most versatile drafting tables ever made. The Fold-A-Matic offers these outstanding features: • Angle adjusts from 0° to 90° • Base goes from 34" to 47" when the tabletop is flat • Folds to 4" width • Warp-free white Melamine • Base is 1" square steel tubing • Base in white or black powder coat finish Description (Base, Size, Top) MODEL XV-3-XB Black MODEL XV-4-XB White MODEL XX-3-XB Black MODEL XX-4-XB White FBO-3 Black base only FBO-4 White base only SAFCO PlanMaster Drafting Table ®...
Page 15 ALVIN Professional ® Portable, versatile, and so durable that it carries a lifetime guarantee. The Professional offers these outstanding features: • Angle adjustment from 0° to 45° • Height adjusts from 29" to 45" in the horizontal position • Folds quickly and easily to 4" width for portability • Base is 1" square steel tubing • Non-skid self-leveling feet • Warp-free white Melamine tabletop ® • Base in white or black powder coat finish Description (Base, Size, Top) MODEL X-3-XB Black 24" x 36" White MODEL X-4-XB White 24" x 36" White MODEL XI-3-XB Black 31" x 42" White...
Page 16 Tables SMI 4-Post Table A very rugged table constructed of solid oak. It comes either unfinished, ready to stain or paint the color of your choice, or finished, coated with four coats of furniture grade lacquer finish. The table is furnished with a smooth dust cover to protect the contents of the drawer. The top is white Melamine rods provide infinite tabletop angle adjustment. All tables come with locking tool drawer with inside dimensions of 18¾"d x 5½"w x 2¼"h. Description Unfinished U2436-30A* 30" high base w/24" x 36" top U3042-30A* 30" high base w/30" x 42" top U3648-37A 37" high base w/36" x 48" top U3660-37A 37" high base w/36" x 60" top Finished – Natural Oak F2436-30A* 30" high base w/24" x 36" top F3042-30A* 30" high base w/30" x 42" top F3648-37A 37" high base w/36" x 48" top F3660-37A 37" high base w/36" x 60" top...
Page 17 Bookshelf 3 Drawer Unit 5 Drawer Unit SMI Birch Flat Files Beautiful Birch Flat Files are made from birch veneers. They come unfinished, ready to stain, paint the color of your choice, or finish as you prefer. No particleboard used. Drawers are constructed exactly like the premium Oak Flat File drawers. Standard drawer pulls are almond colored plastic. White or black plastic drawer pulls are available upon request. Birch Files are excellent for price conscious buyers who demand quality construction. Available in three and five drawer units. Bookshelf units can be added for a more efficient and versatile use of work area. Description 1824-5DB 5 Drawer Unit, 16 ⁄ "h x 28"w x 21¾"d 1824-CB Cap, 3/4"h x 28"w x 21¾"d 1824-FBH Flush Base, 3¼"h x 27¾"w x 19½"d 1824-SB...
Page 18 Drawing Boards, Trays DB and LB boards have T-metal edges ALVIN Drawing Table Caddy ® Helps keep the drawing table organized. Special compartments for technical pens, rulers, pens, markers, and other everyday small drawing accessories. Can be installed on either the left or right side of table. Attaches easily to any top which accepts wood screws.
Page 19 ALVIN VYCO Board Cover ® Durable, versatile, easy-to-install, 5-ply, VYCO vinyl board cover is manufactured specifically for the protection of heavily used surfaces. • The perfect, smooth, stain-resistant working surface for all drawing boards, tables, desks, filing cabinets, counter tops, and shelving. • Compass points, tacks, and hard pencil impressions will not mar VYCO-protected surfaces – self-sealing surface recovers almost immediately. • The translucent VBC55 is ideal for use with lightboxes or protecting fine wood and glass-topped furniture. Also useful over graph paper. • Preserves and protects expensive furniture against mars, scars, cuts, dents, and prolongs the life of new boards.
Page 20 Drawing Boards Aluminum Straightedge ALVIN PXB Portable Parallel Straightedge Board ® Alvin’s PXB boards provide the convenience of a studio work surface in a compact, portable unit. Each PXB is made from a smooth, warp-free white Melamine carrying handle, non-slip tractor feet designed to grip the table edge at the perfect drawing angle, foldaway legs, and an acrylic straightedge whose height can accommodate material thicknesses up to 3/16". Shipped fully assembled. Features include: • Precision-made aluminum straightedge with rubberized grip eliminates the need for a T-square and includes an inking edge for clean, smudge-free results with pens, pencils, and markers. Underwire system keeps the blade parallel no matter where it is moved. Metal side brackets accommodate material thicknesses up to 3/16" beneath. Twin braking system locks blade securely in any position. • Non-slip rubber “Grip-Track” feet on the underside of the board allow the PXB to overhang the table edge at the perfect drawing angle bringing the work surface closer to you.
Page 21 ALVIN Track Drafting Machines ® Smooth and effortless tracking is accomplished by 14 uniquely designed flat face bearing rollers strategically placed for precise vertical and horizontal movement at any board angle. A comfortably designed palm rest and thumb release allows easy rotation of the protractor head with convenient 15° auto index settings and intermediate lockable fine line adjustment. The 360° protractor head with built-in magnifier is divided into single degrees with five-minute double vernier permitting angular accuracy to 1/12 of a degree. A double action hinge system allows the head and scales to be tilted vertically from the board surface for a clear working view and also allows the head to sit flat on the board compensating for any board irregularities. A floating head mechanism positions the protractor above the surface...
Page 22 Straightedges ALVIN Paral-Liner ® Mobile Parallel Straightedge Rigid phenolic construction with a black satin finish. Mobile straightedge affords frictionless operation through the floating action of the nylon rollers mounted on the blade. The rollers retract at a touch, securing the blade for accurate drawing. Acrylic edges are elevated to prevent ink smears and steel ball-bearing pulleys provide smooth movement. Comes with all mounting hardware and installation instructions. Length 1101-30 30" $139.00 ea 1101-36 146.00 ea...
Page 23 ALVIN Mobile Organizers ® Reasonably priced mobile organizers that can simplify your storage needs. Perfect for home, studio, office, or shop use. Unit is built with a strong black metal body frame, holding five rigid plastic drawers, 16"l x 11½"w x 3½"d. Top of unit is made from pressed wood with PVC laminate surface and edge trim. Unit is equipped with four hooded casters, two of which are locking. Shipped fully assembled. Overall dimensions with casters: 13¾"w x 17¼"d x 25½"h. Shipping weight: 25 lbs. Description TAB33 White $139.00 ea TAB33-BK Black 139.00 ea ALVIN Rover Mobile Taboret ® A compact organizer ingeniously designed to bring order to the work area of professionals. Features pivoting utensil drawers (9½"w 11"l x 1½"deep, inside dimension) and multiple shelves, some of which can be removed to create a deep-well storage space for holding rolls of paper, tubes, and other long items in an upright position. Made of practically indestructible ABS plastic, the Rover taboret holds an incredible 500 pounds. Five hooded casters (four non-locking and one locking) assure stability and smooth mobility. Shipped fully assembled. Overall dimensions with casters: 29"h x 17"w x 16"d. Shipping Color Weight TAB77-BK $495.00 ea Black 27 lbs. TAB77-WH White 27 lbs.
Page 24 Flat Files MAYLINE C-FILES ® Self-contained steel files have integrated caps and can be bolted together for stacking. Drawers have front metal plan depressor and rearhood to keep documents flat and orderly. The drawer fronts are a double-wall construction. Whether the need is for active or archival storage of drawings, C-Files are perfect for the requirement and structurally provide the greatest protection of any plan file on the market.
Page 25 522.00 ea 3¼" 47 lbs. 2¼" 45 lbs. 503.00 ea 2¼" 50 lbs. 545.00 ea ALVIN Chairs ® SAFCO ® Corrugated Fiberboard Roll Files An economical way to organize and store drawings, charts, plans, blueprints, maps, and other rolled materials. Corrugated fiberboard shell is two layers thick and reinforced by a steel frame.
Page 26 Roll Files SAFCO Mobile Roll Files ® “Grandstand” design allows rolls of various sizes to be stored upright in one file with easy access. Compartments are edged with a protective plastic molding to keep edges from wearing. Solid wood-core product with a long- wearing textured putty vinyl laminated finish. 2" swivel casters offer instant mobility. Assembly required. No. of Slots Overall Dimensions 3042 23¼"h x 15¼"w x 13¼"d 3043 ⁄ " h x 30 ⁄...
Page 27 ALVIN ® Step-Design Roll File Unique step-design base includes twenty-four ⁄ " x 3 ⁄ " openings for easy access to rolled maps, plans, drawings, and tubes. The four swivel casters give it high mobility. Constructed of white plastic-coated heavy-gauge steel rods. Includes custom-fitted bottom dust protector. Overall dimensions: 32"h x 21"w x 14"d. Assembly required. Shipping weight 15 lbs. No. WSF36 SRP $86.00 ea ALVIN King-Size Roll File ®...
Page 28 Vertical Plan Files SAFCO ® Tubular Steel Wire Roll Files Economical, lightweight tubular steel frame with chrome plated grids, rolls easily to point-of-use on twin wheel casters (two lock). Square design provides easy access and removal of materials. Light gray finish. Assembly required. Description Holds 12 tubes, 3¾" x 3¾" grid size 3090 $98.00 ea 18¼"w x 14¼"d x 23 ⁄ "h SAFCO ® Chrome Wire Roll Files Attractive chrome plated units are constructed from heavy-gauge steel rod. Four swivel casters allow easy mobility to point-of-use. Grandstand design provides...
Page 29 MAYLINE VERTICAL PLAN FILES ® Mayline Vertical Plan Files are the ideal ® choice for economical, mobile filing of active documents. Document binders have an easy-to-use clamp that grips sheets securely without punching or stapling. Mayline clamps ® and pivot hangers have been designed to be interchangeable with the systems of other manufacturers, so you can easily integrate Mayline...
Page 30 Lamps ALVIN ® Combination Lamp Fluorescent and incandescent lighting in one convenient unit. Independent rocker switches enable you to operate the lights independently or together. Spring-balanced swing arm features spring covers and a generous 45" reach. Large comfortable thumb knobs make it easy to adjust arm and shade angle. The 10" diameter heavy-duty metal shade has a stay cool handle for easy positioning. All-metal construction with 3-prong grounded power cord, electronic ballast, and heavy- duty metal mounting clamp. Takes one energy-saving T5 28w circular fluorescent bulb (included) and one 100w maximum incandescent bulb (not included). UL listed. Color CL1755-B $99.95 ea...
Page 31 ALVIN 2 in 1 ® Portable Lamp This 2 in 1 portable lamp is our most versatile ever. Functions as a handy desk lamp with base or simply clamp it on with the plastic C-Clamp (both included). Features 40" reach extension arm. On/Off switch on shade. Takes a PL-13w bulb (included) and are easily obtainable at any home store (60w incandescent). Color PL2522 $59.00 ea Black ADJUSTABLE CLAMP Heavy-duty adjustable clamp allows for mounting of magnifier and task lamps on drafting tables and other angled surfaces up to 2½" thick. A comfortable knob provides easy positioning to the desired angle and then locks securely in place to prevent the lamp from moving.
Page 32 ALVIN Chairs ® PRESTIGE Artist/Drafting Chair A deluxe drafting chair for the serious artist or designer that is both comfortable and sturdy. Features include pneumatic height control, polypropylene seat and back shells, a height- and depth-adjustable backrest with tilt-angle control, articulating seat and backrest, dual- wheel casters and a 24" diameter reinforced nylon base. Adjustable 18" diameter chrome foot ring comes standard. Seat cushion is 19"w x 18"d x 3" thick. Backrest is 17"w x 15"h x 3" thick. Height adjusts from 24" to 34". Optional armrests available on page 29. Fabric Color...
Page 33 14"w x 12"h. Height adjusts from 23" to 33". Fabric Color Weight SRP DC999-40 $159.00 ea Black 30 lbs. DC999-60 Medium gray 30 lbs. 159.00 ea ALVIN Chairs ® STUDIO Artist/Drafting Chair A functional, economical chair for studio use. Features include pneumatic height control, polypropylene seat and back shells, a height- and depth-adjustable hinged backrest, built-in steel teardrop footrest, dual-wheel casters and a 23" diameter reinforced nylon base. Seat cushion is 17"w x 16"d x 2" thick. Backrest is 16"w x 11"h. Height adjusts from 23" to 27". Fabric Color Weight SRP CH202 $145.00 ea...
Page 34 ALVIN Chairs ® version Black-40 Gray-60 BUDGET Task Chairs Affordable, sturdily-constructed task chairs are perfect for home, office, or student use. Features include pneumatic height control, polypropylene seat and back shells, a height- and depth-adjustable hinged backrest, dual-wheel casters, and a 22" Office diameter reinforced nylon base. Seat cushion is 17"w x 16"d x 2" thick. Backrest is 16"w x 12"h. Office model height adjusts from 16½" to 21½". Drafting model includes CK38 height extension kit and adjusts from 24" to 29". Fabric Color Weight SRP Drafting Height CH222-40DH Black 29 lbs. $130.00 ea CH222-60DH Gray 29 lbs. 130.00 ea...
Page 35 185.00 ea Office Height CH290-40 Black 24 lbs. 156.00 ea CH290-60 156.00 ea Medium gray 24 lbs. Office Black-40 Gray-60 ALVIN Chairs ® COMFORT ECONOMY Task Chairs A quality design at an affordable price, these chairs are ideal for home, office, study, or shop. Features include pneumatic height control, polypropylene seat and back shells, a height- and depth-adjustable hinged backrest, dual-wheel casters and a 24" diameter reinforced nylon base. Seat cushion is 18"w x 17"d x 2" thick. Backrest is 14"w x 12"h. Office model height adjusts from 17" to 22". Drafting model includes CK49 height extension kit and adjusts from 24½" to 29½". Optional armrests...
Page 36 Blk w/leather highlights 37 lbs. 245.00 ea WARRANTY ® All ALVIN Chairs have a 2-year warranty on gas cylinders and a 3-year warranty against defects in material and construction (except fabric). All fabric and foam meet strict California and BIFMA codes. Office...
Page 37 A padded lumbar support can be adjusted up and down for comfort. Black only. Description Weight SRP CH724 $259.00 ea Low back, black 40 lbs. ALVIN Back view AMERICAN-STYLE Draftsman’s Chair Ruggedly constructed traditional chair that offers both comfort and durability. Features include pneumatic height control, a height- and depth-adjustable hinged...
Page 38 ALVIN Chairs ® ALVIN Utility Stool ® An extremely rugged and stable utility stool on a traditional American-style base, this model has a durable urethane seat and backrest built to withstand heavy use in rigorous work environments. Will resist punctures, water, and most chemicals. Features include pneumatic height control, a height- and depth-adjustable hinged backrest, and a 23" diameter black powder-coated tubular steel base with built-in foot ring. Seat is 17"w x 16"d x 2" thick. Backrest is 15"w x 12"h. Height adjusts from 21" to 28". Comes complete with a set of locking casters and a set of non-slip floor glides. Optional armrests...
Page 39 Weight SRP CK52 Black 5 lbs. $25.00 ea Height Extension Kits These convenient height CK38 extension kits easily convert Alvin's office-height chairs into drafting-height models. Each kit includes a strong cylindrical steel shaft with tapered end to lock CK49 into the chair base. Adds approximately 7½" to the height of the chair. Foot ring models can be adjusted vertically and then locked at the desired height.
Page 40 ALVIN & COMPANY, INC. P .O. Box 188 Windsor, CT 06095 ALVIN & COMPANY, INC. P .O. Box 188, Windsor, CT 06095 Toll Free: (800) 444-2584 • Fax: (800) 777-2896 www.alvinco.com LIT-FURNITURE...
