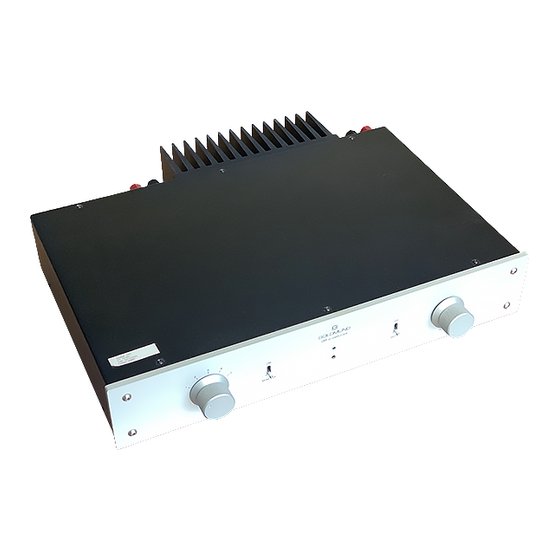

- Page 1 GOLDMUND SRI2 INTEGRATED AMPLIFIER USER MANUAL...
- Page 2 GOLDMUND SRI2 INTEGRATED AMPLIFIER USER MANUAL ATTENTION : No connection or manipulation must be done before reading these instructions. Damage to the amplifier may result if the following instructions are not consciously understood and applied.
- Page 3 2 - CHOICE OF AMPLIFIER LOCATION AND COOLING The GOLDMUND SRI2 amplifier generates a very important amount of heat. It is mandatory to allow a proper cooling of the heat sink. Avoid any location which is not properly ventilated and avoid to put on top any equipment sensitive to temperature.
- Page 4 5 - AMPLIFIERS CONTROLS - POWER On the back panel of the GOLDMUND SRI2 amplifier you will find the POWER key, used to power the amp on. After a very short delay the two channels are connected and the POWER led switches on.
- Page 5 - TAPE MONITOR This switch, when pushed down, allows the monitoring of the TAPE machine connected to the TAPE INPUT and TAPE OUTPUT back panel connector. - SELECTOR This selector allows to choose the source from one of the 5 inputs. - REMOTE-CONTROL The SRP2 uses a volume motor-driven potentiometer which can be adjusted by the remote controller provided for increasing (+) or decreasing (-) the sound level.
- Page 6 6 - SOUND QUALITY OPTIMIZATION - Warm-up sonic effect. If the amplifier has been left unpowered for a few days, the optimum sound quality is only reached after few minutes. The critical circuits have to warm up to around +55 degrees Celsius (+131 degrees Fahrenheit) before achieving their optimal performances.
-
Page 7: Technical Data
GOLDMUND representative readjust the DC offset. This very simple operation takes only few minutes and will give you the safety of long years of unmatched sound quality. - Page 8 NOISE - Signal-to noise ratio on line input : > 85 dB (0.01 Hz - 10 Mhz). - Weighted ASA A : > 90 dB. OPERATING TEMPERATURE - Room temperature : -30 to +40 degrees Celsius ( -22 to +104 degrees Fahrenheit). - Internal temperature : +45 to +65 degrees Celsius ( +113 to +149 degrees Fahrenheit).
