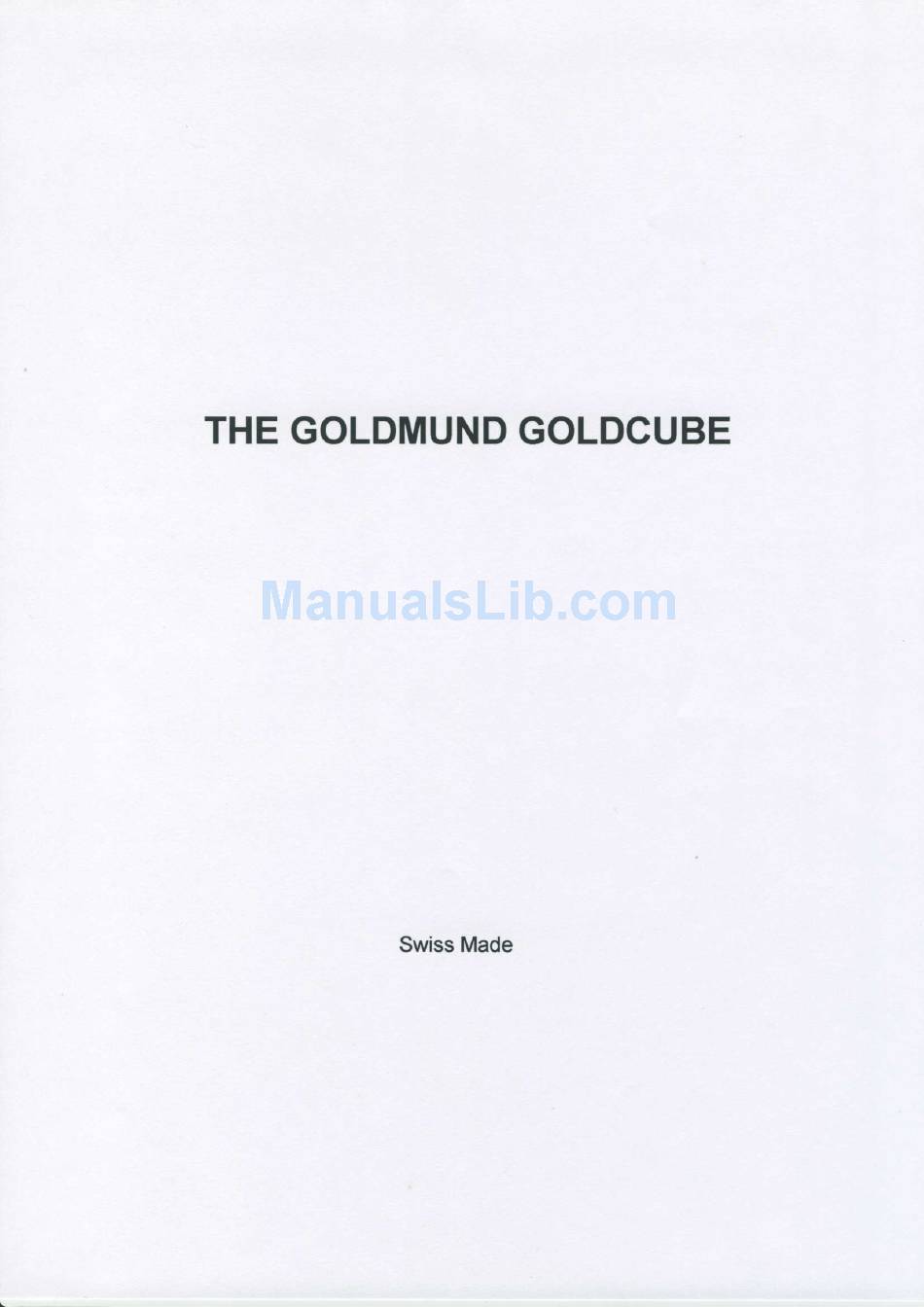

- Page 1 THE GOLDMUND GOLDCUBE Swiss Made...
-
Page 2: Choice Of Amplifier Location And Cooling
CHOICE OF AMPLIFIER LOCATION AND COOLING The GOLDMUND GOLD CUBE has been designed to be used in combination with the GoLDMUND APOLOGUE speaker sys- tem, in the special lodging of its back panel. In this case, the amplifier is automatically reaching its proper temperature of f unction for optimized performances. -
Page 3: Line Vo Ltage Adjustment
LINE VO LTAGE ADJUSTMENT The GOLDMUND GOLD CUBE amplifier is internally wired for a specif ic line voltage. ATTENTION : A 234V adjusted amplifier will function properly f or AC line voltage between 2OOV and 245Y . For a 1 1 7V version, the AC line must deliver between 105 and 125V. - Page 4 AMPLIFIERS CONTROLS On the front plate of the GOLDMUND GOLD CUBE are only accessible: The power key, used to power the amp on. When activated. the speaker is connected after a very short delay and the red LED switches on. The amp is powered off by switching off the power key.
-
Page 5: Safety Features
SAFETY FEATURES The GOLDMUND GOLD CUBE amplifier provides very sophisti- cated features to protectthe amplifierandthe speaker against all kind of mishandle or comoonent failure. -
Page 6: Important Notice
MA I N T E N A NCE The GOLDMUND GOLD CUBE is gold plated with a 1O microns 18kt gold layer, using the best ieweler technology. lt should never alter externally, except if mishandled. -
Page 7: Technical Data
TECHNICAL DATA POWER - No m i n al p ow e r : l oo w R M S (2 -8 O hm sl . 60 W RMS l1 - 16 Ohmsl. - Msximum power : l50WRMS13Ohms). - Maximumvoltag6: 35Vpeak. - Maximum cu,,cnt: 20 A Doak.
