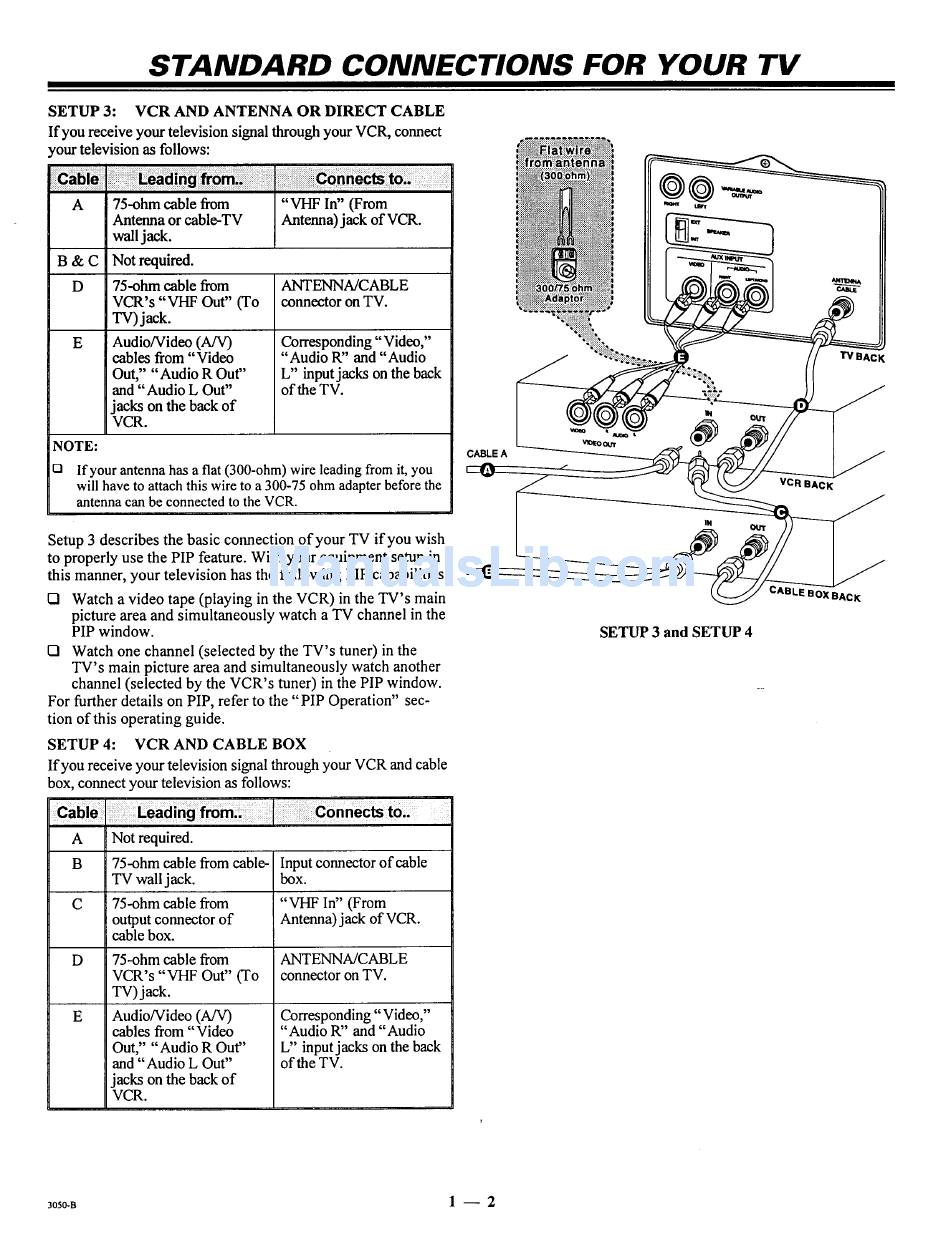

STANDARD CONNECTIONS FOR YOUR TV
SETUP 3: VCR AND ANTENNA OR DIRECT CABLE
If you receive your television signal through your VCR, connect
your television as follows:
A 75-ohm cable from "VHF In" (From
Antenna or cable-TV Antenna)jack of VCR.
waUjack.
B & C Not required.
D 75-ohm cable from ANTENNA/CABLE
VCR's "VHF Out" (To connector on TV.
TV) jack.
E
Audio/Video (A/V)
cables from "Video
Out," "Audio R Out"
and "Audio L Out"
jacks on the back of
VCR.
Corresponding "Video,"
"Audio R" and "Audio
L" input jacks on the back
of the TV.
NOTE:
D If your antenna has a flat (300-ohm) wire leading from it, you
will have to attach this wire to a 300-75 ohm adapter before the
antenna can be connected to the VCR.
Setup 3 describes the basic connection of your TV if you wish
to properly use the PIP feature. With your equipment setup in
this manner, your television has the following PIP capabilities:
Q Watch a video tape (playing in the VCR) in the TV's main
picture area and simultaneously watch a TV channel in the
PIP window.
El Watch one channel (selected by the TV's tuner) in the
TV's main picture area and simultaneously watch another
channel (selected by the VCR's tuner) in the PIP window.
For further details on PIP, refer to the "PIP Operation" sec-
tion of this operating guide.
SETUP 4: VCRAND CABLE BOX
If you receive your television signal through your VCR and cable
box, connect your television as follows:
CABLE A
SETUP 3 and SETUP 4
TVBAcK
VCR BACK
OXBAcK
A Not required.
B 75-ohm cable from cable- Input connector of cable
TV wall jack. box.
C 75-ohm cable from "VHF In" (From
output connector of Antenna) jack of VCR.
cable box.
D 75-ohm cable from ANTENNA/CABLE
VCR's "VHF Out" (To connector on TV.
TV) jack.
E
Audio/Video (A/V)
cables from "Video
Out," "Audio R Out"
and "Audio L Out"
jacks on the back of
VCR.
Corresponding "Video,"
"Audio R" and "Audio
L" input jacks on the back
of the TV.
30so-a 1 -- 2
