Euphonix System 5 Hybrid Pilot Operation Manual
3. Click the Control Surfaces tab at the top.
Now both programs can follow the same instructions.
4. Click the + button.
The Add Control Surface dialog opens.
5. Select Mackie Control from the Control Surface Type drop-down menu.
6. For the Input and Output Connection drop-down menus, select the MIDI
send and receive ports.
These will be the same port, so if Soundtrack Pro uses ports 5–8, the first con-
troller sends and receives on port 5.
7. Click OK to close the Add Control Surfaces dialog.

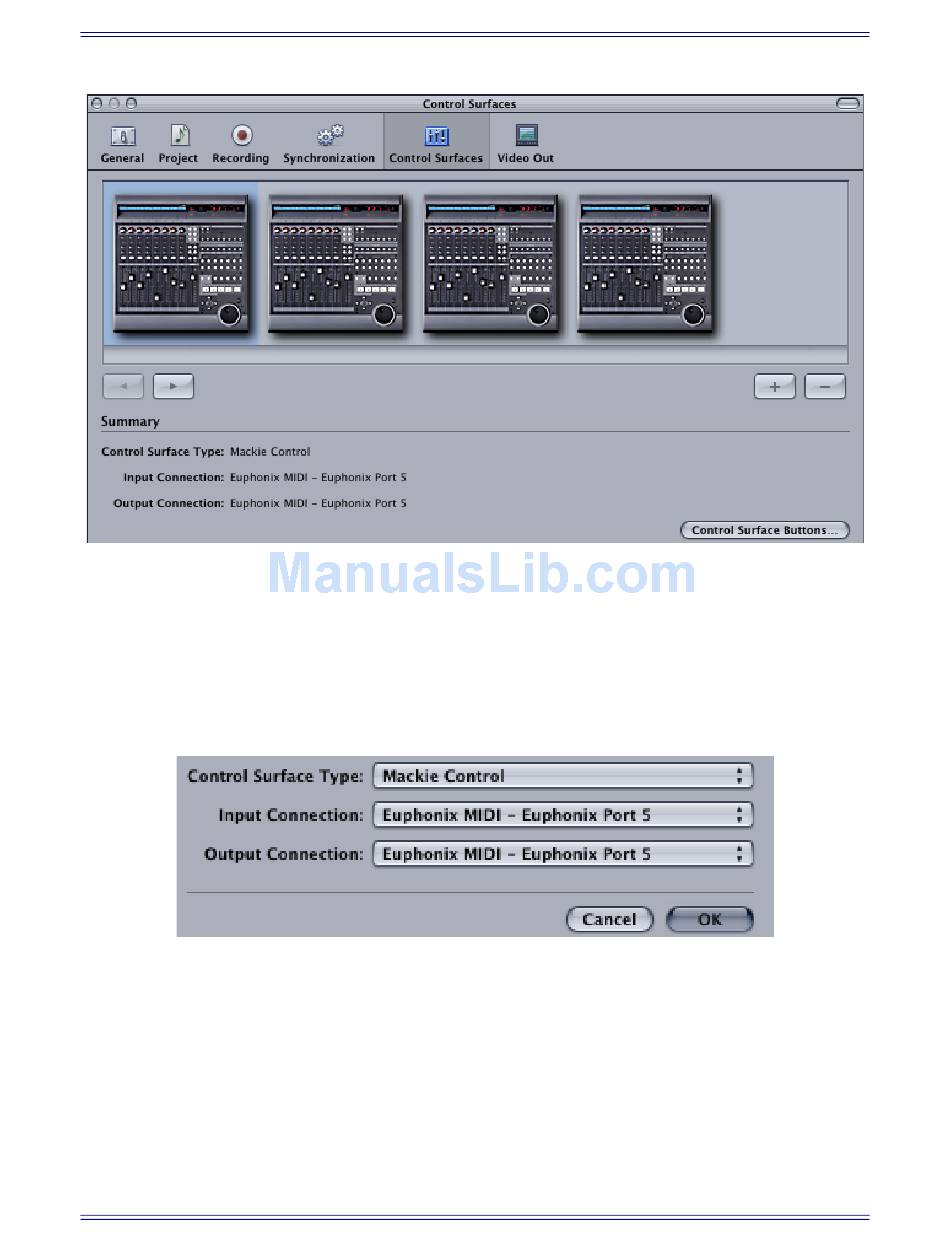

Figure 2-7 Add Control Surface dialog (Soundtrack Pro)
Figure 2-8 Add Control Surface dialog
Console/Workstation Operations
25
