Page 1: Installation Manual

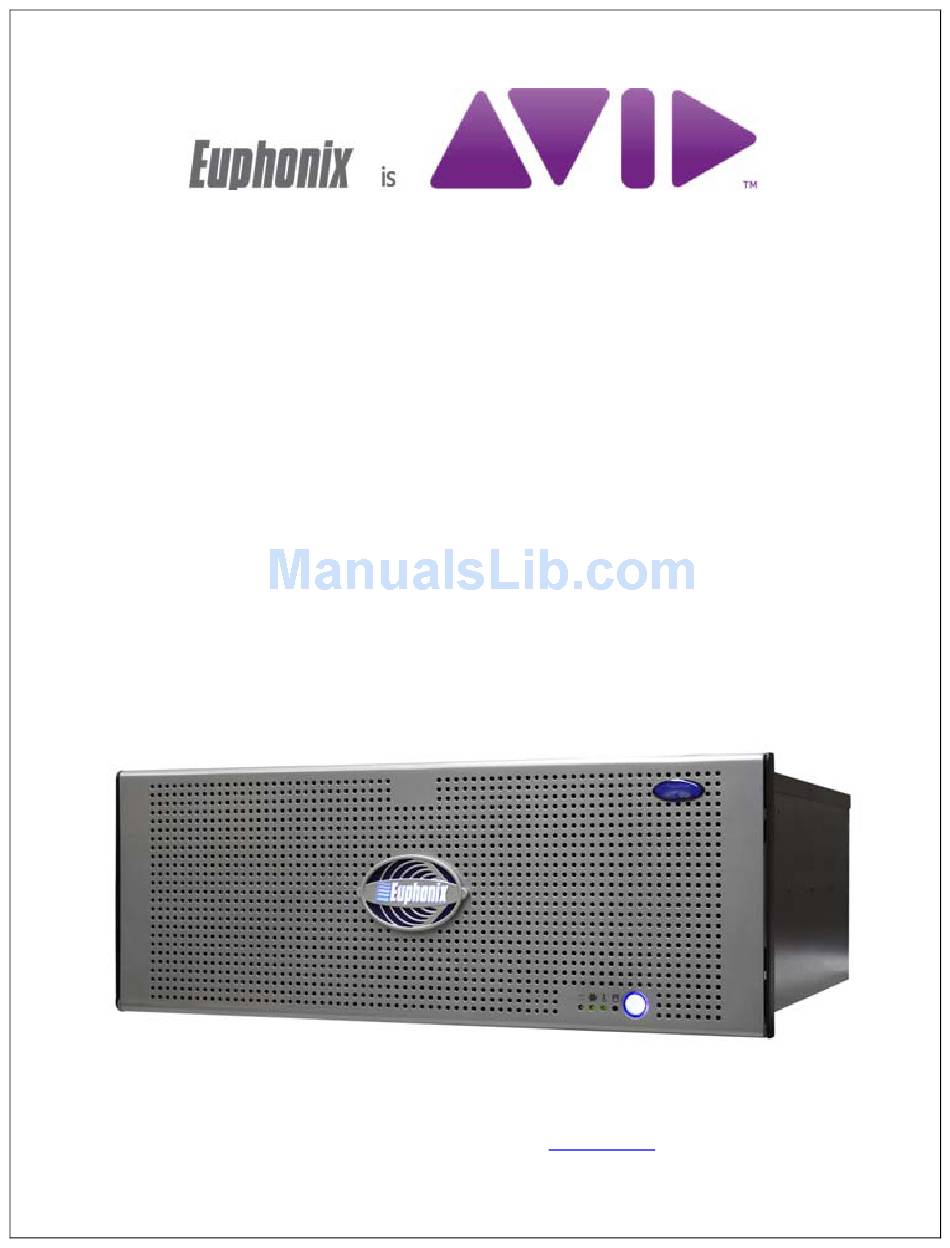

SC263 System Computer Installation Manual Document Revision: A Part Number: 840-11305-01 Release Date: May 2010 Euphonix is Avid. Learn more at www.avid.com... -
Page 2: Regulatory And Safety Notices
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at personal expense. Euphonix is Avid. Learn more at www.avid.com... -
Page 3: Canadian Ices-003
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe A respecté toutes les exigences du Règlement sur le matériel brouilleur du Canada. Euphonix is Avid. Learn more at www.avid.com... -
Page 4: European Union Declaration Of Conformity
Verantwortung,daß dieses Produkt, déclarons sous notre seule responsabilité que le produit, declaramos, bajo nuestra sola responsabilidad, que el producto, verklaren onder onze verantwoordelijkheid, dat het product, dichiariamo sotto nostra unica responsabilità, che il prodotto, Euphonix is Avid. Learn more at www.avid.com... - Page 5 è conforme alla/e seguente/i norma/o documento/i normativo/i. The requirements of the European Council: Safety: Directive 2006/95/EC EN 60065:2002 /A1:2006 EMC: Directive 2004/108/EC EN 55103-1:1996 EN 55103-2:1996 Euphonix is Avid. Learn more at www.avid.com...
-
Page 6: Led Safety Notices
Optical connections are located on the rear panel and are typically labeled “Optical” or “SPDIF/ADAT.” The exact location of optical connections is identified more clearly elsewhere in the documentation for the Avid hardware device. Euphonix is Avid. Learn more at www.avid.com... -
Page 7: European Union
• Reliable earthing — Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (for example, use of power strips). Euphonix is Avid. Learn more at www.avid.com... -
Page 8: Lithium Battery Replacement
Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. VAROITUS Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. Euphonix is Avid. Learn more at www.avid.com... - Page 9 Overview The SC263 is the System Control Computer for broadcast versions of the S5 and MaxAir families 4U, chassis inc. machine control, GPIO (TT002), and Mic and Monitoring communication control Redundant PSU’s and SNMP System monitoring Front Panel Power Switch and Status Indicators: See Status Module below.
- Page 10 15. TCC Extension Port (DC-62, optional): Connect a second TCC breakout cable to this port connect up to four a to dditional ML530 Mic/Line Interfaces. 16. SNMP Serial Port (DE-9): This port is used to configure the SNMP card via another computer. Euphonix is Avid. Learn more at www.avid.com...
-
Page 11: Specifications
Connect the machine room KVM extender (transmitter end) to the VGA, keyboard, and mouse connectors to the rear panel of the SC263. A second KVM extender (receiver end) should be installed at the control surface, close to where the Emix monitor, keyboard and mouse are to be located.
