Euphonix System 5 Hybrid Pilot Operation Manual
4. Click Controller.
The right pane shows any installed controllers. However, at this point the pane
is empty unless other interface controllers have been previously installed.
5. Click the Add button.
The Controller Properties dialog opens.
6. Type the desired Hybrid name in the Name field (i.e., Hybrid in Studio 2).
7.
Select the Enable checkbox.
8.
Choose OASIS from the Driver drop-down selection box.
9.
Click the Properties button next to the Driver selection box.
The OASIS Configuration Properties dialog opens.

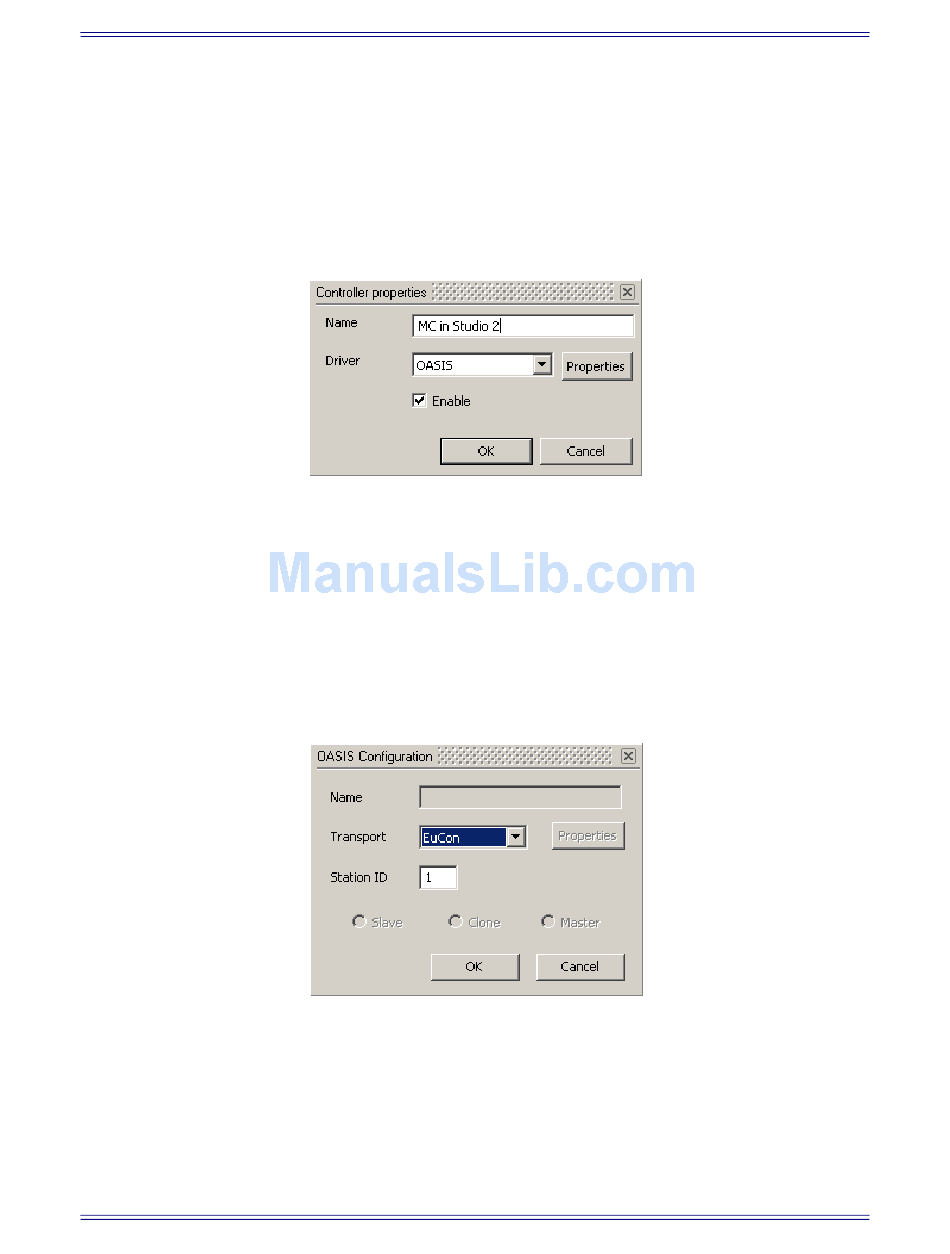

Figure 2-2 Controller Properties dialog
Figure 2-3 OASIS Configuration Properties dialog
16
Console/Workstation Operations
