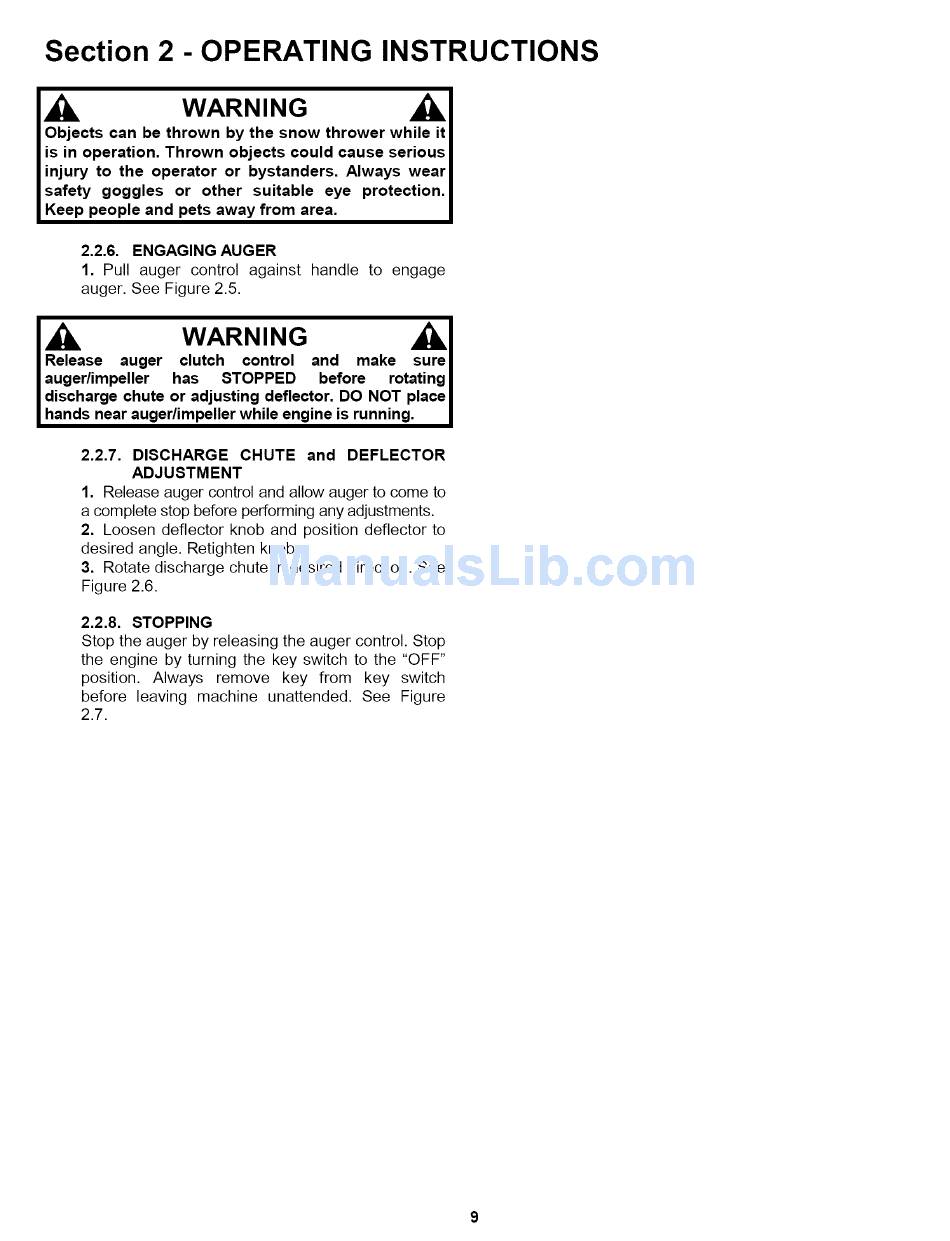

Section 2 - OPERATING INSTRUCTIONS
Objects can be thrown by the snow thrower while it
is in operation. Thrown objects could cause serious
injury to the operator or bystanders. Always wear
safety goggles or other suitable eye protection.
Keep people and pets away from area.
2.2.6. ENGAGING AUGER
1. Pull auger control against handle to engage
auger. See Figure 2.5.
Release auger clutch control and make sure
auger/impeller has STOPPED before rotating
discharge chute or adjusting deflector. DO NOT place
hands near auger/impeller while engine is running.
2.2.7. DISCHARGE CHUTE and DEFLECTOR
ADJUSTMENT
1. Release auger control and allow auger to come to
a complete stop before performing any adjustments.
2. Loosen deflector knob and position deflector to
desired angle. Retighten knob.
3. Rotate discharge chute in desired direction. See
Figure 2.6.
2.2.8. STOPPING
Stop the auger by releasing the auger control. Stop
the engine by turning the key switch to the "OFF"
position. Always remove key from key switch
before leaving machine unattended. See Figure
2.7.
