Snapper LE3171R, LE3191R, LE3191E Safety Instructions & Operator's Manual

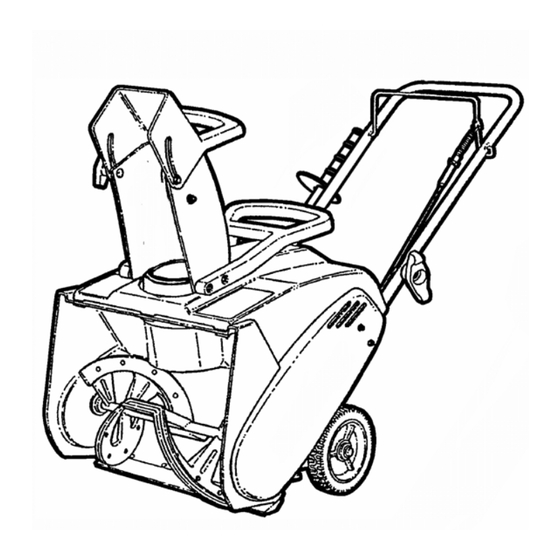

L.e. single stage small frame snow thrower series 1
Hide thumbs Also See for LE3171R, LE3191R, LE3191E:
Table of Contents

Advertisement

Quick Links

See also: Safety Instructions & Operator's Manual
MODEL DESIGNATION
ENGINE HP
L – Light Weight Frame
E – Easy Operation
3 – 3.0 HP (Engine Horse Power)
Thank you for buying a SNAPPER Product! Before operating your Snow Thrower, read this manual carefully and
pay particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 - 4. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance
with the operating instructions and common sense.
COPYRIGHT © 2004
SNAPPER PRODUCTS INC.
ALL RIGHTS RESERVED
Safety Instructions & Operator's Manual for
MODEL NUMBER EXPLANATION
L
E
17 – 17" Auger Width
19 – 19" Auger Width
L.E. SINGLE STAGE

SNOW THROWER

3
19
1
SMALL FRAME
SERIES 1
MODELS
E
ENGINE OPTIONS
SERIES DESIGNATION
1 -- Series Designation
E – 110 Volt Electric Start
R – Recoil Start
INSTRUCTION No. 7-1888 (I.R. 3/3/04)
LE3171R
LE3191R
LE3191E
