Snapper L1226E Parts Manual

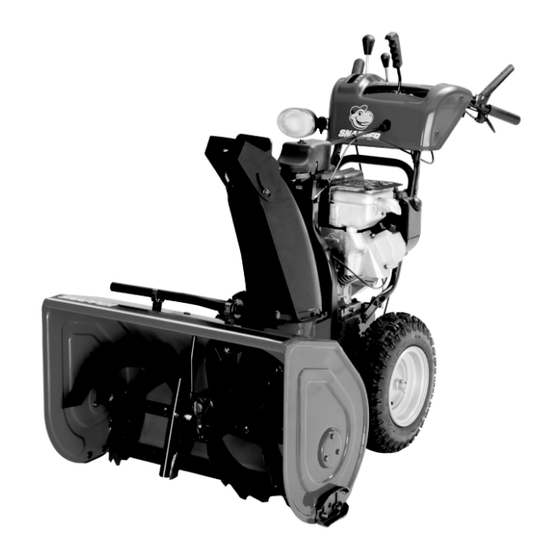

Large frame two stage snow throwers 26", 28", 30", & 32" 2008 models
Hide thumbs Also See for L1226E:

Advertisement

Table of Contents

See also: Operator's Manual , Parts Manual
SNOW THROWERS 26", 28", 30", & 32"
Briggs & Startton Yard Power Products Group
Copyright ©
2007
Briggs & Startton Corporation
Milwaukee, WI USA. All Rights Reserved
LARGE FRAME TWO STAGE
McDonough, GA, 30253 U.S.A.
Revision IR,
8/27/2007
Parts Manual for
2008 MODELS
MODEL
L1226E (1695324)
L1226EX (1695325)
L1428E (1695328)
L1428EX (1695329)
L1530E (1695332)
L1530EX (1695333)
L1632E (1695336)
L1632EX (1695337)
Manual No.
TP 400-5286-IR-LF-N
7006185

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L1226E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Snapper L1226E

Summary of Contents for Snapper L1226E

  • Page 1 Milwaukee, WI USA. All Rights Reserved LARGE FRAME TWO STAGE McDonough, GA, 30253 U.S.A. Revision IR, 8/27/2007 Parts Manual for 2008 MODELS MODEL L1226E (1695324) L1226EX (1695325) L1428E (1695328) L1428EX (1695329) L1530E (1695332) L1530EX (1695333) L1632E (1695336) L1632EX (1695337) Manual No.

  • Page 3: Table Of Contents

    PAGE GROUP Handle & Controls Group Auger Housing & Chute Group Auger Drive Group Engine Group Traction Drive Group - Standard Traction Drive Group - EZ Turn Wheel & Tire Group Decals Group LARGE FRAME TWO STAGE 2008 MODELS Table Of Contents Manual No.
  • Page 4 Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...

  • Page 5: Handle & Controls Group

    Handle & Controls Group Item Part No Description 1923701 CAPSCREW, Hex Head 3/8-16 x 2 G5 1732470 KNOB, Interior Thread 3/8-16 1732427 ROD, 3/8 Diameter 5" Large, 3/8-16 x 1 Chute 1924356 WASHER, 3/8 724361 SPRING 1918266 WASHER, 3/8 1919439 NUT, Hex Lock ESNA Light 3/8-16 1722667 HANDLE, Clutch L.H.
  • Page 6 Handle & Controls Group Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...
  • Page 7 Handle & Controls Group Item Part No Description 1732471 CABLE & SPRING ASSEMBLY, Auger Drive R.H. 1722638 HANDLE, Clutch R.H. 1923358 NUT, Hex Centerlock 1/4-20 1726317 GRIP 1715655 SPACER 1678392 SPACER 1734587A HANDLE, Upper R.H. 1734586A HANDLE, Upper L.H. 1960723 CARRIAGE BOLT, 5/16-18 x 2-1/4 G5 1732781A HANDLE, Lower...

  • Page 8: Auger Housing & Chute Group

    Auger Housing & Chute Group Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...
  • Page 9 Auger Housing & Chute Group Item Part No Description 1734555D HOUSING ASSEMBLY, 26” 1734556D HOUSING ASSEMBLY, 28” 1734557D HOUSING ASSEMBLY, 30” 1734558D HOUSING ASSEMBLY, 32” 1732384A BLADE, Scraper 26” 1709947A BLADE, Scraper 28” 1732385A BLADE, Scraper 30” 1709948A BLADE, Scraper 32” 1960699 CARRIAGE BOLT, 5/16-18 x 5/8 G5 1935048...
  • Page 10 Auger Housing & Chute Group Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...

  • Page 11: Auger Housing & Chute Group

    Auger Housing & Chute Group Item Part No Description 1931353 CARRIAGE BOLT, 3/8-16 x 1-3/4 1733026 WASHER, Powdered Metal 1732238 CABLE, Chute Brake 1732837A BRACKET, Brake 1732308 ARM & PAD ASSEMBLY, Brake 1679554 SPRING, Extension 1923282 CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5 1922127 CAPSCREW, Hex Head 5/16-18 x 1-3/4 1923358...

  • Page 12: Auger Drive Group

    Auger Drive Group Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...
  • Page 13 Auger Drive Group Item Part No Description 1668344 PIN, SHEAR 7023590 COTTER PIN, 1/4” Self Locking 1612187A IMPELLER ASSEMBLY, Large Frame Snow 1960474 SCREW, Set, Square Head Cup Point 3/8-16 x 1/2 G8 1732185 PULLEY, w/Hub 1734674A AUGER ASSEMBLY, 24” & 26” R.H. 1734676A AUGER ASSEMBLY, 28”...

  • Page 14: Engine Group

    Engine Group Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...
  • Page 15 Engine Group Item Part No Description * ENGINE, 8.5HP B&S Mod. #15C1140112E1 * ENGINE, 9.5HP B&S Mod. #20A4140117E1 * ENGINE, 10.5HP B&S Mod. #20E2140118E1 * ENGINE, 11.5HP B&S Mod. #21C2140132E1 * ENGINE, 8.5HP B&S Mod. #15C1140111E1 * ENGINE, 9.5HP B&S Mod. #20A4140119E1 * ENGINE, 10.5HP B&S Mod.
  • Page 16 Engine Group Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...
  • Page 17 Engine Group Item Part No Description 1960027 WASHER, 1/2 1733451 BRACKET & HUB ASSEMBLY, Spring 725367 PIN, Hair 1735135 PIN, Clevis 1740906A PANEL, Bottom 1927429 SCREW, Hex Washer Head Taptite 1/4-20 x 5/8 722455 SPRING, Extension Auger Idler 1733154D FRAME, EZ Turn Axle 1740572D FRAME, EZ Turn Axle 1733583D...

  • Page 18: Traction Drive Group - Standard

    Traction Drive Group - Standard Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...
  • Page 19 Traction Drive Group - Standard Item Part No Description 724613 CHAIN, Roller 723655 RETAINER & BUSHING ASSEMBLY 724619 WASHER 1924856 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 724627 CHAIN, Roller 721910 RETAINER, Ring 7/16 722377 SPRING LINK ASSEMBLY STANDARD 722423 SPRING, Extension 722081...

  • Page 20: Traction Drive Group - Ez Turn

    Traction Drive Group - EZ Turn Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...
  • Page 21 Traction Drive Group - EZ Turn Item Part No Description 724613 CHAIN, Roller 723655 RETAINER & BUSHING ASSEMBLY 724619 WASHER 1924856 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 724627 CHAIN, Roller 721910 RETAINER, Ring 7/16 722377 SPRING LINK ASSEMBLY 722423 SPRING, Extension 1960027...
  • Page 22 Traction Drive Group - EZ Turn Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...
  • Page 23 Traction Drive Group - EZ Turn Item Part No Description 1667622 KEY, Hi Pro 1960114 WASHER, 3/4 1928352 NUT, Hex Flange 3/8-16 Whiz Lock 1921965 CAPSCREW, Hex Head 3/8-16 x 3/4 G5 724409 BEARING, Ball 724347 RETAINER, Bearing 722228 COLLAR, Locking 1720298 SPRING, Compression 2860169...

  • Page 24: Wheel & Tire Group

    Wheel & Tire Group Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...
  • Page 25 Wheel & Tire Group Item Part No Description 1731186 PIN, Klik .313 x 1.97 1679697 PIN, Klik 1/4 x 1-3/4 1732935 WHEEL & TIRE ASSEMBLY, 15 x 5 L.H & R.H. 1723169 WHEEL & TIRE ASSEMBLY, 15 x 5 L.H. 1714235 WHEEL &...

  • Page 26: Decals Group

    Decals Group Manual No. 7006185 LARGE FRAME TWO STAGE TP 400-5286-IR-LF-N 2008 MODELS...

  • Page 27: Models 3

    1733057 DECAL, Danger Amputation Hazard 1727207 DECAL, Chute Warning DECAL, Opei Certified ANSI 1733193 DECAL, Snapper, Turtle 1734633 DECAL, Snapper 1428L, Stripe 1734632 DECAL, Snapper 1226L, Stripe 1734634 DECAL, Snapper 1530L, Stripe 1734635 DECAL, Snapper 1632L, Stripe 728183 DECAL, Over Adjustment of Friction Disc...
  • Page 30 Parts Manual for LARGE FRAME TWO STAGE SNOW THROWERS 26", 28", 30", & 32" 2008 MODELS IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs &...

This manual is also suitable for:

1695324L1226ex1695325L1428e1695328L1428ex ... Show all
