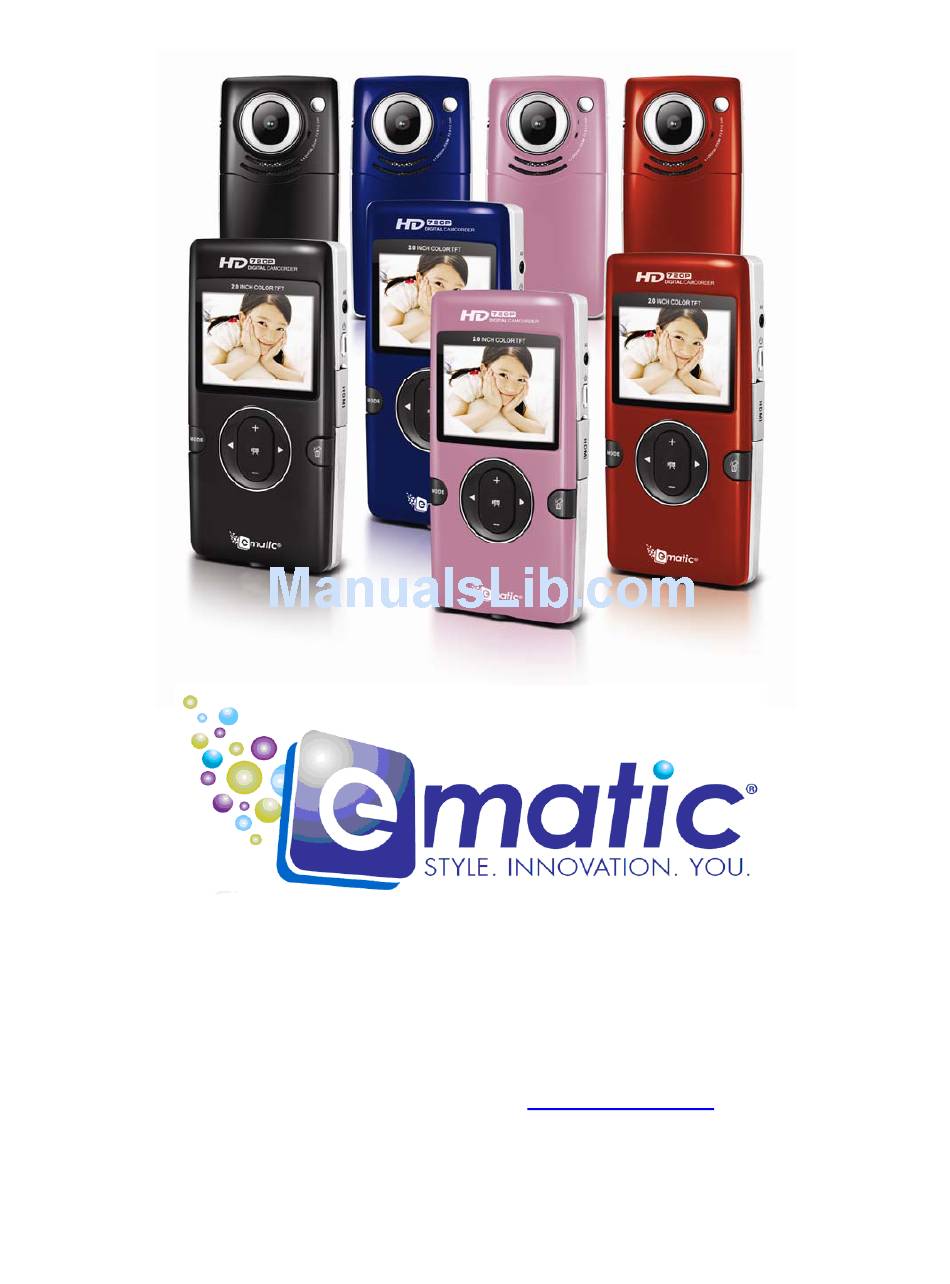

- Page 1 Series User Manual © 2010 Ematic • 1-888-968-1985 • http://www.Ematic.us Windows is a registered trademark of Microsoft Corporation. YouTube is a registered trademark of Google, Inc.
-
Page 2: Table Of Contents
Table of Contents 1.0 Introduction ....................... 3 Foreword......................3 Package Contents..................... 3 Warnings......................3 Maintenance and Care..................4 Storage ......................4 System Requirements..................5 Data Storage Devices ..................5 2.0 Getting Started ......................6 Components and Controls ................6 Installing the Battery ..................8 Charging the Battery .................. -
Page 3: Introduction
1.0 Introduction 1.1 Foreword Thank you for purchasing this digital video camera. Please read this manual carefully before using the product. This user manual contains the most current product information at the time of production. However, specifications and software updates are subject to change without notice. -
Page 4: Maintenance And Care
1.4 Maintenance and Care Use this product in an environment with a temperature between 0° - 40°C (32° - 104°F). Protect this product from moisture. To prevent exposing the digital video camera to condensation when moving from a colder place to a warmer place: Place this product in a sealed plastic bag. -
Page 5: System Requirements
1.6 System Requirements The following minimum system requirements are strongly recommended to fully optimize the function of this digital video camera: Operating System Microsoft Windows 2000, XP, Vista, Windows 7 Intel P111667 or of equal performance Memory 128 MB Sound and Display Card DirectX8 CD-ROM 4x speed Hard Disk... -
Page 6: Getting Started
2.0 Getting Started 2.1 Components and Controls Up Key Shutter/OK Key Mode Key Delete Key Right Key Left Key Down Key eCam User Manual Page 6 of 24... - Page 7 USB Connector Lens USB Switch TV Out Port Busy LED Microphone Power Key Speaker SD/MMC HDMI Out Port Card Slot Battery Cover Tripod Strap Holder eCam User Manual Page 7 of 24...
-
Page 8: Installing The Battery
2.2 Installing the Battery 1. Slide the battery cover downward to remove. 2. Insert the lithium battery, ensuring the polarity of the battery terminals are correctly aligned with the digital video camera. 3. Close the battery cover. WARNING: Lithium Polymer and Li-ion batteries are volatile and may explode causing fire, personal injury, and damage to property if misused, punctured, or defective. - Page 9 4. When charging is complete, safely disconnect the camera from the computer: a. In the system tray, click the green arrow ( ) to display a list of devices attached to the computer. b. Select the digital video camera from the list. c.
-
Page 10: Connecting To A Computer
2.4 Connecting to a Computer This digital video camera has two alternative ways of being connected to a PC: (1) by inserting its USB connector directly into a USB port on the computer, or (2) by connecting the USB connector on the camera to the USB port on the computer via the USB extension cable. -
Page 11: Using Data Storage Devices (Sd/Mmc/Sdhc Cards)
2.5 Using Data Storage Devices (SD/MMC/SDHC Cards) To install a data storage device: 1. Power OFF the digital video camera. 2. Verify the data storage device is positioned correctly according to the orientation marking on the camera housing. 3. Insert the data storage device in the card slot until the card latches into position. -
Page 12: Basic Operations
3.0 Basic Operations 3.1 Powering ON/OFF To power the camera ON: Press and hold the power key. To power the camera OFF: Press the power key. By default, if the camera is left idle for one minute is will turn itself OFF. However, the user can configure the camera to turn OFF after a different duration, or not at all, by changing the AUTO POWER OFF setting in the Setup Menu. -
Page 13: Recording Video
To access the setup menu: 1. Power ON the digital video camera. 2. Press the Delete Key to enter the setup menu. 3. Browse the options in the setup menu using the arrow keys. 4. Select options with the Shutter/Ok Key. Mode Selector Menu This digital video camera can record and playback both video clips and still photographs. -
Page 14: Recording Still Photographs
3.4 Recording Still Photographs 1. Ensure sufficient memory is available on the data storage device. NOTE: When no memory is available (i.e. the SD card is full or is locked), then the camera will not record. WARNING: Power OFF the camera before removing or inserting the data storage device. - Page 15 To watch recorded video via TV output: 1. Power OFF the digital video camera. 2. Insert the terminal of the audio/video cable into the TV output port of the camera. 3. Connect the opposite end of the audio/video cable to the TV: a.
- Page 16 To watch recorded video via HDMI output: 1. Power OFF the digital video camera. 2. Insert the terminal of the HDMI cable into the HDMI interface of the camera. 3. Connect the opposite end of the HDMI cable to HDMI port on an HDTV.
- Page 17 To view recorded still photographs: 1. Place the digital video camera in the PLAYBACK mode. 2. Press the LEFT ( ) or RIGHT ( ) arrow keys to scroll through the recorded data files. 3. When the desired file is located, press the OK/Shutter key ( ) to view the still photograph.
-
Page 18: Deleting Recorded Data
3.6 Deleting Recorded Data 1. Place the digital video camera in the PLAYBACK mode. 2. Press the LEFT ( ) or RIGHT ( ) arrow keys to scroll through the recorded data files. 3. When the desired file is located, press the Delete key ( ) to enter the delete menu. -
Page 19: Editing Recorded Data
4.0 Editing Recorded Data 4.1 Installing Xvid Codec 1. Place the included CD into the computer’’s disc drive. NOTE: If the software installer does not launch automatically: a. Click Start > My Computer, and then click the drive corresponding to the disc drive. b. -
Page 20: Installing Arcsoft Mediaimpression
4.2 Installing ArcSoft MediaImpression 1. Place the included CD into the computer’’s disc drive. NOTE: If the software installer does not launch automatically: a. Click Start > My Computer, and then click the drive corresponding to the disc drive. b. Double click autorun.exe to launch the software installer. 2. -
Page 21: Using Arcsoft Mediaimpression
4.3 Using ArcSoft MediaImpression 1. Start ArcSoft MediaImpression: Double-click the MediaImpression icon ( ) on the desktop. -OR- Click Start > Programs > ArcSoft MediaImpression > MediaImpression. 2. From the MediaImpression main menu, select ““Import””. 3. From the import window, select the digital video camera storage location from the drop-down menu. - Page 22 5. Select the desired video file. 6. Click ““import”” to store the selected file in the output location. 7. Click ““Go to Start Page”” to return to the main screen. eCam User Manual Page 22 of 24...
-
Page 23: Posting Media To Youtube
4.4 Posting Media to YouTube 1. From the MediaImpression main menu, click ““Video”” or ““All Media”” to access the ““YouTube”” function. 2. Select the desired file. 3. Click ““Upload to YouTube.”” 4. Enter login information for YouTube to complete the execution of the upload. eCam User Manual Page 23 of 24... -
Page 24: Product Specifications
5.0 Product Specifications Image Sensor 1.3 Mega Pixels Function Mode Record video, Record still photo, Playback, Mobile Disk Lens F2.8, f = 3.1mm Focus Range 120cm ~ infinite Digital Focusing 4X Shutter Electronic LCD Display 2.0 inch TFT Display Video: HD (1280 x 720), VGA (640 x 480) Resolution Still Photo: 5M (2592 x 1944), 3M (2048 x 1536), 1.3M (1280 x 960) White Balance...
